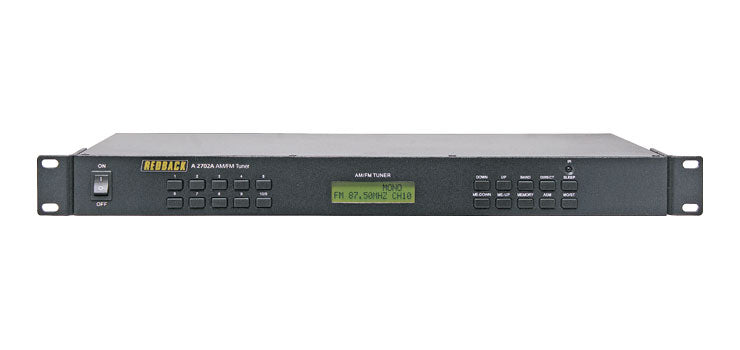

AM/FM Remote Control Analogue Stereo Tuner A2702A

SKU: 9321758156773


The A 2702A features IR remote control operation. It utilises Phase Locked Loop (PLL) synthesised circuitry to ensure excellent frequency stability. The memory function enables pre-setting of up to 30 FM and 10 AM stations. At just 44mm in height it is suitable for 1 unit rack mounting. Dimensions 482W x 185D x 44H mm.

Requires 2 x AAA batteries for remote (sold separately).

AM Band extends to 1710MHz. Normal tuners only extend to 1620MHz. Great for picking up niche stations

Digital processing with PLL synthesised tuning.
Preset memories: 10 AM, 30 FM
Input: FM 75Ω unbalanced antenna terminals, AM loop antenna terminals
Output: RCA stereo audio
Screen: 2x16 character liquid crystal display (LCD)
Power supply: 230V ac
Power consumption: 50VA
Weight: 2.35kg
Dimensions: 482W x 185D x 44H mm

Electrical Performance FM Band
Frequency range: 87.5-108MHz
Sensitivity: 10µV EMF
AM suppression: 38dB
Adjacent channel selectivity: 50dB
Image rejection: 45dB
Audio stereo separation: 35dB
Audio output voltage: 400mV RMS
Audio signal to noise ratio: 55dB
Audio total harmonic distortion: 1%
FM step frequency: 50kHz

Electrical Performance AM Band
Sensitivity: 52µV EMF
Frequency range: 522-1710MHz
AM step frequency: 9kHz
