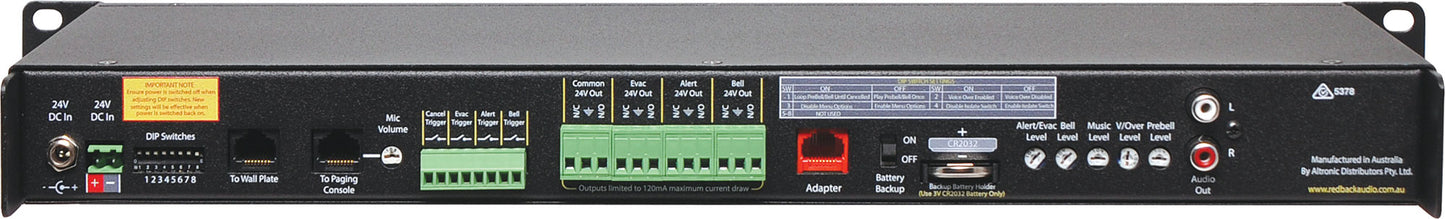

Fire Evacuation 24 Hour 7 Day Timer With Evac Tone Generator A4500C

A weekly timer and evacuation controller all housed in a convenient 1RU rack mount chassis. A total of 50 “event” switching times are available through the timing functions. Each event can be set to turn on from 1 sec up to 24 hours. When a timing event is activated, an MP3 audio file will be played with 99 playback folders to choose from, which include bell, pre-bell, music and folders 5-99 on the included micro SD card. If more than one MP3 is in a folder the MP3 will be random played. Timing events can be programmed on the unit or with included PC software.

The evacuation controller is designed around industry standard building emergency alert/evacuate requirements. When connected to a paging system amplifier, building occupants can be alerted and/or evacuated in the event of an emergency e.g. fire, gas leak, bomb scare, earthquake. Provision for connection to A4660 paging console for emergency paging and remote activation of alert/evac and chime functions. Remote activation is also available via a suite of wall plates which can be wired back to the controller using Cat5 UTP cabling.

The units timer and bell times can be remotely managed over a local area network (LAN) or virtual private network (VPN) using A 4498 ethernet adaptor pack.

Features

• MP3 bell, prebell & music timing outputs.
• Emergency tones conform to AS 1670.4.
• Random play for prebell and music.
• Easy PC based timing event setup.
• Remote triggering of alert, evac and bell.
• Provision for connection to A4660 touchscreen paging console.
• Switched 24VDC out for bell, alert/evac.
• Pluggable screw terminal connections.
• Auxiliary level output.
• Battery backup of current time.
• 24V DC operation.
• Standard 1U 19” rack mount case.
• Suitable for any amp with an aux input.
• 10 Year Warranty
• Australian Designed and Manufactured
• Includes Power Supply

Changes to previous A4500.
This unit supersedes the A 4500B model. This is supplied with PC software which allows the user to select up to 99 folders for Audio playback as timing events.

With this new model MP3 files cannot be copied directly to the SD card. They have to be transferred using the PC software. The software also makes it possible to access the timer via a network connection using the A4498 network connection pack.
