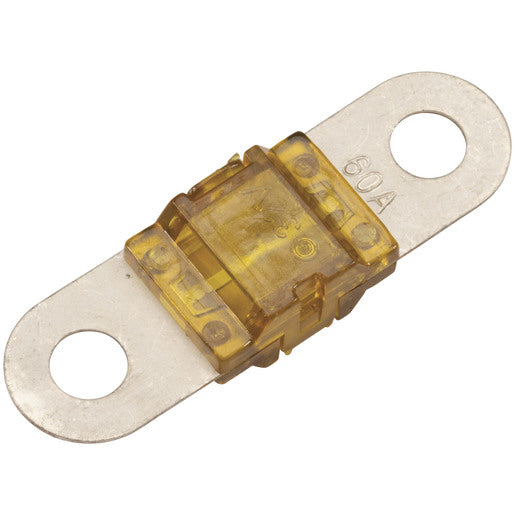

MIDI fuses are becoming very popular for high power automotive installations. Baby brother of the ANL fuse, these fuses are suitable for a variety of applications ranging from portable fridges and lighting, right up to dual battery systems with the appropriate rated fuse.
Features:
- Rated up to maximum 32VDC
- For use with SZ2079 200A 32V MIDI Inline Bolt Down Fuse Holder
- Available in 10 current ratings: 30A, 40A, 50A, 60A,70A, 80A, 100A, 125A, 150A and 200A.
Specifications
| Fuse Type : Midi AMI |
| Case Material : Plastic |
| Blow Speed : Slow blow |
| Colour Coded : Yellow |
| Length : 42mm |
| Width : 12mm |
| Depth : 0.4mm |
| Packaged Volume : 0.11l |
| Packaged Weight : 0.01kg |
| Packaged Length : 10.4cm |
| Packaged Width : 9.9cm |
| Packaged Height : 1.1cm |
