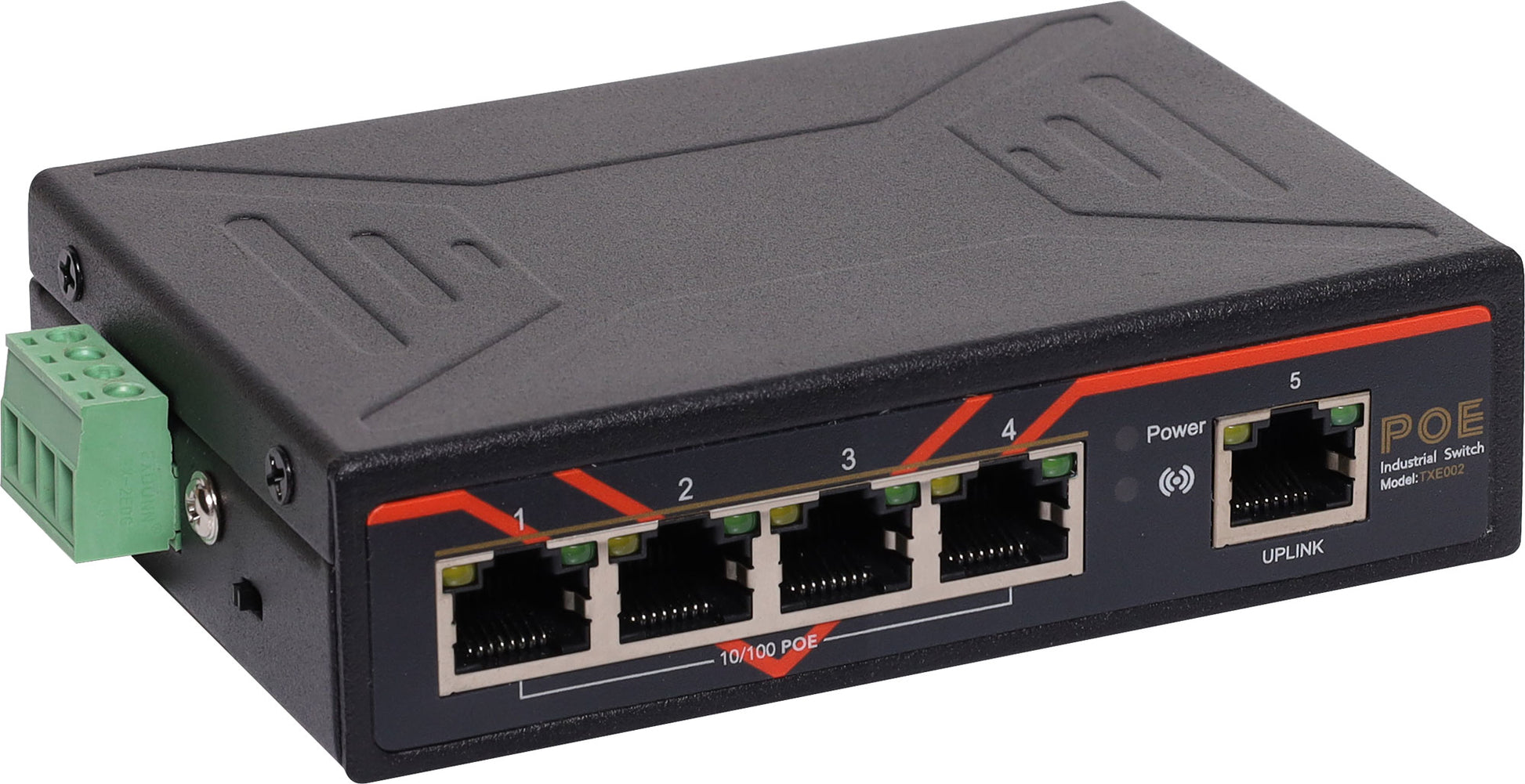

5 Port 10/100m Poe Din Rail Ethernet Switch DR4191
5 Port 10/100m Poe Din Rail Ethernet Switch DR4191
Regular price
$119.00
Regular price
Sale price
$119.00
Unit price
per
Taxes included.
Couldn't load pickup availability

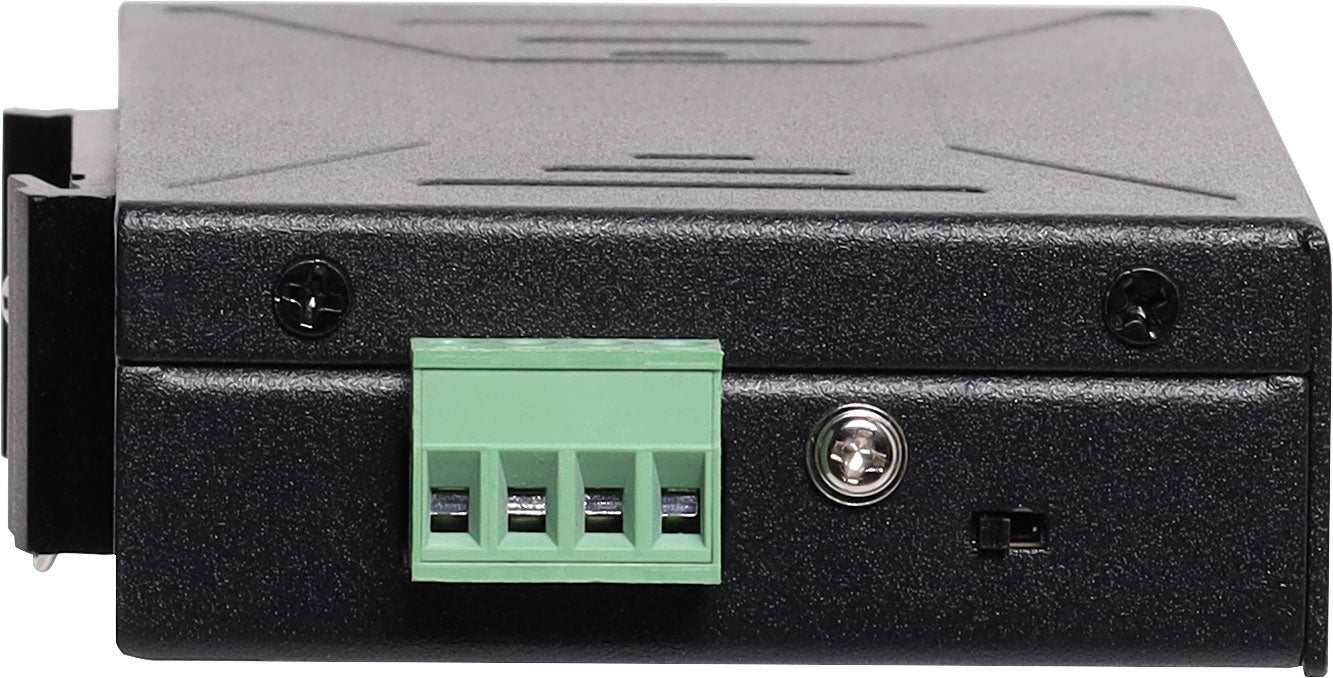

A compact 4 port (+uplink port) 100Mbps switch for use where DIN rail mounting is required in industrial data/automation. Powered by 48V DC input (screw terminal). It's fully compatible with PoE devices, such as IP cameras, access points, and IP phones. Featuring five 10/100Mbps auto-sensing RJ45 ports, with four ports supporting PoE power (Ports 1–4) that comply with IEEE802.3af and IEEE802.3at standards.
Features

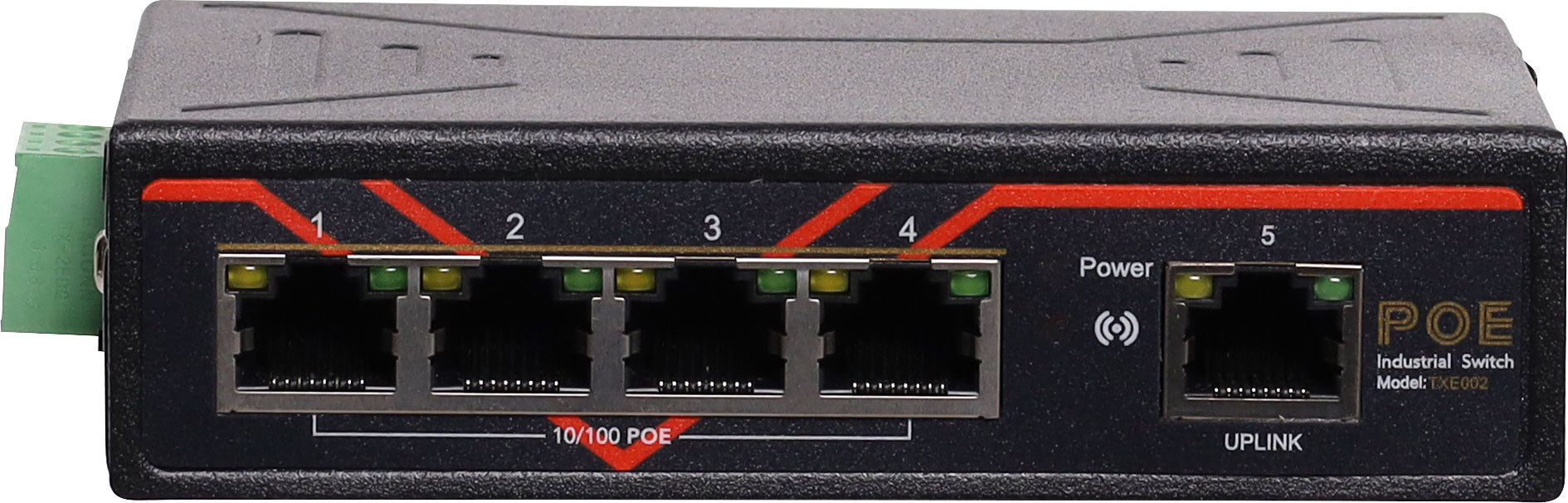

- Five 10/100Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports
- Supports PoE power
- Compact design

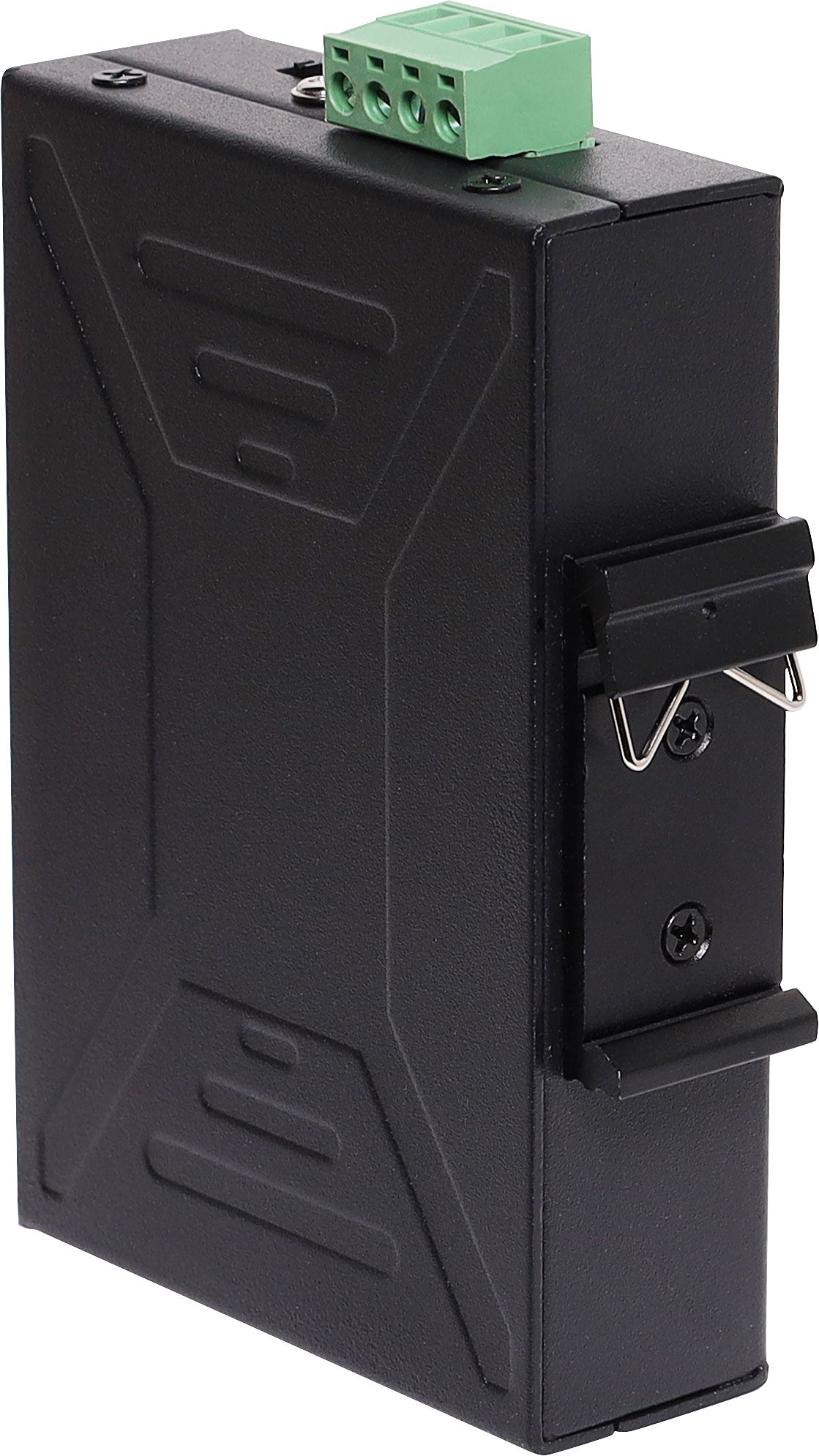

- DIN rail mountable
- Delivers consistent network speed and power output for connected devices.
Specifications
- Chipset: IP175GHI+IP804A
- Port Number: 1 port uplink and 4port POE
- Standard: IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3az、IEEE 802.3af、IEEE 802.3at
- Network media: 10Base-T, cat3 or above UTP, 100Base-Tx, cat5 UTP
- Data rate: 10/100M Forwarding rate 10 Mbps / 14,880 pps, 100 Mbps / 148,800 pps
- LED Indicator: 10/100Mbps(Link/Act, speed), Power, POE, 10M Indicator
- Dimension: 118 x 80 x 30mm
- Power Input: DC48V-54V
- Power Consumption: Max1.5W
- Operating Temperature: -40℃ to 85℃
- Relative Humidity: 10%-90%(non-condensing)
- Storage Temperature: -40℃ to 85℃
- Relative Humidity: 5%-90%(non-condensing)
- Other function: 10M switch
