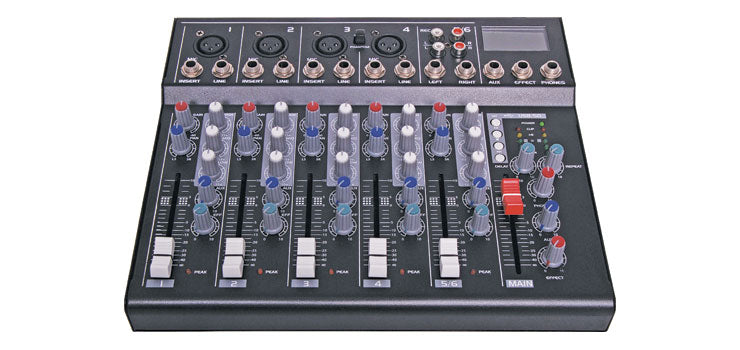

This compact high performance desk mixer is ideal for live/stage sound mixing in small applications such as theatre, bands, function centres and venues. It offers added flexibility for audio playback with a USB and SD card input on the rear panel. Playback is controlled via the transport controls located next to the dual VU meters.
Channels 1 to 4 are identical and feature:
- balanced XLR, unbalanced 6.35mm and insert input for external effects
- separate high, mid, low frequency controls
- gain, effects level and left/right pan.
Channels 5 and 6 are combined on the single fader and feature the same adjustments. Dual 6.35mm outputs (L & R) are provided for connection to amplifier. Includes power supply
Important: USB/SD & channel 5/6 are a combined input, if used simultaneously, this will result in a mixed output
Features
- All inputs top mounted for easy access
- Dual 6.35mm TRS outputs
- LED VU meters
- USB/SD card MP3 playback with transport controls
- Repeat and delay effects
- External effects send & return
- Phones/monitor output & level
- Selectable phantom power
- Gain, monitor, effect, pan, high, mid & low levels controls on all channels
- Record RCA output
- LCD readout for USB playback
Specifications
- Mic: +14dB to +60dB (120dB SNR)
- Line: -6dB to +38dB (95dB SNR)
- Stereo: -8dB to 15dB (96dB SNR)
- Equalisation
- Low: 50Hz ±15dB
- Mid: 700Hz ±15dB
- High: 10KHz ±dB
- Main outputs: +28dB bal / +22dB unbal.
- Frequency response: 20Hz - 20KHz
- Power: 12V ac
- Dimensions: 270W x 235D x 68Hmm
- Weight: 2kg
