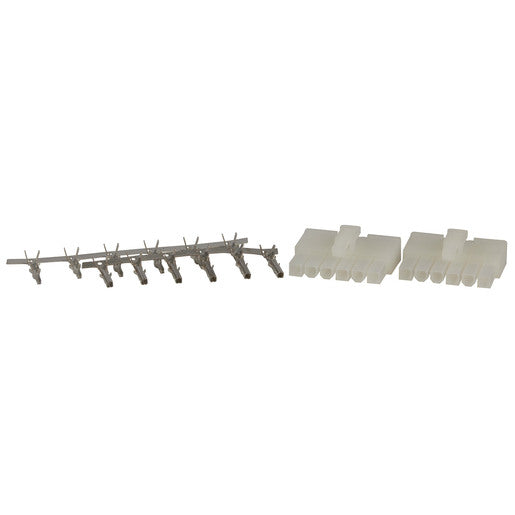

Miniature Nylon MOLEX-Type Connector 6 Pin PP2025

These connectors are suitable for high current/high density, wire-to-wire or wire-to-board applications. They are suitable for both power and signal connections.

Features:

• Fully isolated terminals
• Positive housing locks
• Four point of contact for reliability
• Low engagement force terminals

Applications:

• Security and alarms
• Vending and gaming machines
• White goods
• Production equipment
• Broadcast equipment
• Telecom infrastructure

PP2025 - 6 Pin Miniature Nylon MOLEX-Type Connector
* 6 x male and 6 x female pins supplied

Specifications

AC current rating : 5A

AC Voltage rating : 350V

DC current rating : 5A

DC Voltage : 350V

Mounting Method : Line

Packaged Volume : 0.07l

Packaged Weight : 0.01kg

Packaged Length : 7.5cm

Packaged Width : 9cm

Packaged Height : 1cm

Plug or Socket Type : 6 Pin Flat Mini Molex

Device : Plug and Socket Set

Attachment Method : Crimp

Pack Quantity : 1pc

Contacts / Pins : 6pc

Case Material : Nylon

Contact Material : Nickel Plated Copper

Locking Function : Clip

Colour Coded : White
