Access Control Fail Secure 12V DC Door Strike S5387A

Door strike for controlling building access points. Reversible design suits left or right hand hinged doors. Slimline design makes it suitable for most metal door frames. Designed to be powered momentarily ie: long enough to “buzz” somebody into a premises. Power must not be constantly applied to the strike. Operating current: 400mA @ 12V DC. Locked in power failure for access doors.

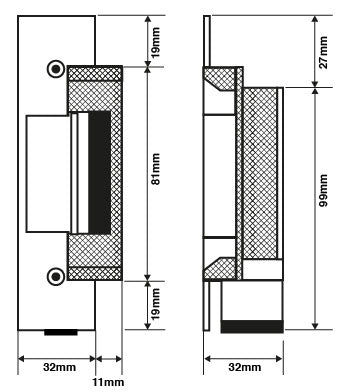

124H x 32W x 38Dmm.

Suits metal door frames.

Features

• Symmetrically-shaped. Reversible for right-hand or left-hand doors.
• Shallow design for use with most doors.
• Powered by a solenoid, not a buzzer coil.
• Stainless steel lip (keeper) for strength and long life.
• Jaw strength: 2000-lb (900kg)

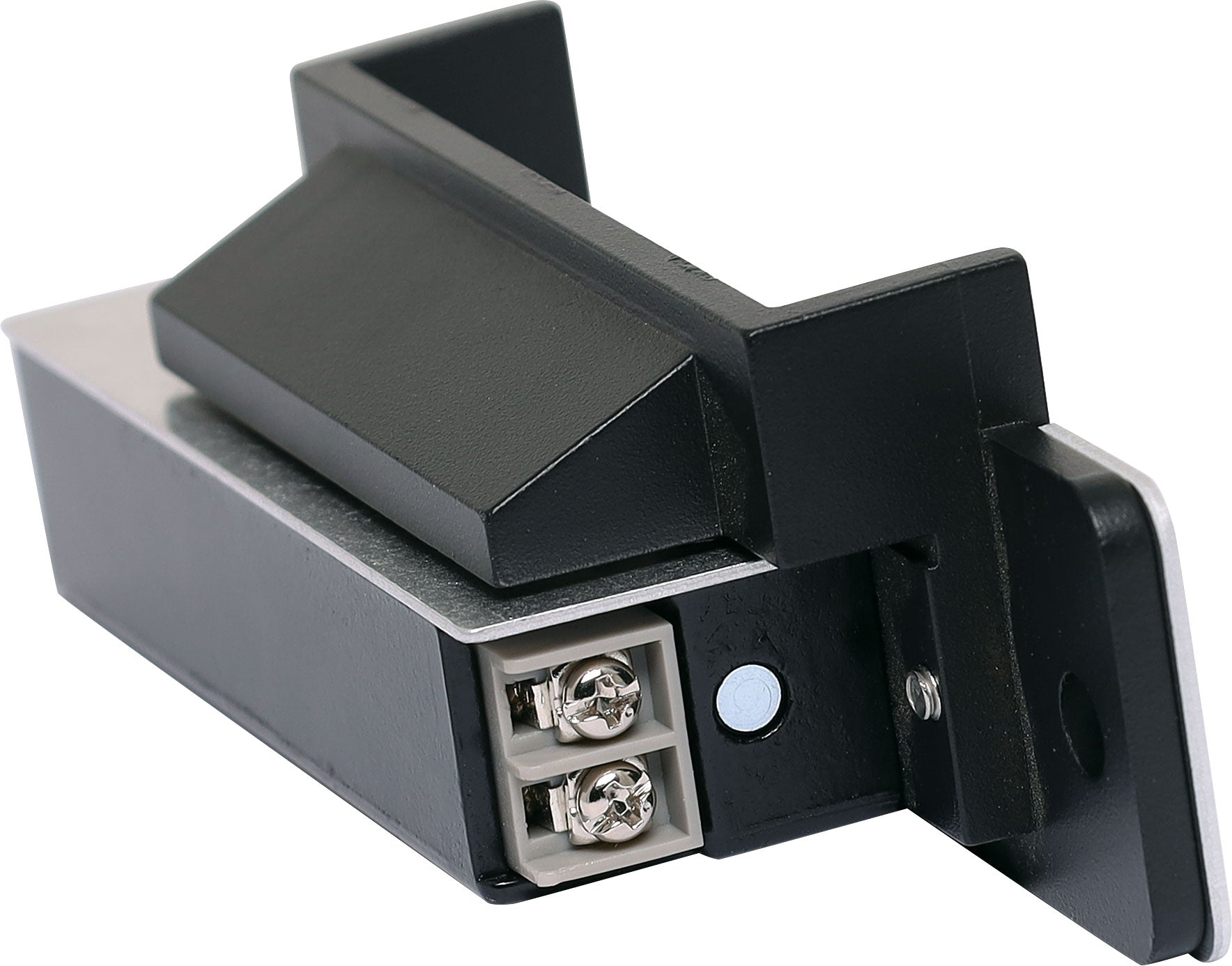

• Non-polarised connection. Wires can be reversed.
• Tested to 1 million cycles.
• Fail-Secure circuit:
• Door remains locked when power is disconnected.
• Perfect for entrance door installations.

Data Sheet
