Alarm Accessories Passive Infra-Red (PIR) 360° In-Ceiling Detector S5315
Alarm Accessories Passive Infra-Red (PIR) 360° In-Ceiling Detector S5315
Regular price
$65.00
Regular price
Sale price
$65.00
Unit price
per
Taxes included.
Couldn't load pickup availability

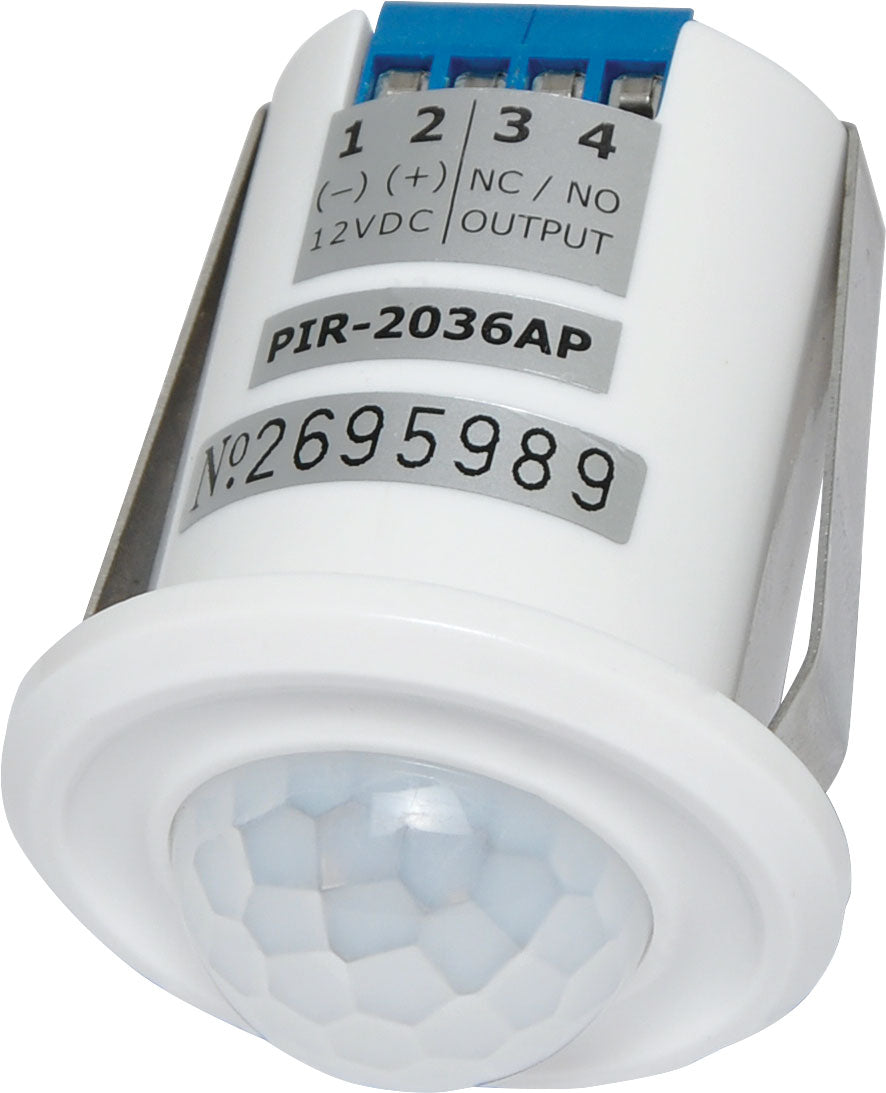

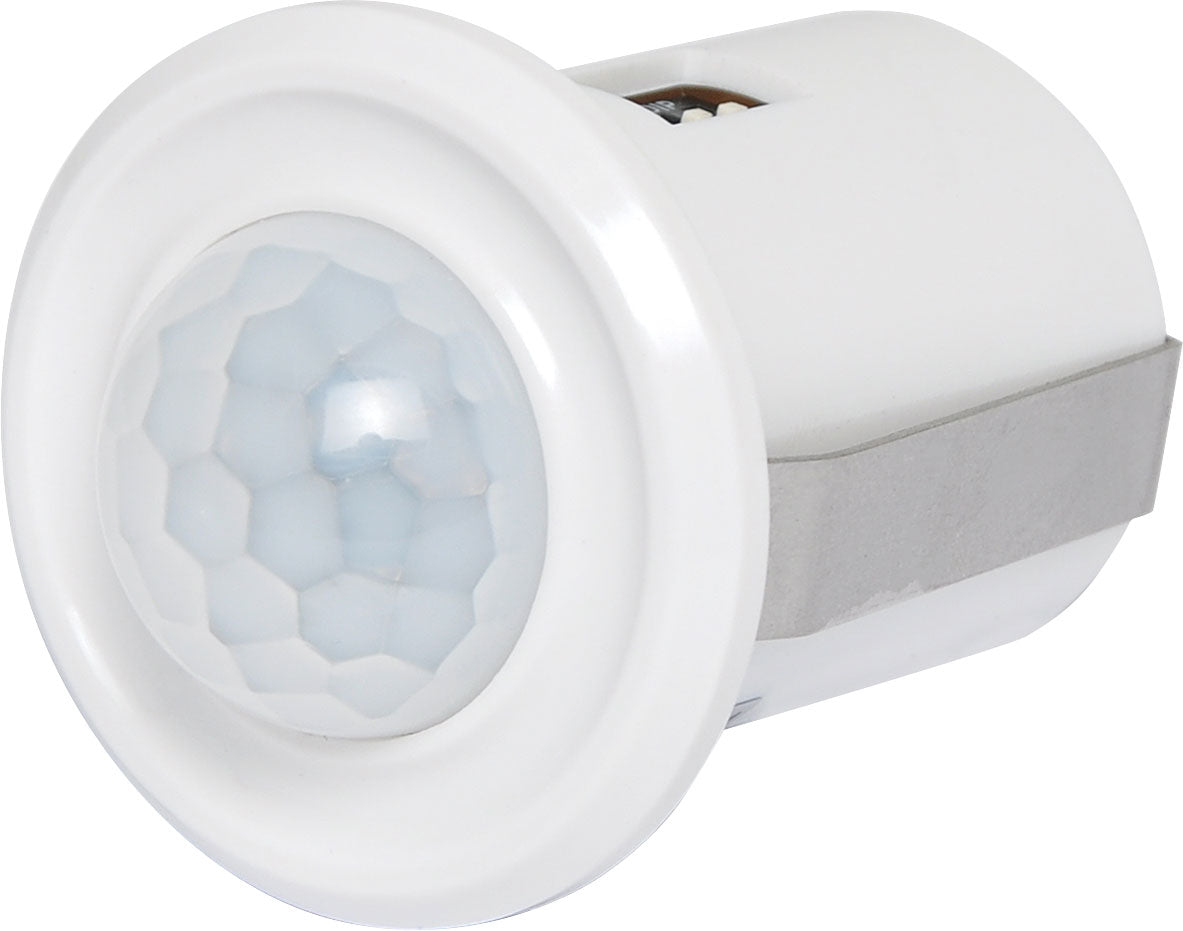

An ultra compact PIR motion detection unit suitable for installation directly into the ceiling. 120° beam provides 8 metres of conical detection coverage when mounted on the typical 2.4-3m ceiling. 12V DC input. Mounting hole size: 31mm. Dimensions: 40Ø x 52mm.
Features
- High-Quality Low Noise Quad-Element Pyro-Sensor with 6-14μM Spectral
- Alternate Polarity Single / Dual Pulse Counting Signal Processor
- Security Control Logics Integrated in Proprietary MCU

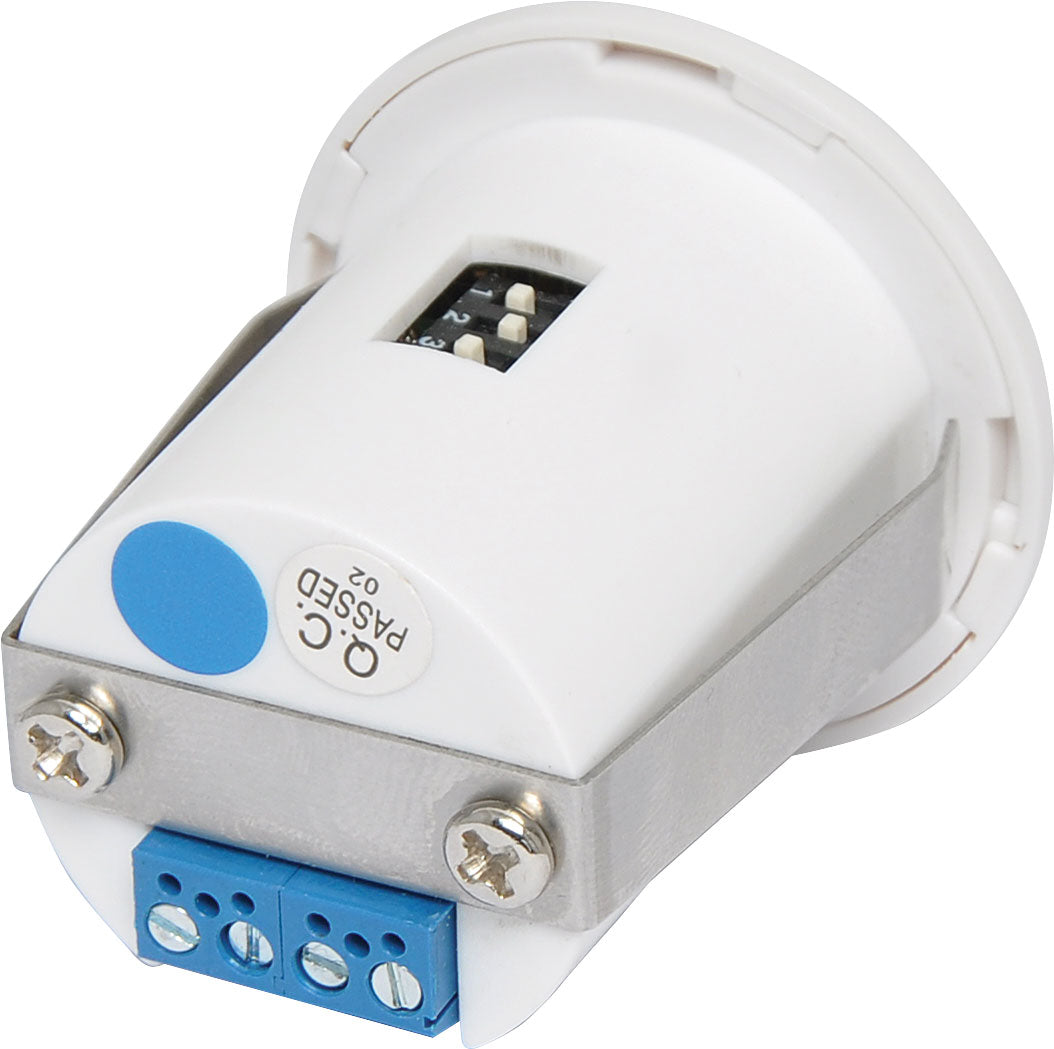

- On-Board DIP Switch for Feature Settings
- Walk-Test LED Selectable for ON, OFF, or 30-Minute Auto OFF after Power-UP
- On-Board Terminal Block for External Wiring Connections
- (N.C.) / (N.O.) Alarm Output Dry Contact in Series with 10 Ohm Resistor
- Flush-Mount on Ceiling without Screw
Specifications
- Operation Voltage: 12VDC Nominal, 8-16VDC
- Current Consumption: 15mA Typical at 12VDC
- Power-up Delay: 2 Minutes with LED Indication
- Detection Range: 6/8M at 25°C
- Alarm Output Time: 3 Seconds
- Operation Temperature : -10°C C to 55°C
- Relative Humidity: 95% Non-condensing
- Weight: 30gm net
