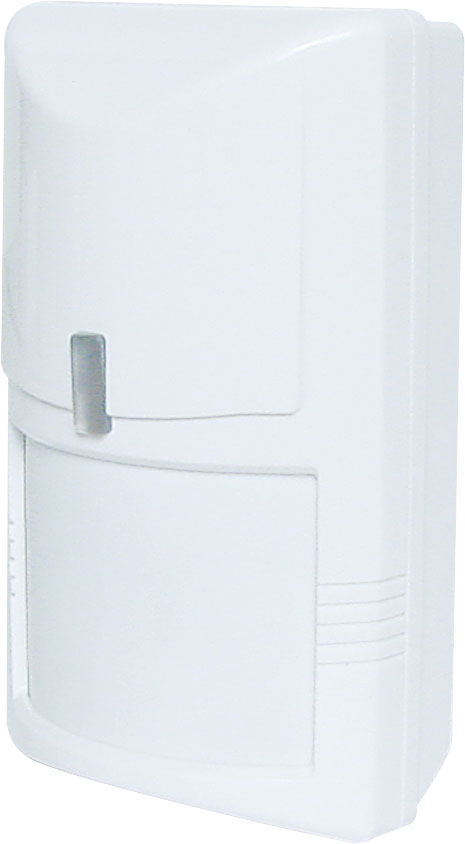

Easy to install PIR with dual look down detection. Features excellent temperature compensation and selectable pulse count. Its stylish contoured shape virtually disappears once installed into the corner of any room.
Vertical range is adjustable and a high quality noise reduction circuit ensures reliable detection. Superior RFI/EMI immunity.
Specifications
- Power Supply: 9-16V
- Current Drain: NO 8mA @ 12V DC
- Alarm Period: 1.5-2.5 sec
- Alarm Output: NC/NO, 30VDC, 0.2A
- Pulse4 Count: 2/3 selectable
- RFI Immunity: 25V/m average
- Tamper: NC, open trigger
- Temperature Range: -20°C to 60°C
- Dimensions: 100 x 60 x 42mm
