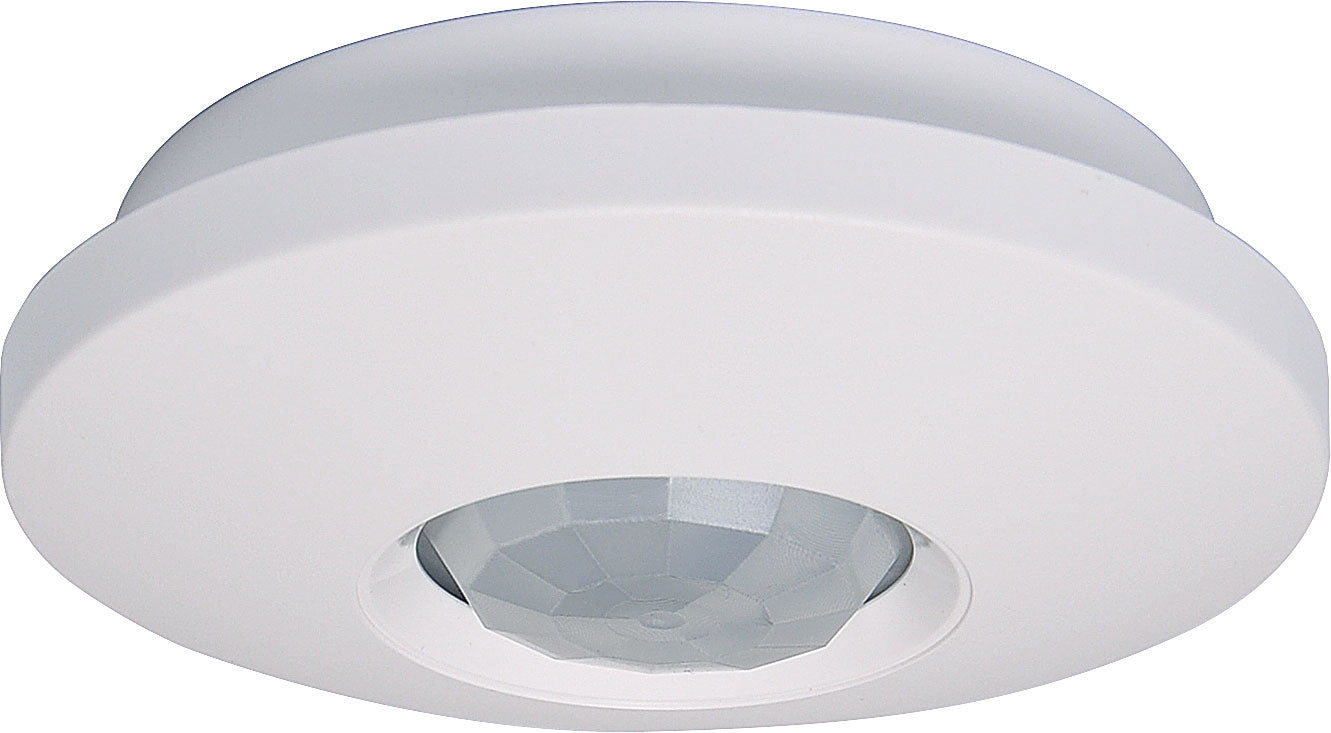

The PIR 360° Quantum Detector is a unique motion detector for complete and reliable 360° coverage designed for the latest generation of Ness control panels. Installed in rooms or in hallways, it provides 12 metre diameter coverage at floor level when installed on a standard 2.4 metre ceiling. It protects you by detecting intruders body temperature using infra-red technology. Its discrete in size and has been designed for a range of interiors. Has a detection range of 12m.
Features
- Detects motion
- 360° coverage
- Tamper Protection
- High R.F. and E.S.D. immunity
- High white light immunity
- Easy to install
- 12m Detection Range
Specifications
- Mounting Height: 2.4 m for best coverage
- Coverage: 12m x 12m pattern at floor level
- PIR Sensor: Dual element pyroelectric
- Range Select: Selectable High/Low
- Pulse Count: Selectable 1–2 or 3–4.
- Visual Display: Red Alarm LED
- Operating Voltage: 9 - 15 VDC
- Dimensions: 102D x 30H mm
- Alarm Period: 5 seconds
- Warm up period: 30 seconds
- Current Draw: 15mA
- Alarm Output: Normally closed relay, dry contacts. Max. 0.5A@24V
- R.F.I. Immunity: > 15V/m @ 10-1000MHz
- Tamper Output: Normally closed dry contacts
