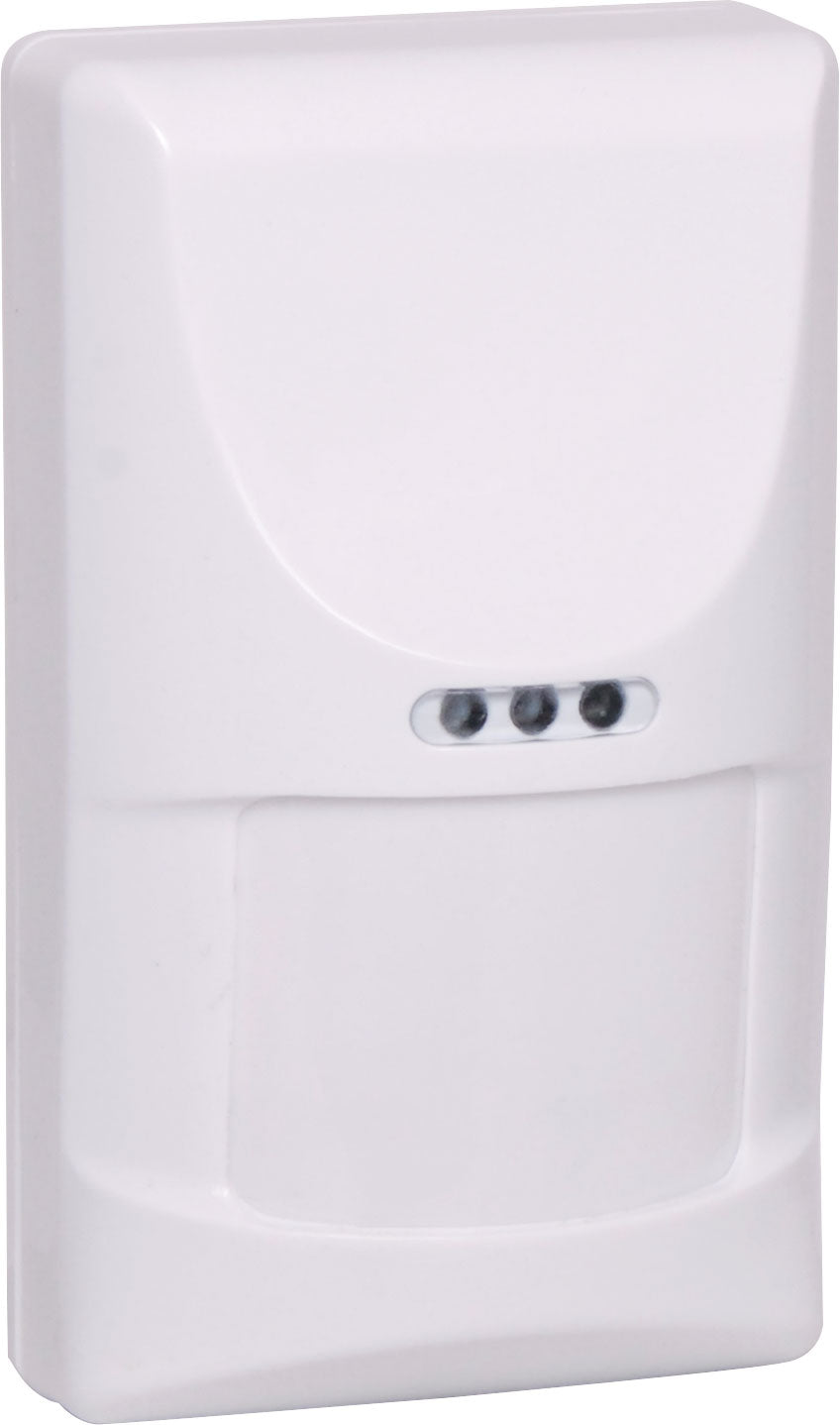

These compact, easy to install, passive infra red detectors offer excellent movement detection for alarm systems at an affordable price. They feature NC or NO contact output (30V DC @ 0.2A max), 2/3 selectable pulse count and 12m detection range. An internal tamper switch ensures units cannot be deactivated by intruders.
Features
- Includes swivel wall bracket
- Low standby current - only 5mA
- NC/NO alarm contacts
- 12x12m 110° detection range
- 9-16V DC operation
- 2/3 selectable pulse count
- Walk test LED
- Compact size, 109x65x46mm
Specifications
- Infrared Sensor: Dual element
- Power supply: 9-16V DC (12V DC Typical)
- Detection range: 12 x 12 Meter 110
- Current Drain: NC:5mA, NO 15mA@12V DC
- Alarm Output: NC/NO 30V DC 200mA
- Alarm Period: 1.5-2.5 sec
- Pulse count: 2/3 Selectable
- Tamper Switch: NC
- Walk Test LED: Red LED, Can be disabled
- RFI Immunity: Ave:20V/m (10-1.000MHz)
- Detection Speed: 0.3-1.5m/sec
- Mounting Height: 2.2-2.4 meter Suggested 2.3 meters
- Humidity: 95% Rh
- Temperature: -20°C to 60°
- Dimensions: 109 x 65 x 4mm
