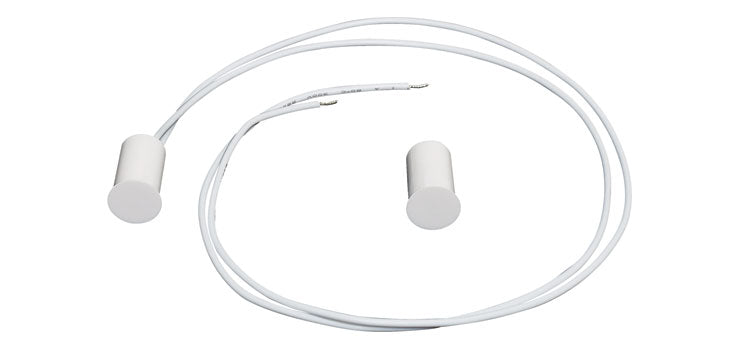

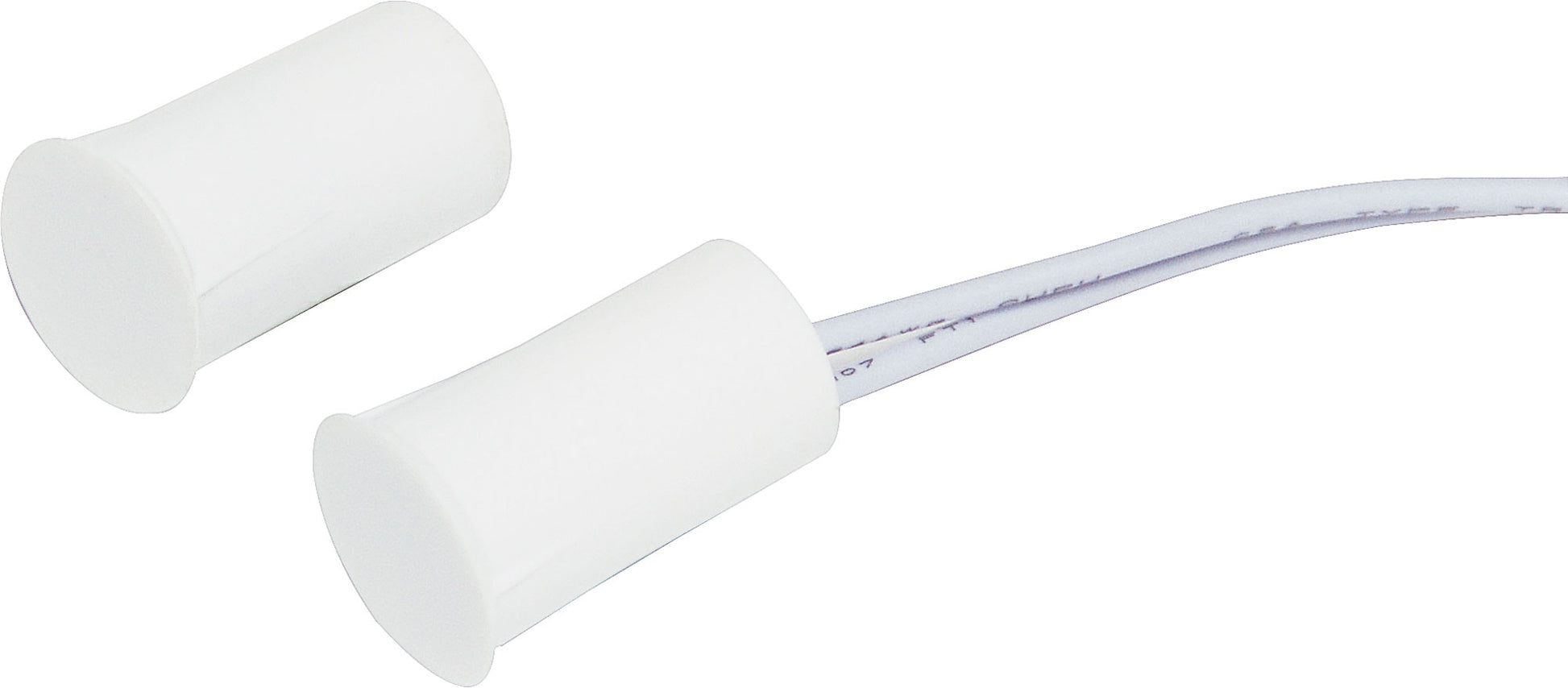

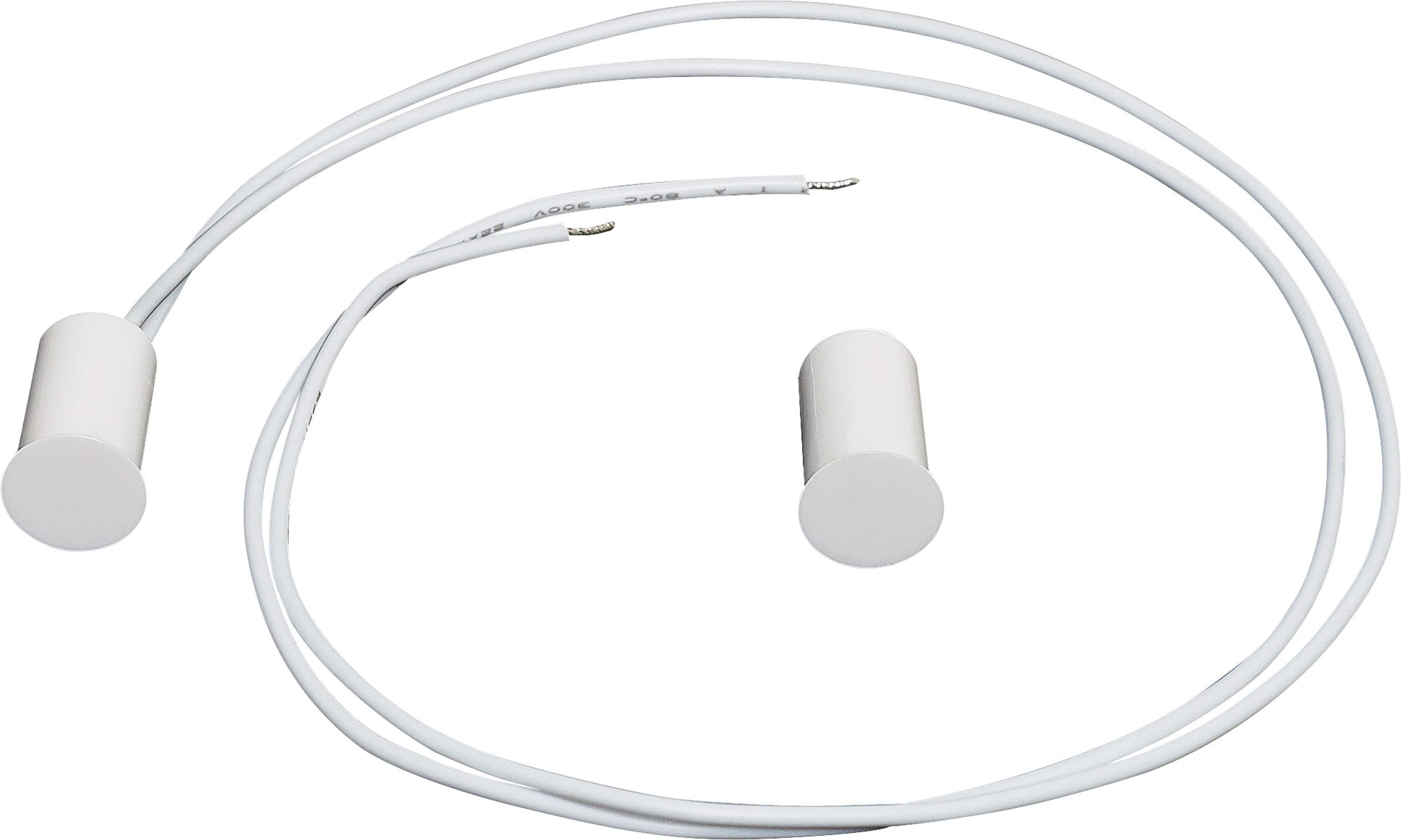

Alarm Accessory Wood Door Flush Mount Magnetic Reed Switch S5154C

Alarm Accessory Wood Door Flush Mount Magnetic Reed Switch S5154C

Regular price $5.70
Regular price Sale price $5.70
Sale Sold out
Taxes included.

A concealed magnetic reed switch designed for use with wooden door frames in security applications. Includes matching magnet. Press fit design. 9.5mm mounting hole. 12mm working distance. Normally closed (when next to magnet).

Specifications

  • Approved:CCC / CE / FCC / RoHS
  • Contact type:NC——Switch ON when magnet nearly
  • Operating gap:≥15mm (Undisturbed test)
  • Max. switching voltage:100V DC/AC
  • Max. switching current:0.5A
  • operating load:10W
  • Working temperature:-20~80℃
  • Working life:>100000 times
  • Connection type:350mm 1007/22# AWG
  • Material:ABS
  • Color:White / Brown
  • Packaging:20 sets/bag,1600 sets/ctn
  • G.W.:15KGS

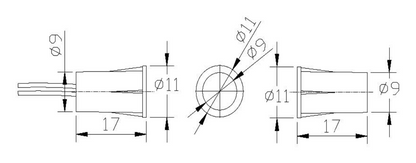

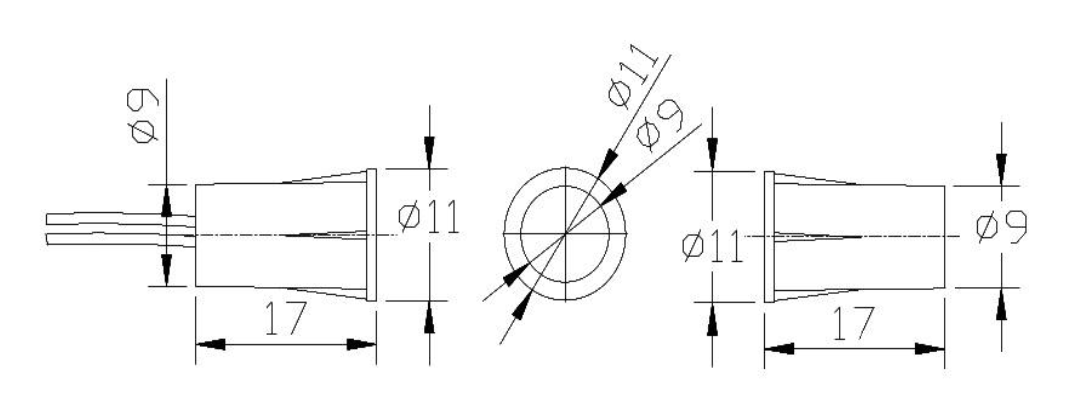

  • Dimensions (mm):refer to diagram
