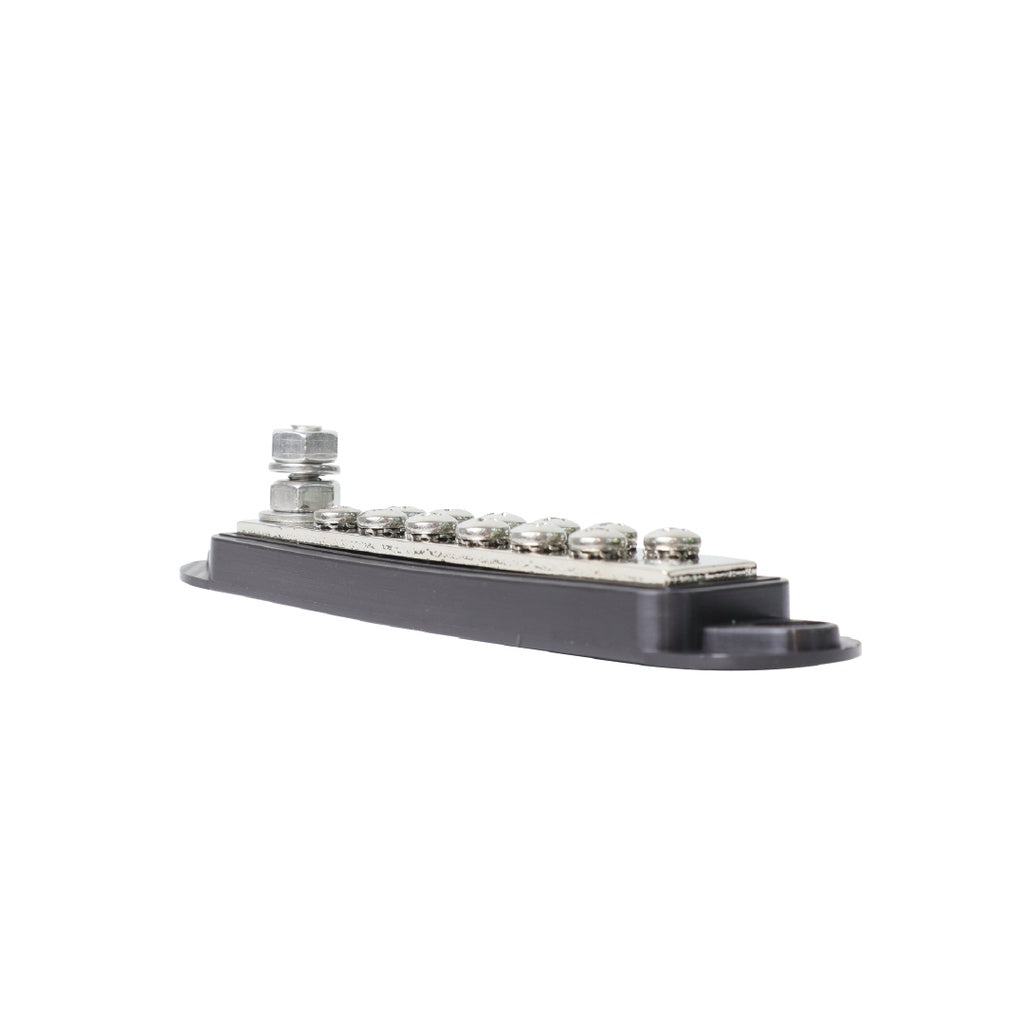

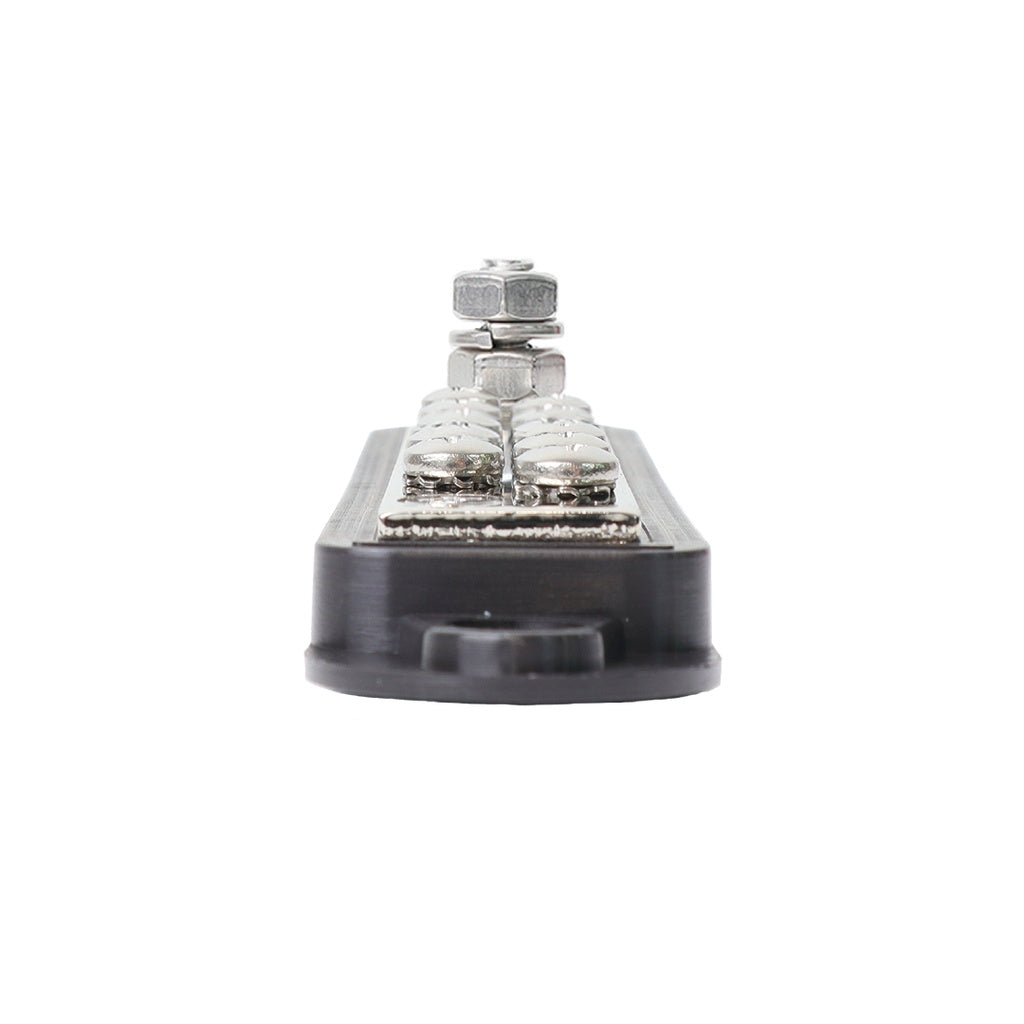

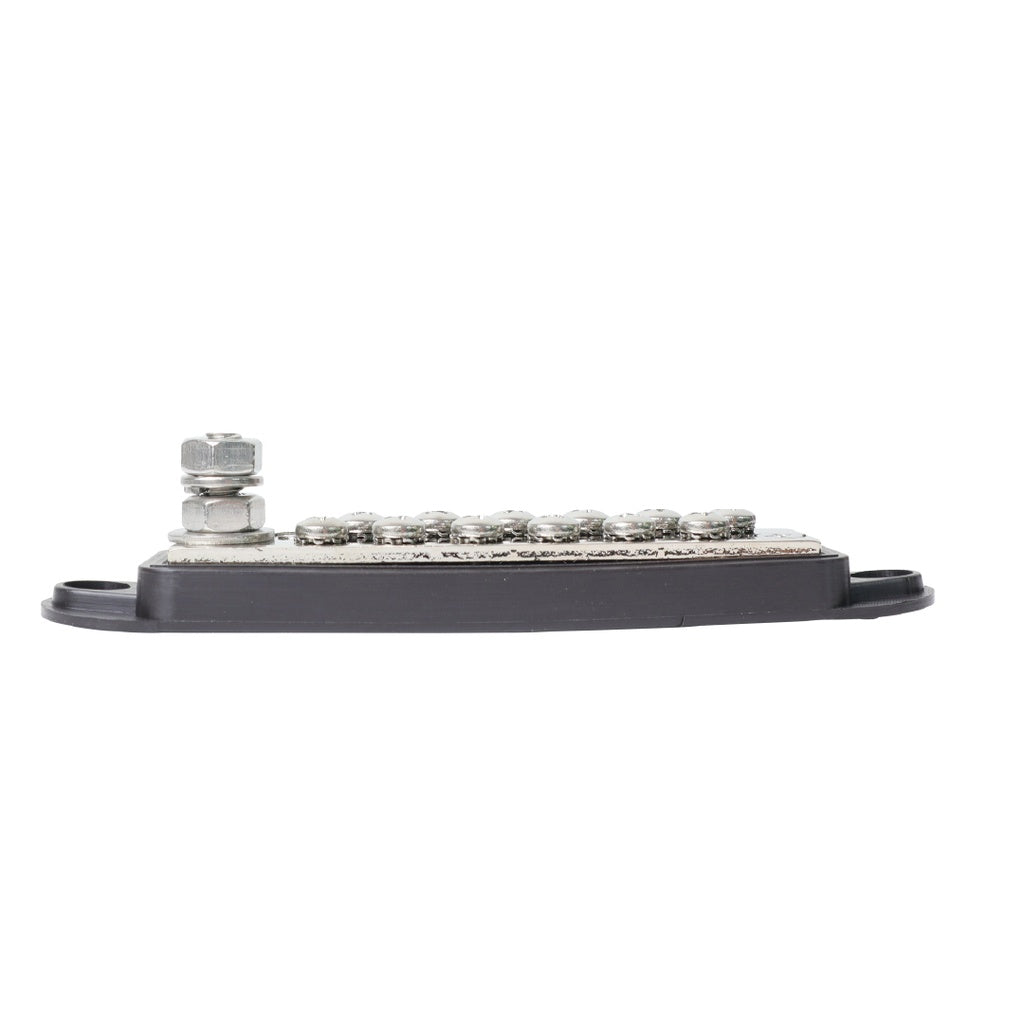

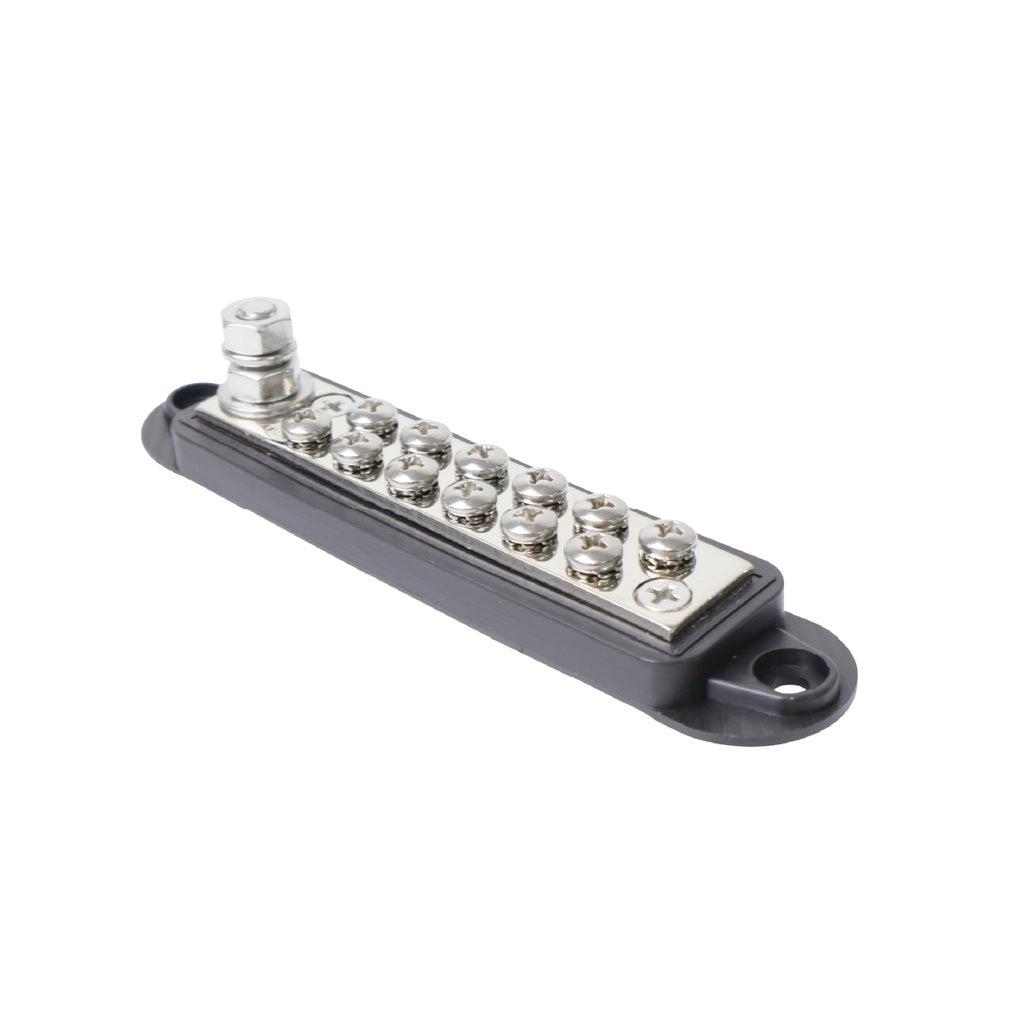

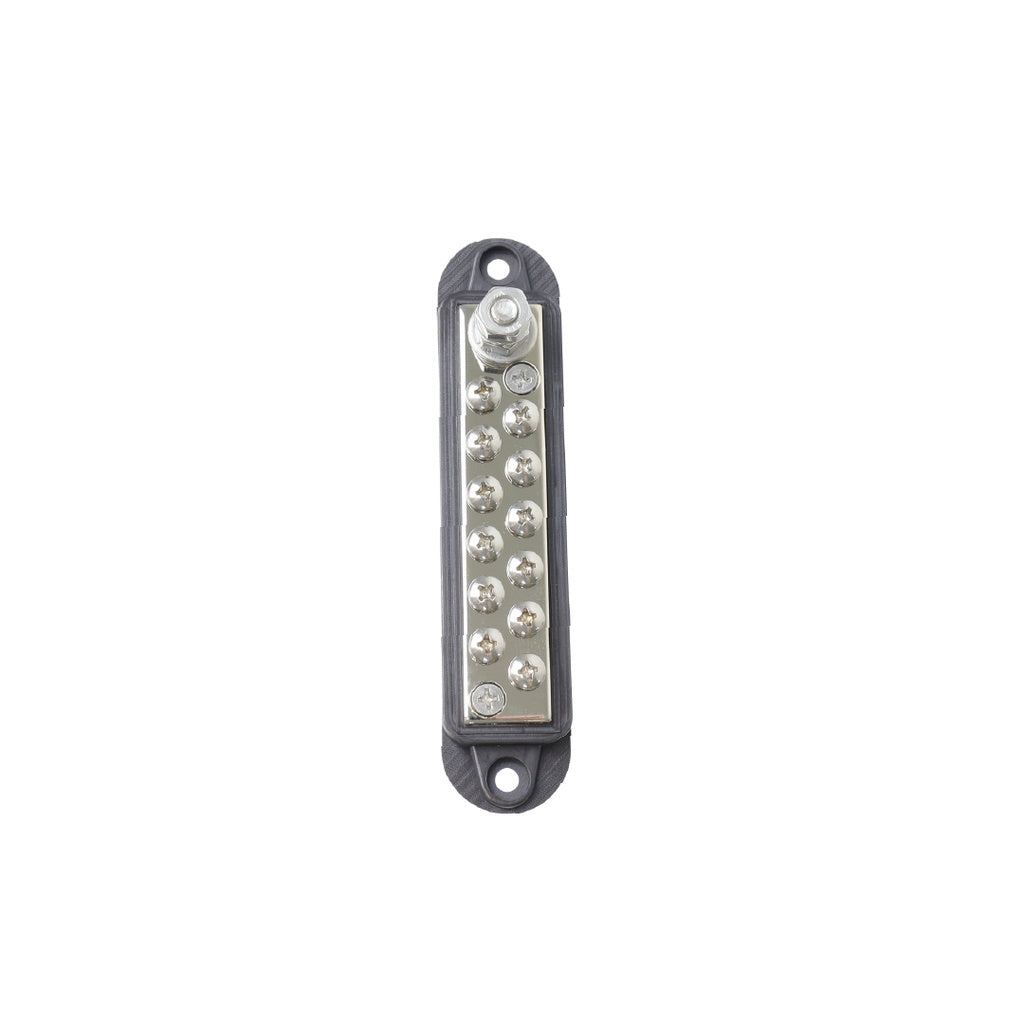

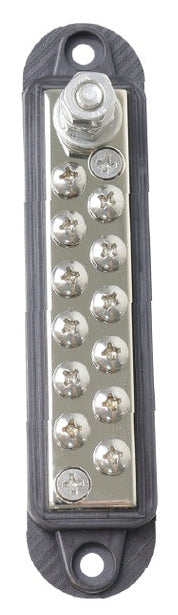

Alvolta 12 Point 180a Busbar ABB12B

Alvolta 12 Point 180a Busbar ABB12B

Regular price $29.95
Regular price Sale price $29.95
Sale Sold out
Taxes included.

Features:

  • 12 Connection Points
  • 180amp Continuous Current
  • Stainless Steel Terminal Posts
  • Stainless Steel Hex Nuts & Lock Washer
  • Glass-Filled Nylon Base
  • Cover Included

    Upgrade your off-grid adventures with Alvolta’s range of busbars. Designed to help distribute power, extend power connections and protect components and wiring. These busbars are used to consolidate multiple wires or feed multiple circuits, with moulded stainless steel studs to eliminate the need for a securing nut, which allows for excellent electrical contact. Alvolta’s exceptional range of busbars fills a void in the marketplace by providing high-quality, low-cost solutions.

    The Alvolta 12 Terminal 180A Busbar allows for up to 12 electrical connections, each running up to 15 amps of continuous power supply, allowing you to keep connected to your power source in even the most challenging conditions. Crafted from durable stainless steel, the Alvolta 12 Terminal Busbar is corrosion-resistant, making it the perfect tool for your long-lasting off-grid setup. The included cover ensures your busbar is always protected from dirt, dust, and other environmental elements.

    Get the reliable power you need with the Alvolta 12 Terminal 180A Busbar.

    Product Specifications


    Maximum Current Rating

    180A

    Terminal Current Rating

    15A Each

    Max. Voltage Rating

    48V

    Main Connection Stud Diameter

    6.4mm

    Connection Point Screw

    4.2mm

    Base Material

    Glass Fiber Reinforced Nylon

    Fixings Material

    Stainless Steel

    Busbar Contact Strip Material

    Brass

    Base Nut of Main Connector

    Tin-Plated Brass

    Colour

    Black

    Dimensions

    130 x 39 x 34mm
