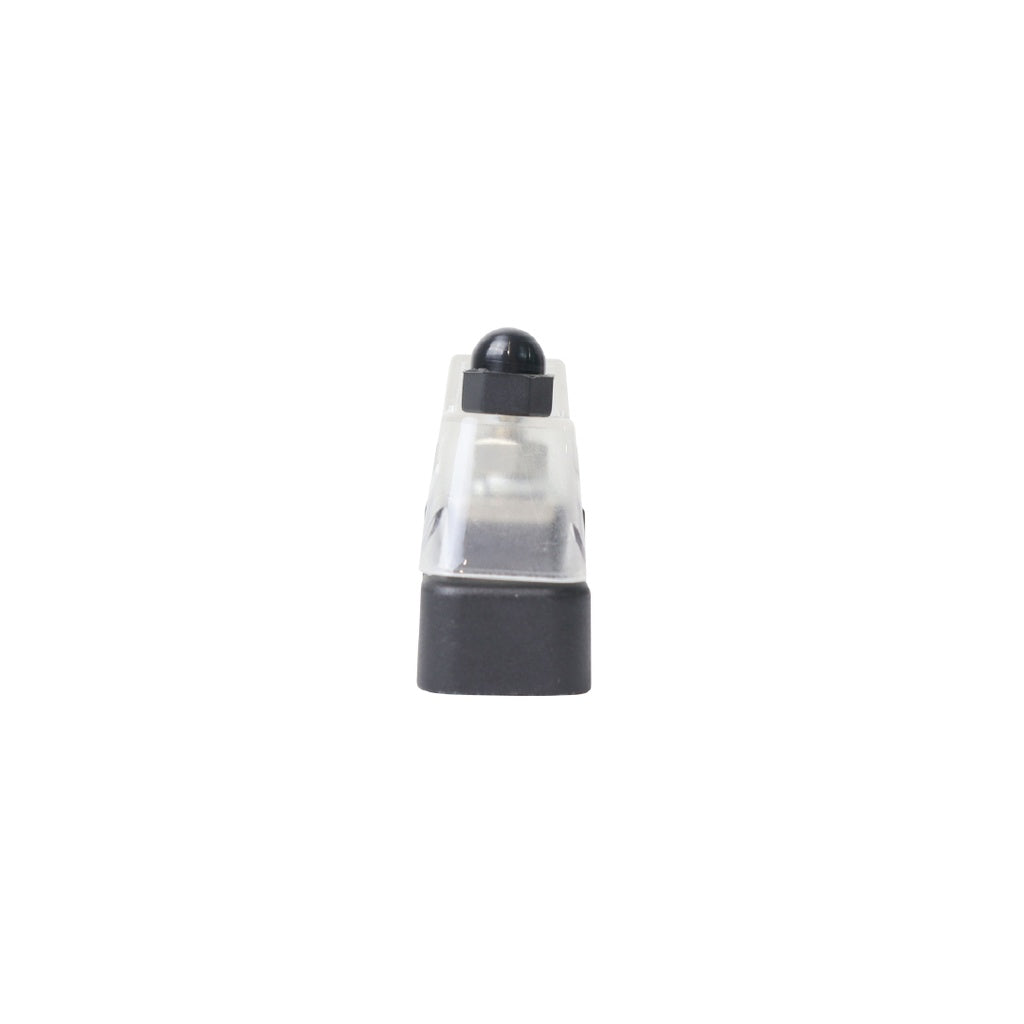

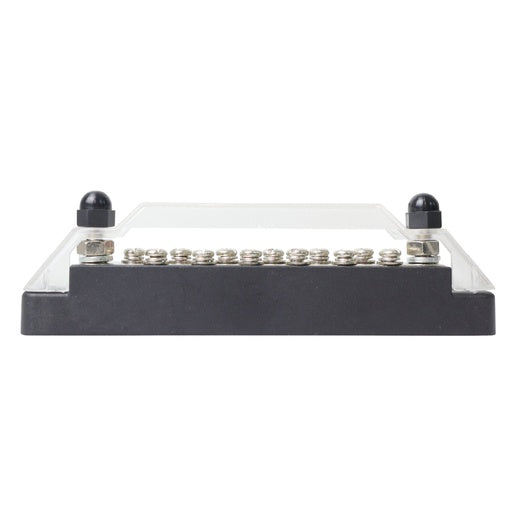

Alvolta M6 12 Point 180a Busbar ABB15012BC

Alvolta M6 12 Point 180a Busbar ABB15012BC

Regular price $29.95
Regular price Sale price $29.95
Sale Sold out
Taxes included.

Features:

  • 12 Connection Points
  • 180amp Continuous Current
  • M6 Stainless Steel Terminal Posts
  • Stainless Steel Hex Nuts & Lock Washer
  • Glass-Filled Nylon Base
  • Cover Included

Upgrade your off-grid adventures with Alvolta’s range of busbars. Designed to help distribute power, extend power connections and protect components and wiring. These busbars are used to consolidate multiple wires or feed multiple circuits, with moulded stainless steel studs to eliminate the need for a securing nut, which allows for excellent electrical contact. Alvolta’s exceptional range of busbars fills a void in the marketplace by providing high-quality, low-cost solutions.

The Alvolta M6 12 Terminal 150A Busbar allows for up to 12 electrical connections, offering up to 180 amps of continuous power supply, allowing you to keep connected to your power source in even the most challenging conditions. Crafted from durable stainless steel, the Alvolta M6 12 Terminal 150A Busbar is corrosion-resistant, making it the perfect tool for your long-lasting off-grid setup. The included cover ensures your busbar is always protected from dirt, dust, and other environmental elements.

Get the reliable power you need with the Alvolta M6 12 Terminal 150A Busbar.

Product Specifications

Maximum Current Rating

180A at 12V DC

Maximum Voltage Rating

48V

Connection Post Size

6mm (M6)

Connection Post

Stainless Steel

Connection Nuts

Stainless Steel

Base Material

Glass-Filled Nylon

Flat & Spring Washer

Stainless Steel

Busbar Contact Strip Material

Nickel-Plated Brass Alloy

Colour

Black

Dimensions

149 x 77 x 59mm
