Analogue to Digital Audio Converter (ADC) ADC11AU

Our ADC11AU is designed to convert left / right analogue stereo audio into either coaxial or optical digital.

Both digital outputs are simultaneous so audio can be distributed to multiple locations.

The ADC11AU converts to 16-bit 48kHz digital audio for enhanced sound reproduction.

Key Features

• ADC (Analogue to Digital Audio Converter) converts analogue left / right stereo audio input to both S/PDIF optical and coaxial digital PCM outputs
• Both optical digital and coaxial digital output simultaneously
• Converts to 16-bit 48kHz digital audio
• Plug and play solution

Specifications

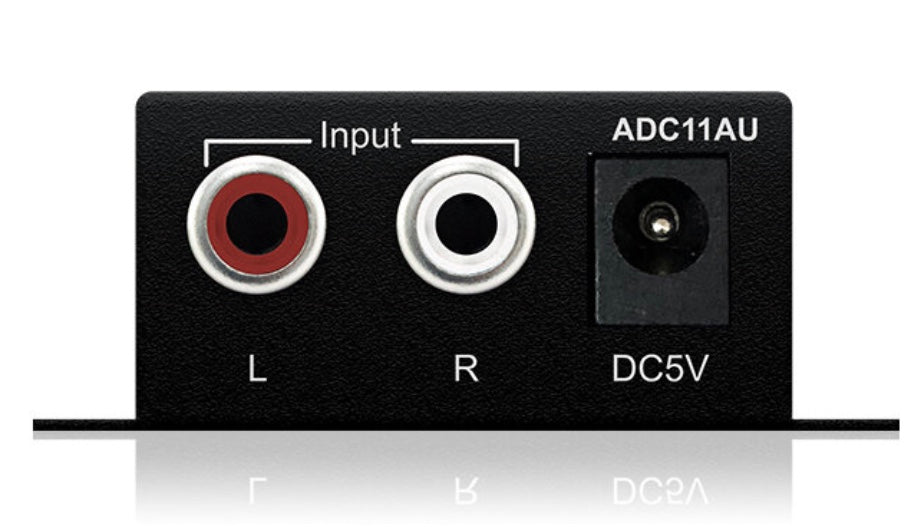

• Audio Input Connectors: 2 x Analogue stereo left / right (RCA)

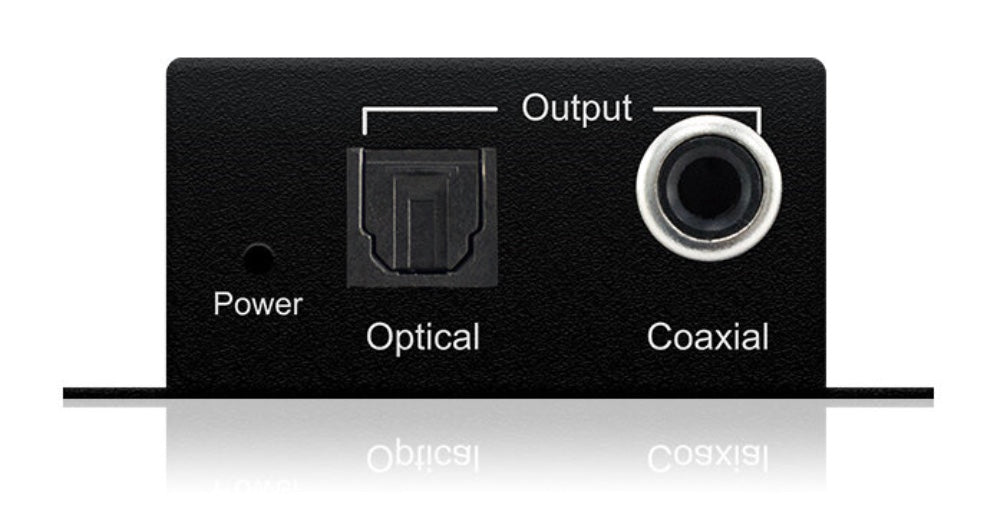

• Audio Output Connectors: 1 x Optical (SPDIF) & 1 x RCA (SPDIF)
• Product Dimensions (W x D x H): 65 x 55 x 25mm (with connections)
• Product Dimensions (W x D x H): 55 x 55 x 25mm (without connections)
• Product Weight: 0.1kg (excluding accessories)
• Carton / Box Dimensions (W x D x H): 165 x 110 x 90mm
• Shipping Weight: 0.3kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC, barrel type connector
• Mounting Kit Included

Box Contents

1 x ADC11AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual
