Arduino 2.8" TFT Touch Shield With Resistive Touch Screen Z6510A

Arduino 2.8" TFT Touch Shield With Resistive Touch Screen Z6510A

Regular price $35.95
Regular price Sale price $35.95
Sale Sold out
Taxes included.

This 2.8” TFT touchscreen is designed to suitable for Arduino UNO/Mega2560. It can directly plug into the UNO/Mega2560 board without any wiring and soldering. Its library is compatible with Adafruit TFT touchscreen shield, which is easy to use.

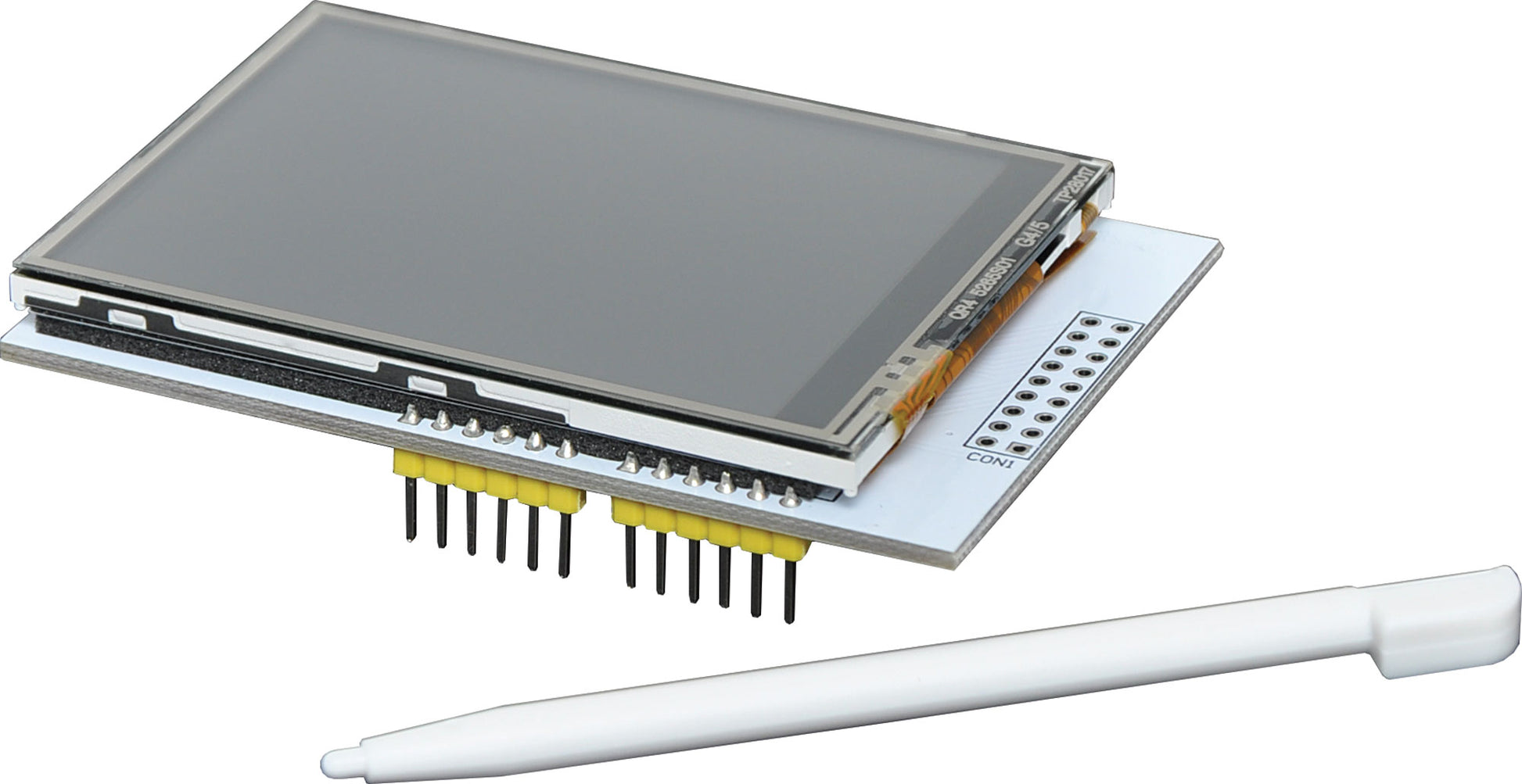

This display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen. 240x320 pixels with individual pixel control. Meanwhile, this module supports mini SD card to expand storage. The display is also supplied with a touch pen.

Specifications

  • 2.8" diagonal LCD TFT display
  • 240x320 resolution
  • ILI9341 controller with built in video RAM buffer Works with any Arduino '328 or Mega
  • 5V compatible! Use with 3.3V or 5V logic
  • With white LED backlight.

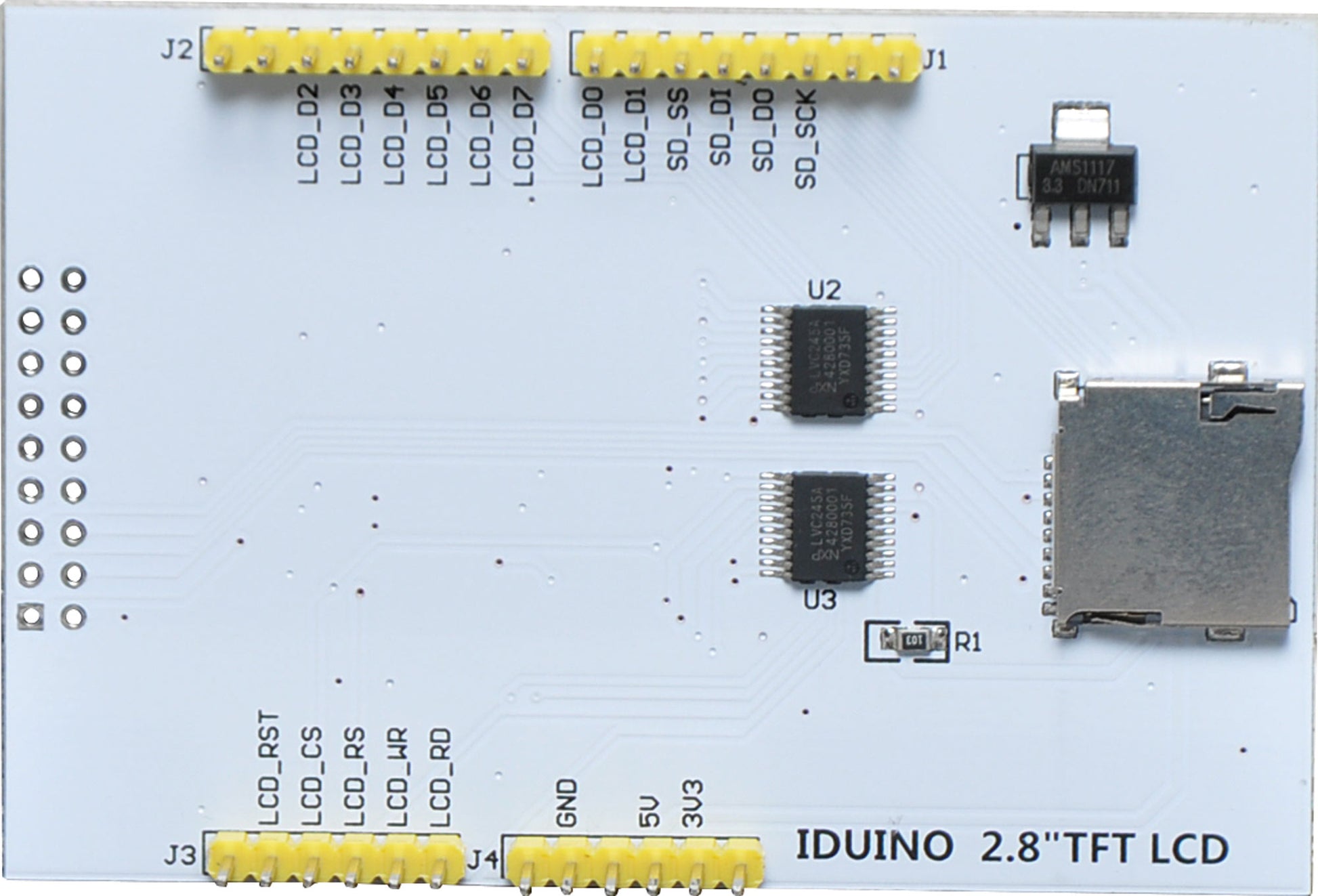

  • Support Mini SD card extension
  • Dimensions: 78x52x16mm
  • Weight: 38g
