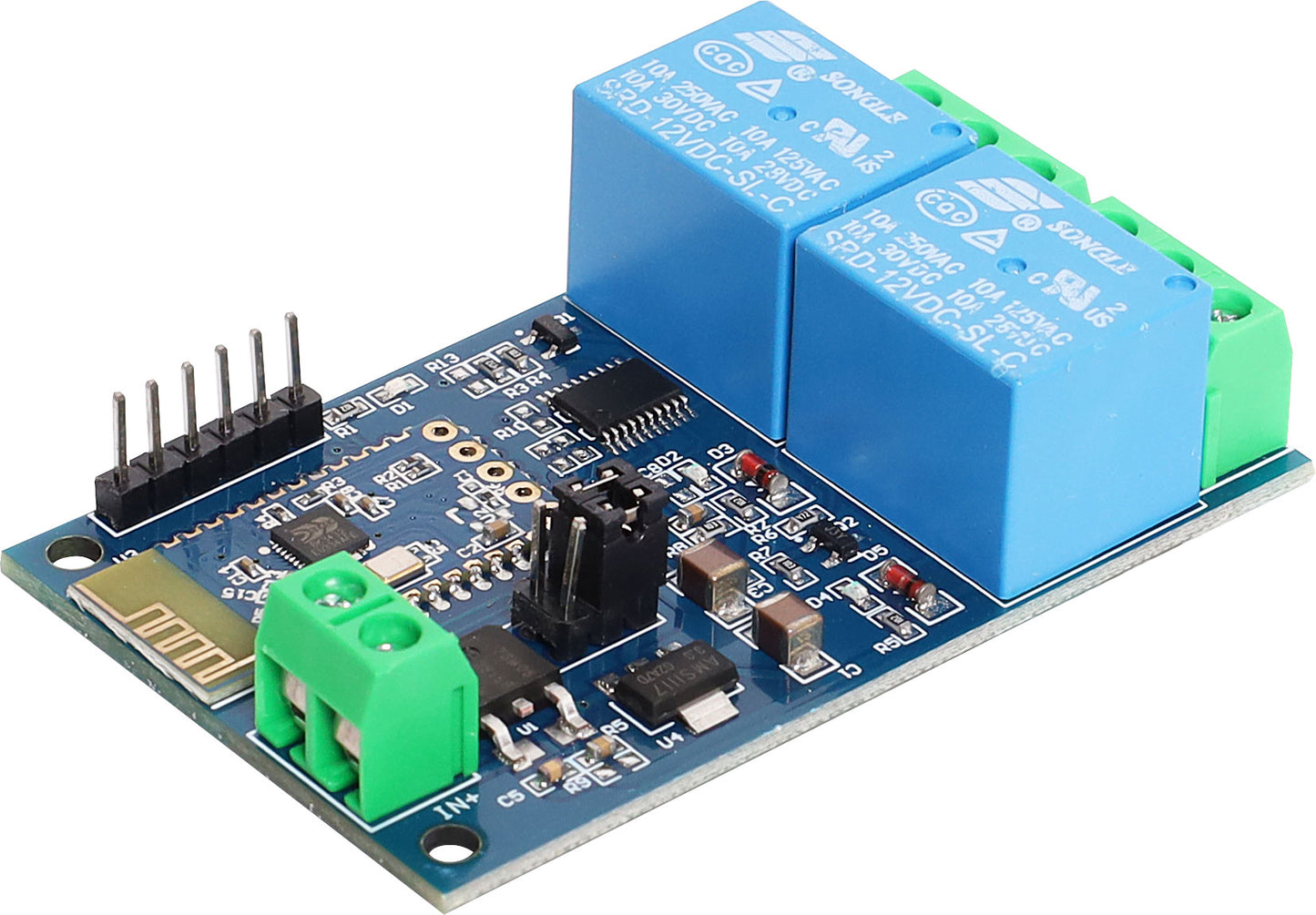

A combined relay and control board with the ability to switch on and off connected loads using an App on your phone via Bluetooth. The eWeLink app offers seamless power switching using your device when in range of the relay board (typically 10m). Allows switching up to 10A current. Relay board is equipped with SPP-C bluetooth serial slave module which can be used to control relay switching commands via the eWeLink app.
Features
- Easy to set up and pair - Android or iOS eWeLink app available for direct control.
- Onboard Bluetooth status indicator and relay indicator.
- With 2 optocoupler isolation, strong anti-interference ability.
- Onboard N76E003/STM8S003 and SPP-C Bluetooth 2.1 module.
- Compact board design.
- Module with diode effusion protection short response time
Specifications
- Effective control distance(on open area): 10m
- Module Operating Voltage: 12VDC
- On-board 12V, 10A / 250V AC 10 A / 30V DC relay
- Switching lifetime: 100000 times continuously.
- Dimensions: 65L x 41W x 19Hmm
