Arduino DFR0074 Arduino Interface Shield Connection Module Z6500

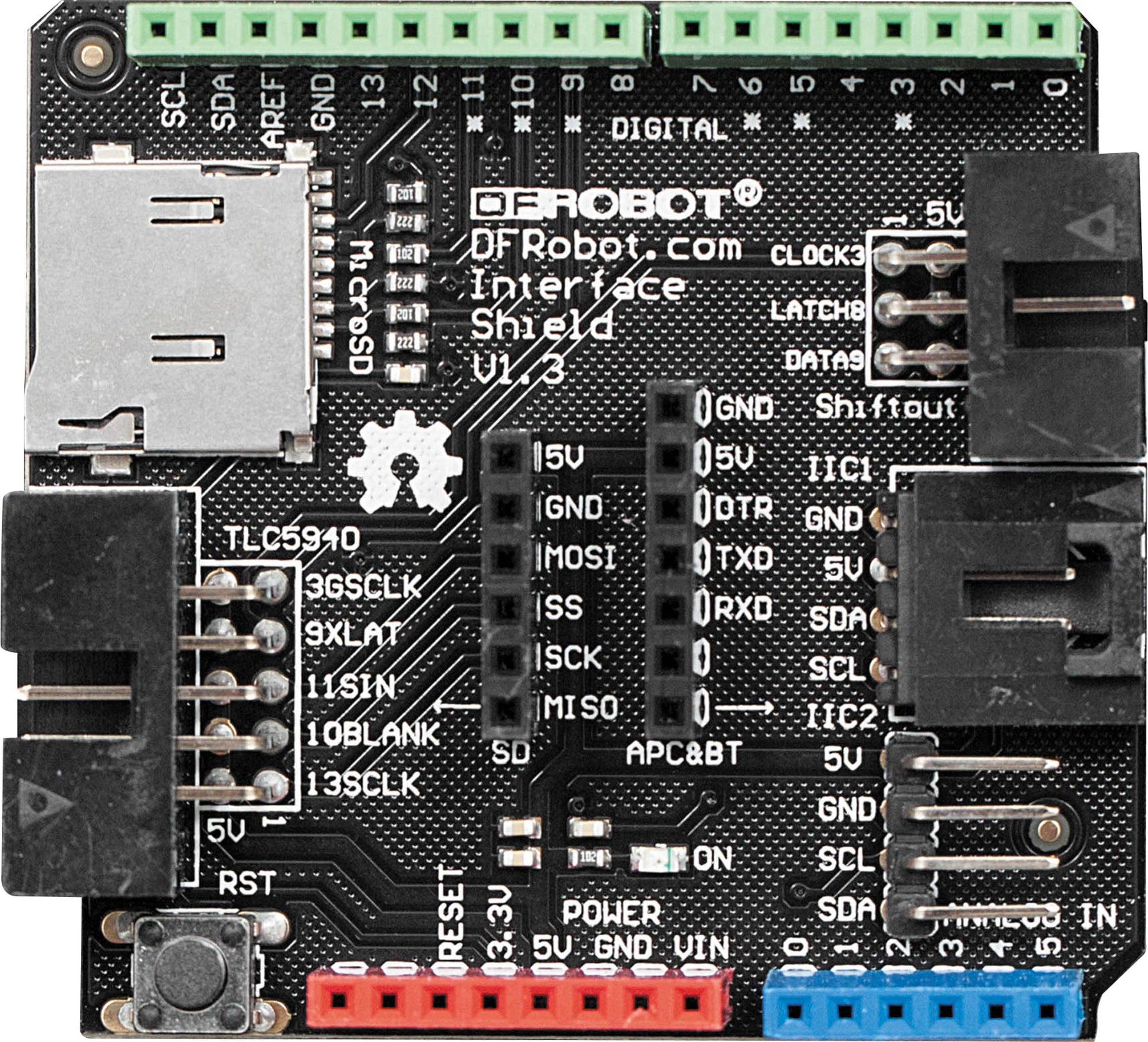

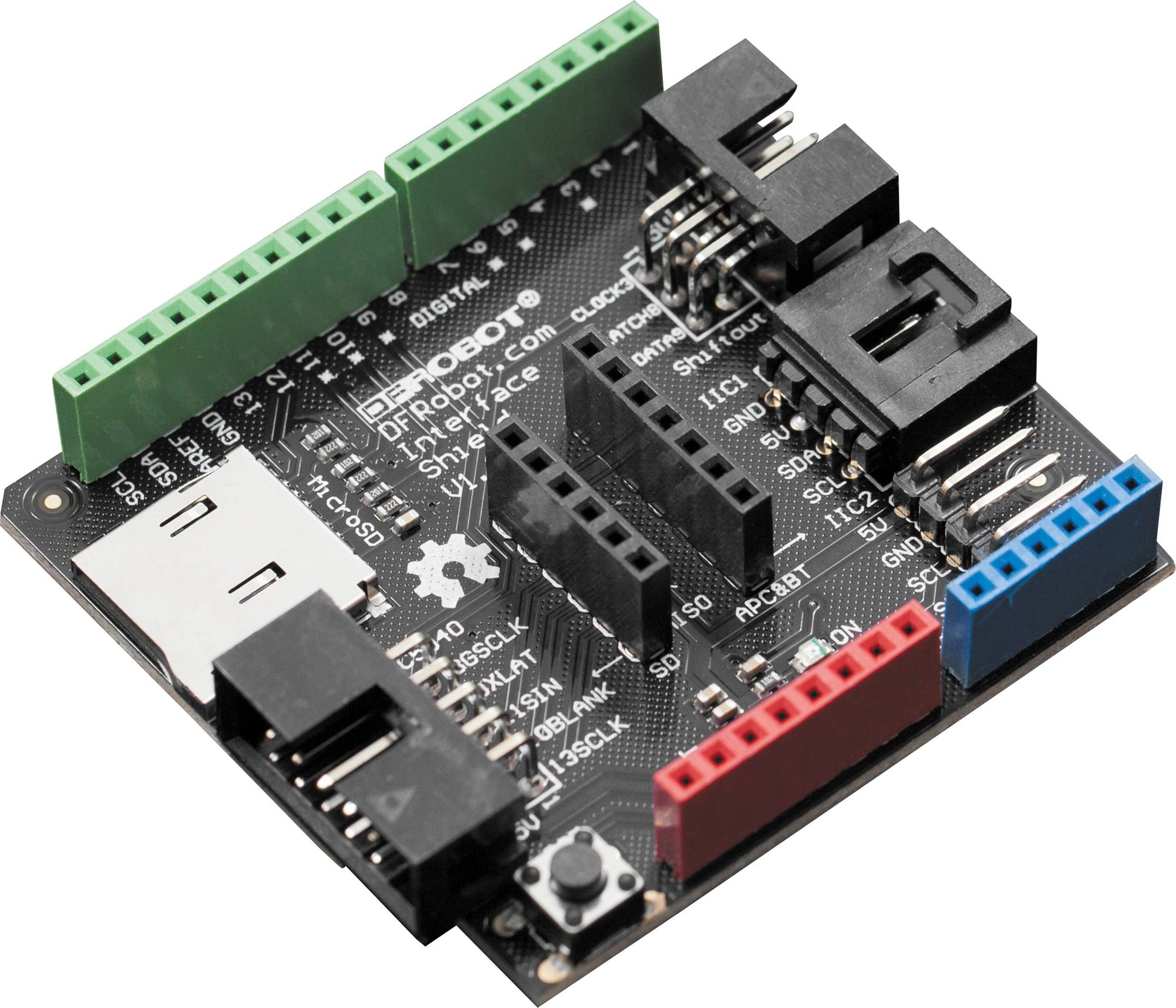

This Arduino interface shield supports multiple interfaces such as SPI interface (directly connected Shiftout module, SPI LCD display module, SPI LED display module), IIC Interface (direct connects IIC lCD display module, IIC transfer IO module), Micro SD card interface (Micro SD card can be directly inserted), SD card storage module interface, TLC full-color LED controller module. Comaptible with Arduino UNO and Duemilanove.

Features

• Multi-function expansion board
• Compatible with Arduino
• Supports SPI Interface, IIC interfaces, SD card, TLC5940

Circuit Diagram

TLC Library

FAT Library
