Arduino Mega Box Mark II for Arduino K9670A

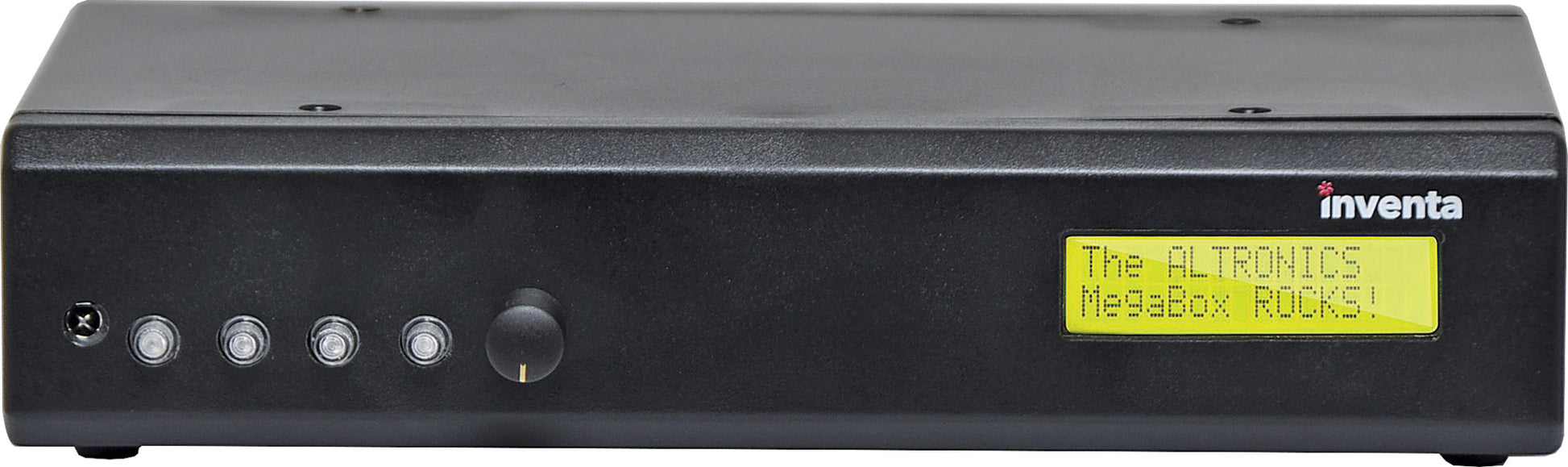

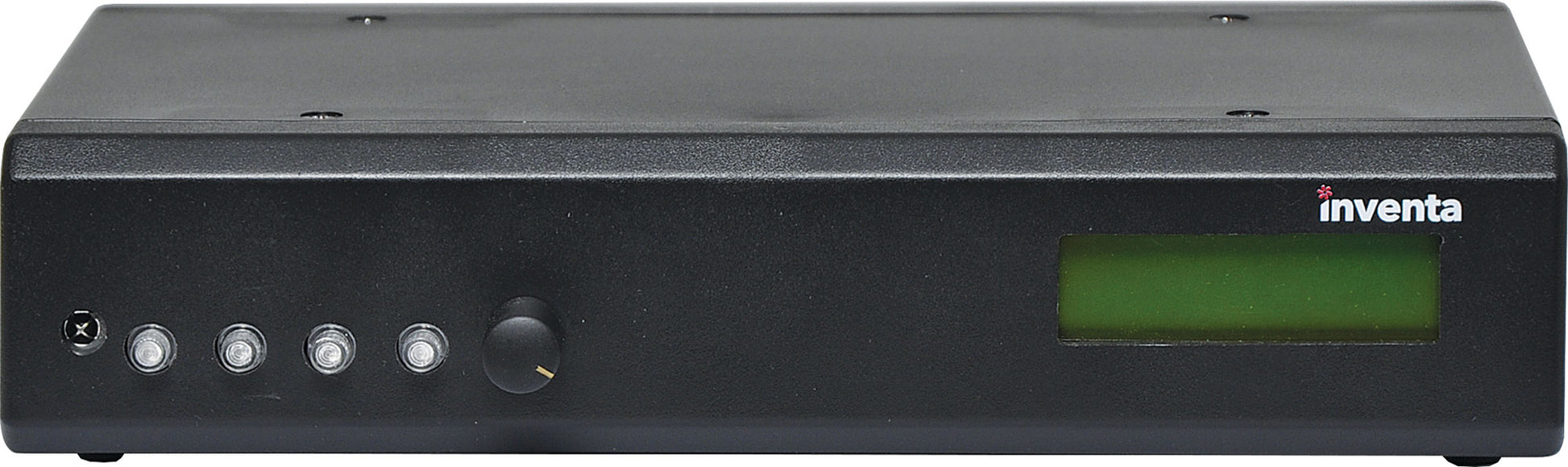

Developed in house by Altronics, this new revised MegaBox is an upgrade of our original K 9670. This revised version accepts an Arduino UNO or Mega to be plugged into it, along with two shields, allowing you to design and build your own products. Includes a 16x2 LCD, four control buttons and a rotary encoder on the front panel plus five 2A 5V relay outputs and 8 opto isolated inputs that are available on the rear. All UNO/Mega pins are broken out to header sockets for easy connection to other breakouts. A small 160 hole prototyping area on the main board is included for connecting to other sensors, parts and circuits.

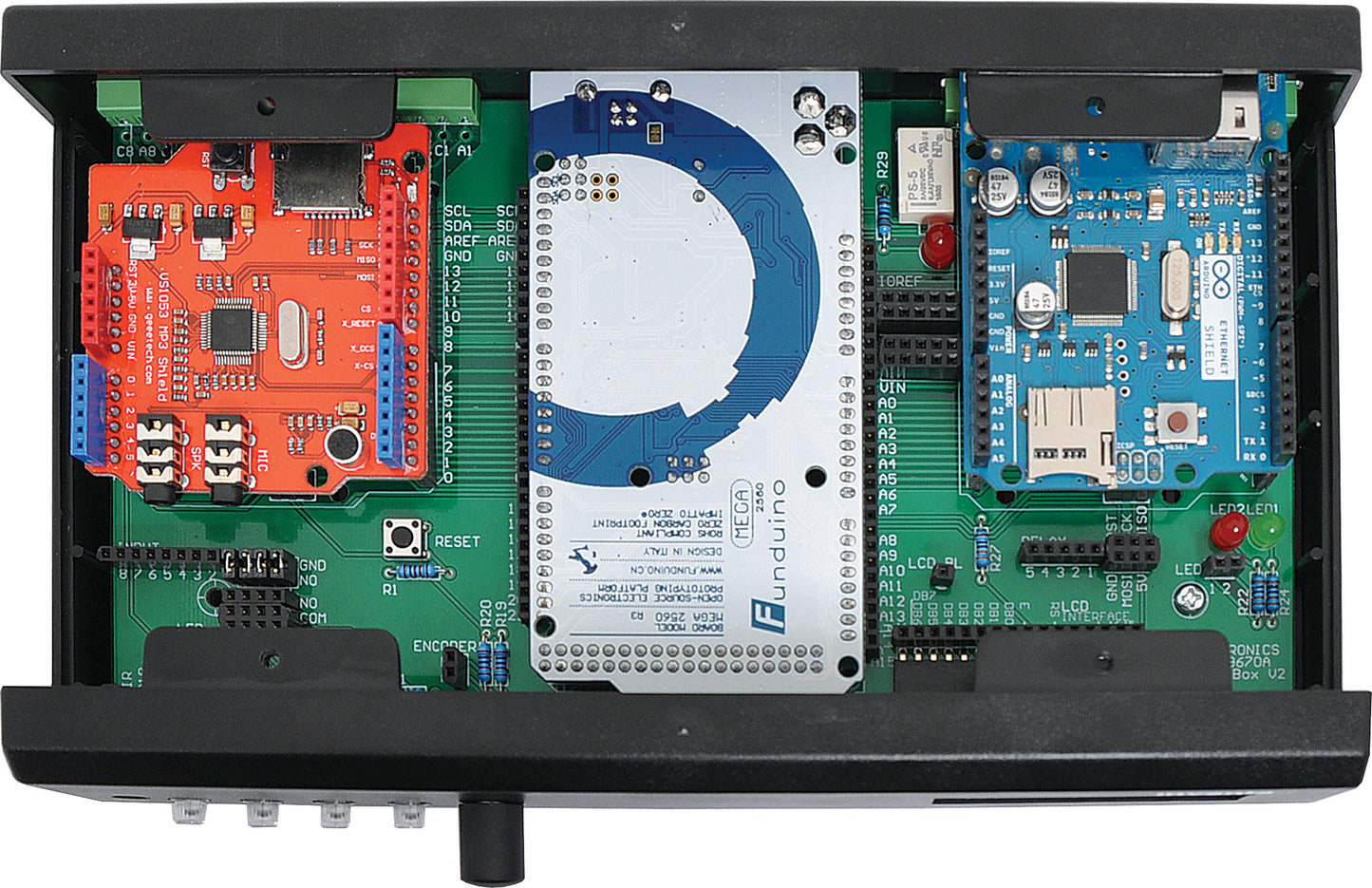

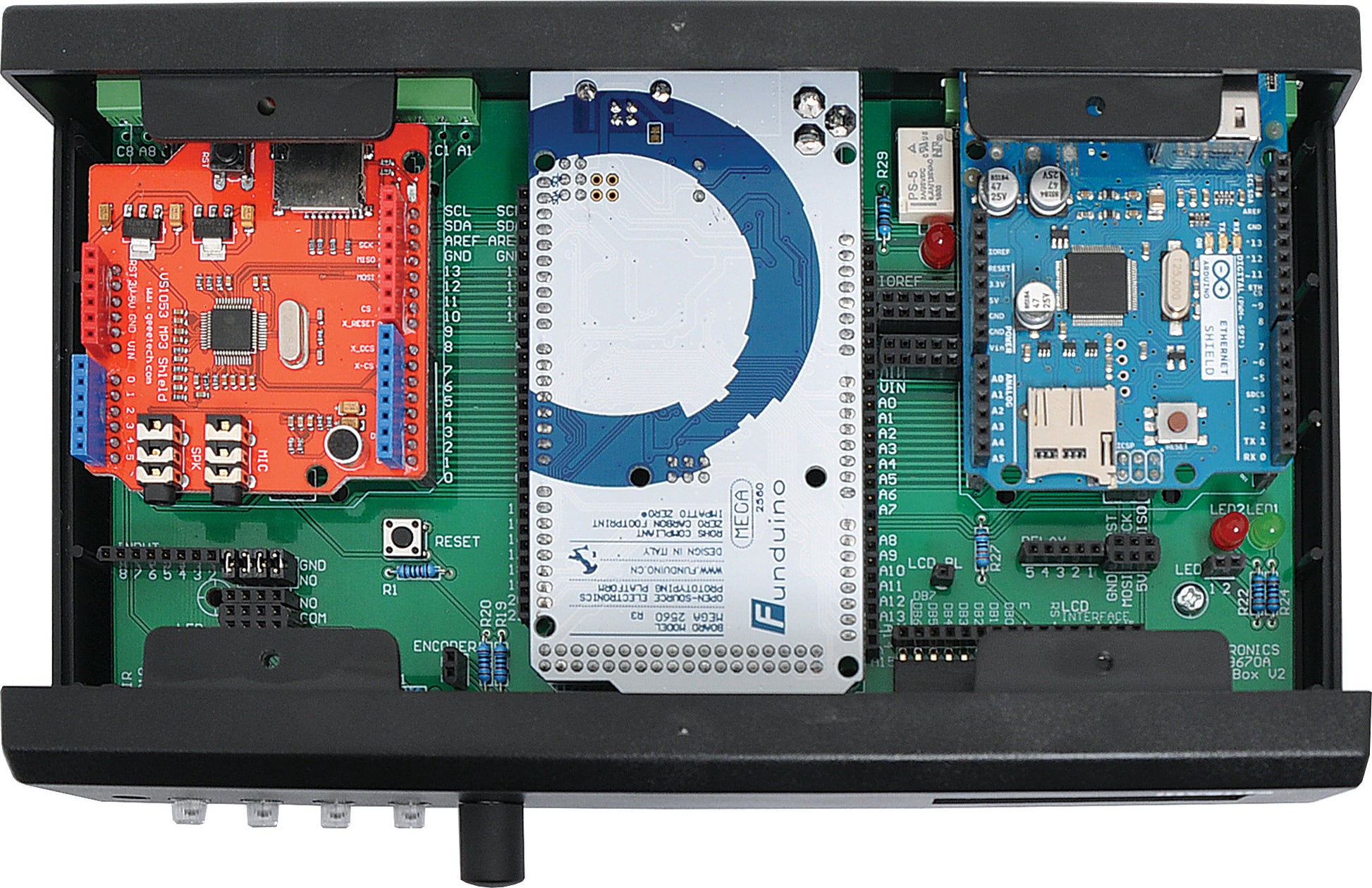

*Shields for illustration purposes only. Not included.

Features

• Utilises a half rack 1RU size case
• 16x2 alphanumeric display
• Rotary encoder control
• 4 push buttons
• Compatible with Arduino UNO/mega boards
• 5 2A 5V relay outputs
• 8 opto isolated inputs
• On board reset and LEDs
• All main board pins broken out to header sockets

Shield compatability:
Note that the maximum height above the shield PCB is 14mm. Shield placement is with the flat side to the rear of the unit.

Example Code
