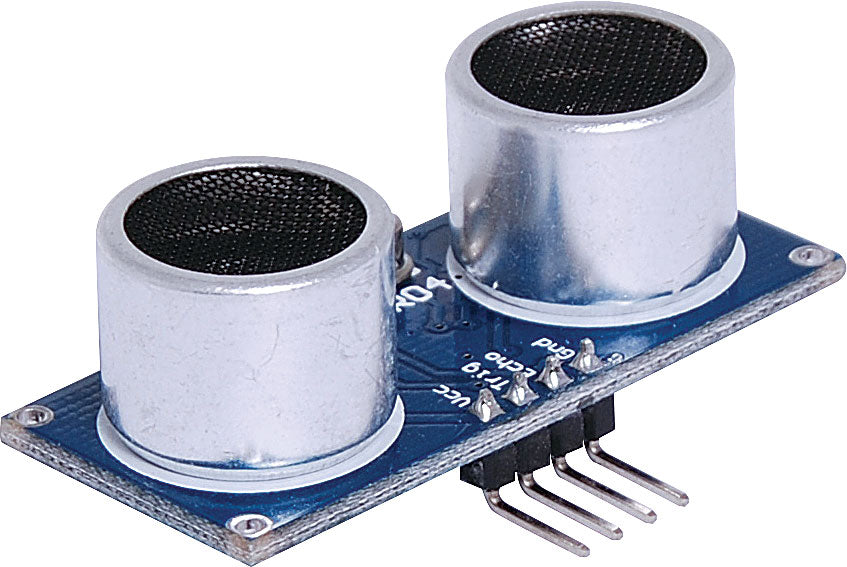

Arduino Ultrasonic Distance Sensor Breakout Z6322
Arduino Ultrasonic Distance Sensor Breakout Z6322
Regular price
$7.95
Regular price
Sale price
$7.95
Unit price
per
Taxes included.
Couldn't load pickup availability
A proximity/distance sensor that can be used for object avoidance in many applications from robotics to car parking. The module has dual ultrasonic transmitters, receiver and control circuit and is designed for use in conjunction with Arduino boards.
Specifications
- Working Voltage: DC 5V
- Output : 5V
- Static Current: 2mA
- Detection Distance : 20 - 4500mm
- Resolution: >3mm
- Output signal: Electric frequency signal, high level 5V, low level 0V.
- Sensor angle: Not more than 15 degrees.
- Input trigger signal: 10us TTL impulse
- Echo signal : output TTL PWL signal
- Dimensions : 45 x 27 x 17mm
- Weight : 9g
