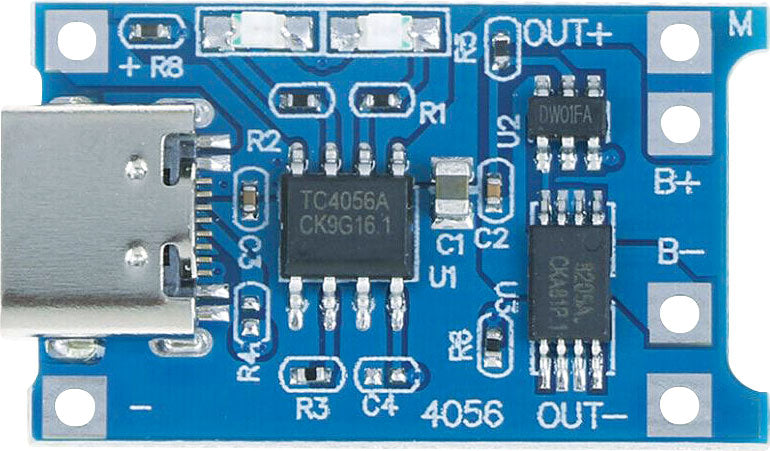

Arduino USB Type C Lithium Charger Module Z6388A

Arduino USB Type C Lithium Charger Module Z6388A

$5.95
$5.95
Sale Sold out
Taxes included.

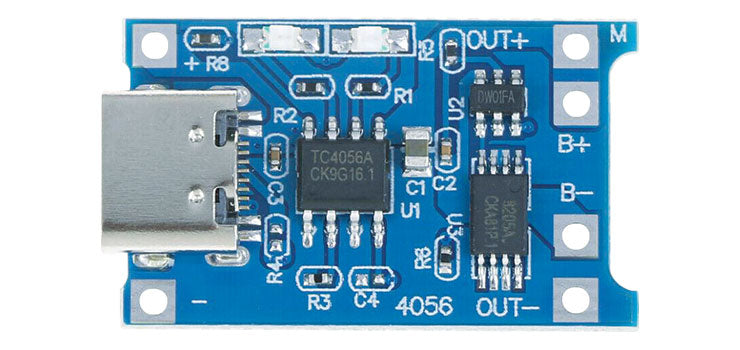

Provides a 1A charging current to a single lithium cell from a 5V DC input and can be powered by USB (Type C socket provided). LED indicators on board.

Please Note: This module is NOT reverse polarity protected.

Specifications

  • Module Type: Type C USB
  • Charge Mode: Linear Charging
  • Charge Current: 1A
  • Charge Precision: 1.5 %
  • Input Voltage: 4.5V ~ 5.5V
  • Full Charged Voltage: 4.2V
  • Led Indicator: Red is charging, Blue is fully charged
  • Input Interface: Type C USB
  • Work Temperature: -10℃~ 85℃
  • Size: 28 x 17.5 x 4mm
  • Weight: 1.8g
