Arduino WiFi ESP8266-ESP-12F Development Board Z6381
Arduino WiFi ESP8266-ESP-12F Development Board Z6381
Regular price
$21.95
Regular price
Sale price
$21.95
Unit price
per
Taxes included.
Couldn't load pickup availability

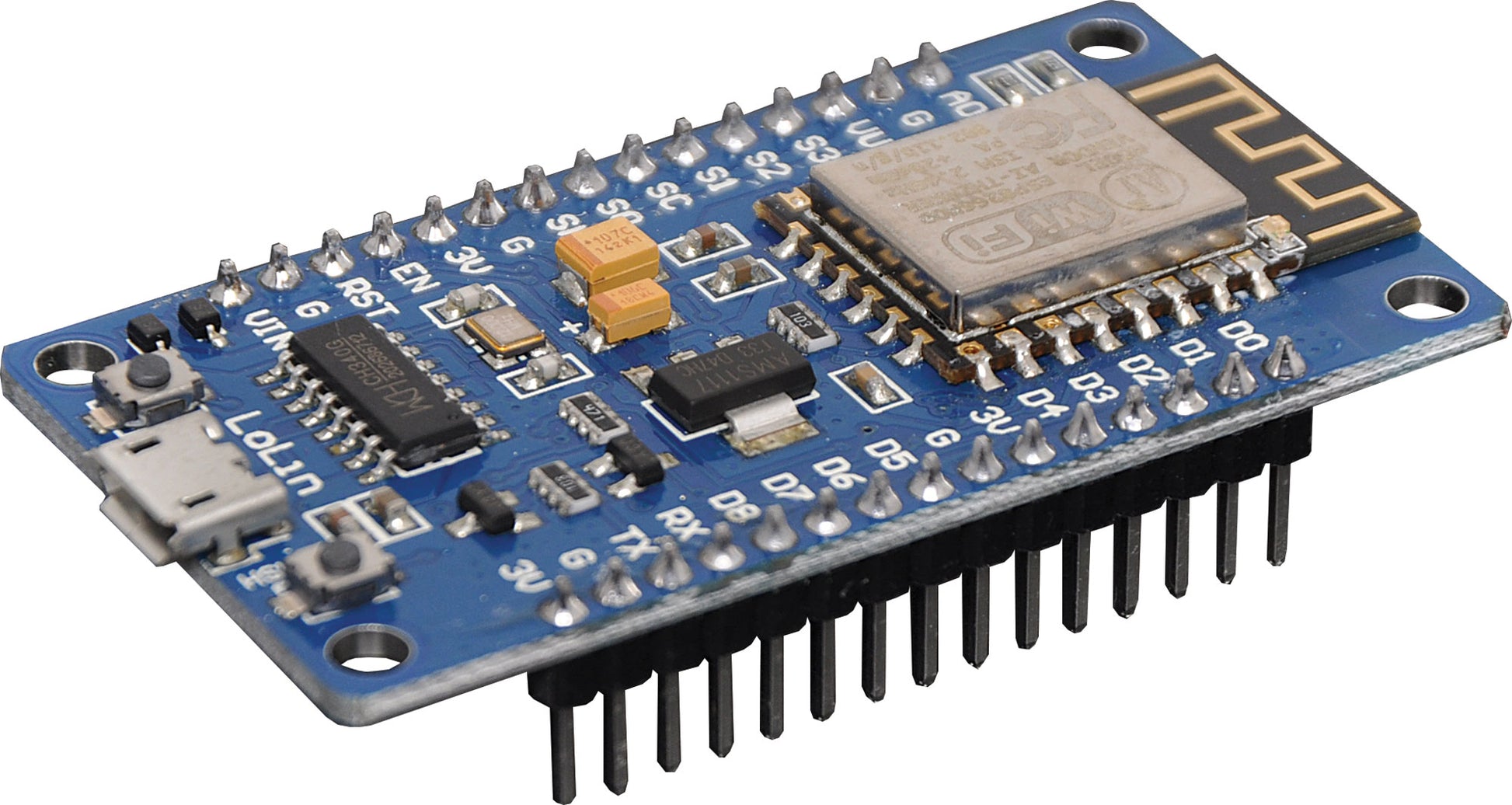

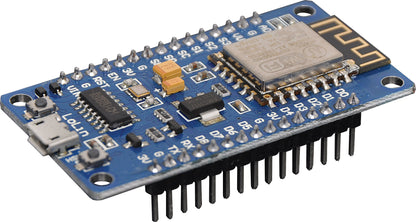

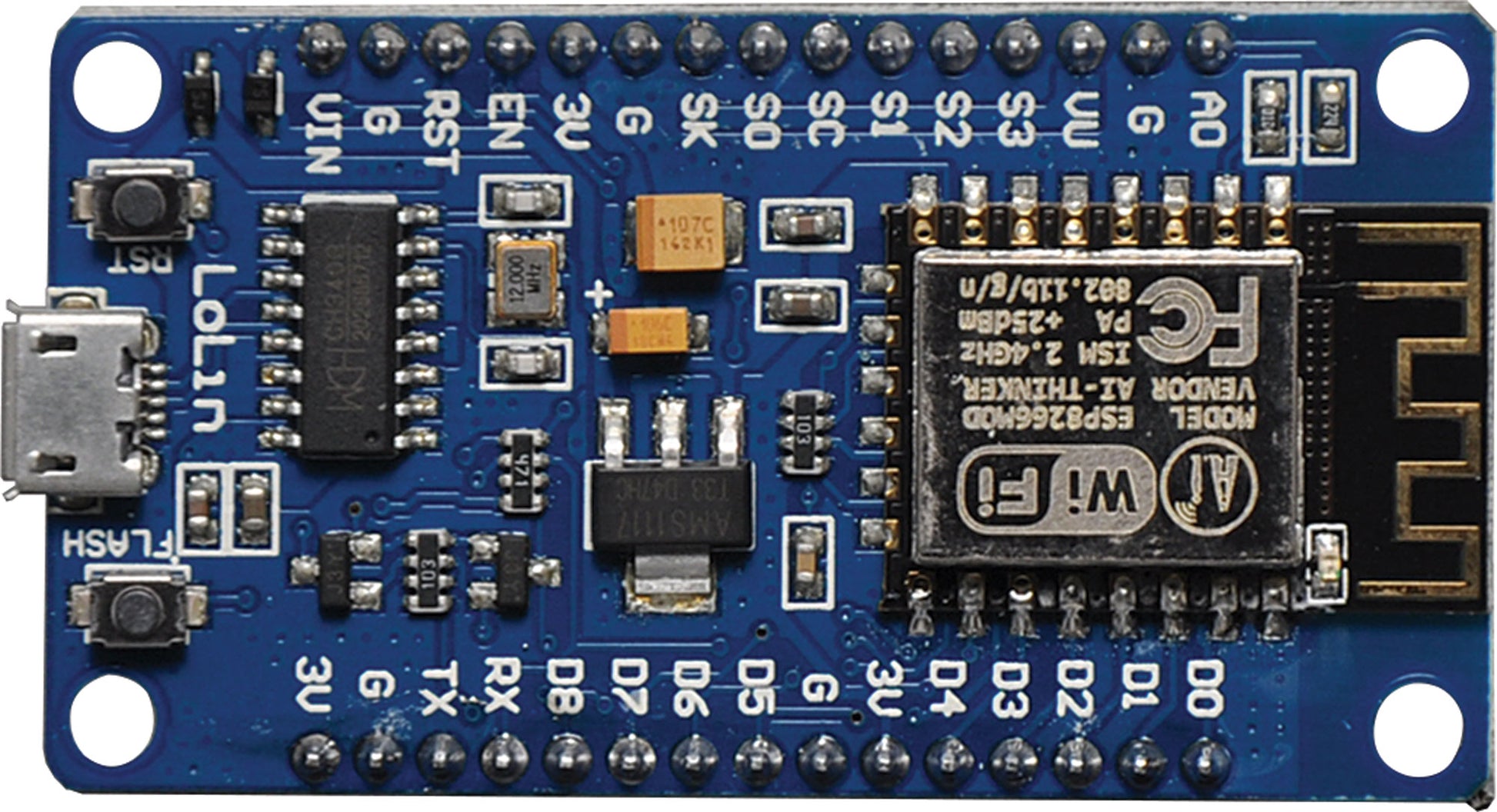

An Arduino compatible development board featuring WiFi making it ideal for plug-and-play projects.The board also features its GPIO broken out, a full USB-serial interface, NodeMCU pre-flashed and a power supply all on the one breadboard-friendly package. The board utilises CH340 chip and includes a +5V DC supply VU (VUSB) pin.
Size: 59 x 31mm
Features
- Adopts industrial chip esp8266, esp-12f module with metal shielding Case, strong Anti-slip potential;
- Used as an independent commission for the development of esp8266, uploading an official to the team Firmware, open source nodemcu, etc.
- Can also be used as an independent development board for Arduino, use the same as Arduino Development Board.
Specifications
- Supports wireless 802.11 B / G / N standard;
- Supports two modes of operation sta / AP;
- Built-in tcp / ip stack, can configure one socket;
- Supports the TCP / UDP server and client standard;
- The serial port's serial port transmission speed can be:
- 1200/2400/4800/9600/19200/38400/57600/74800 / 115,200 bps;
- Serial port data: 5/6/7/8 bit;
- Serial port-even check: no;
- Serial port of the stop bit: 1/2 bit;
- 1 Reset button;
- The key button also has a configuration function;
- Wi-Fi Operating current: Continuous transmission: ≈70ma
- (200mA max), stand from Mode: <200uA;
- Operating voltage: DC 3.3V
- Wireless transmission speed: 110-460800bps;
- Operating temperature: -40 ° C ~ + 125 ° C
