Audio Kits 7 Band Mono Equaliser Kit K5310

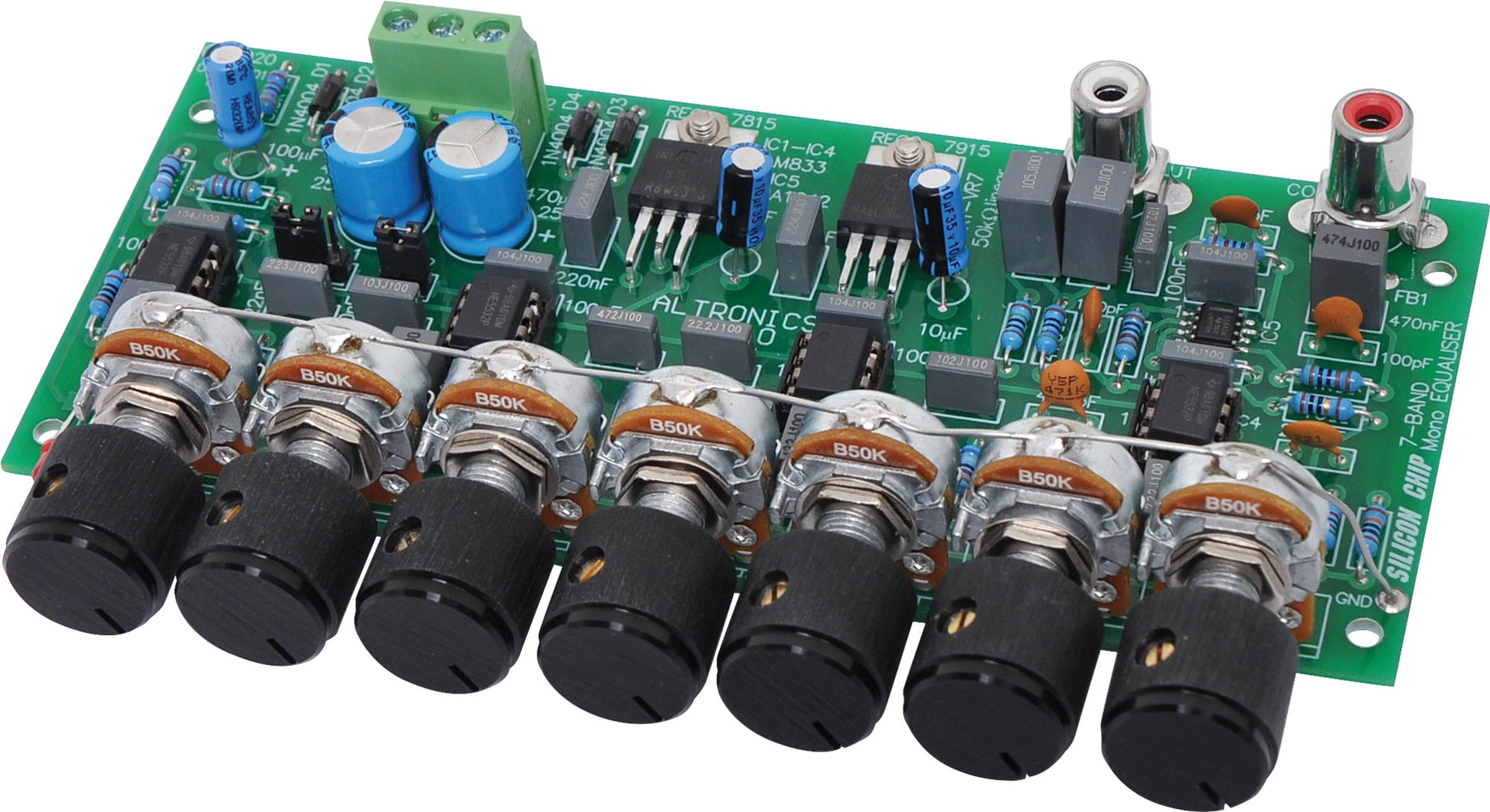

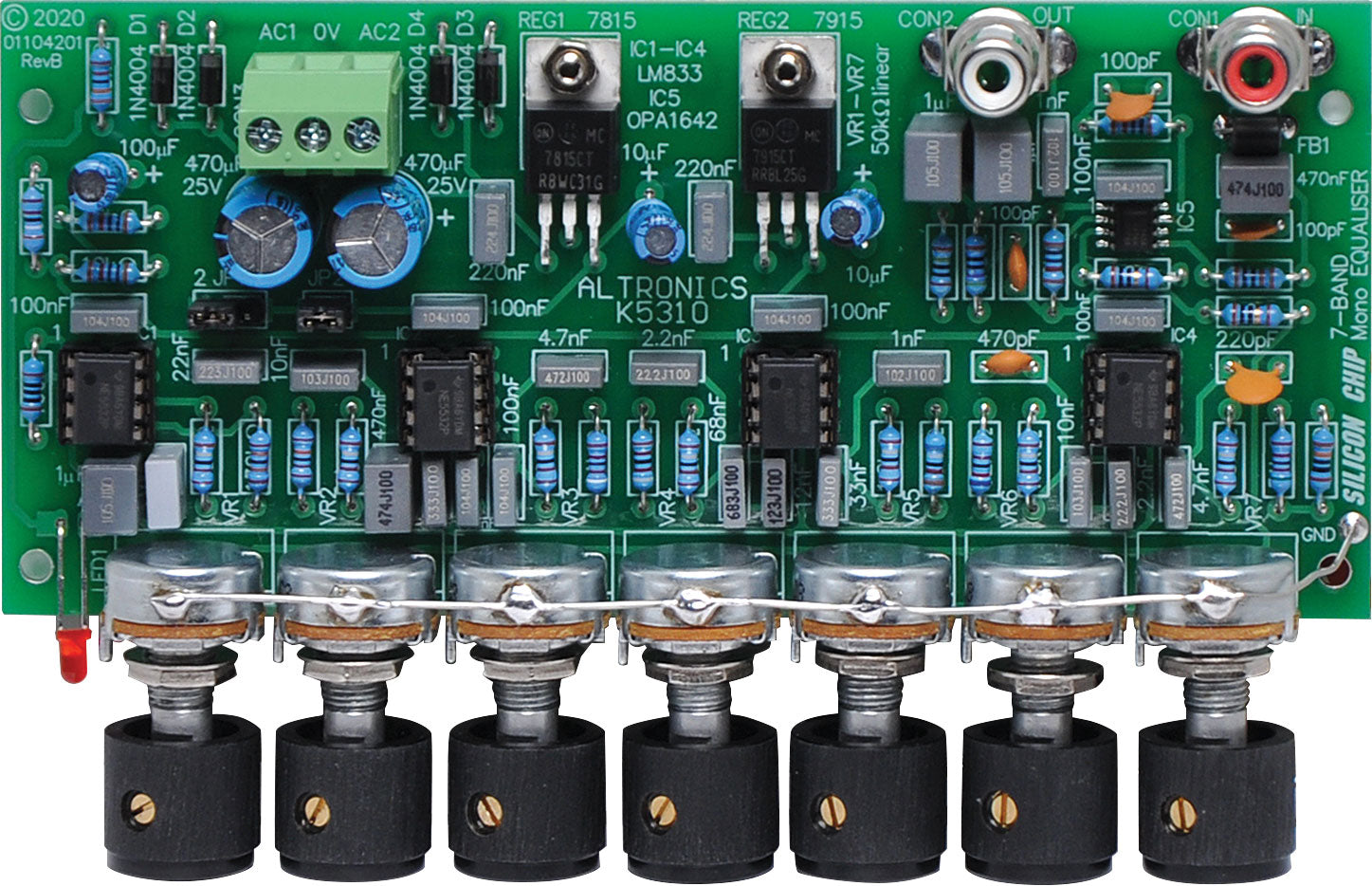

This mono version of Silicon Chip’s new equaliser is perfect for instrument boxes or PA systems. It features extremely low noise and distortion, so it won’t degrade your signal. Multiple methods of powering the unit make fitting it into an existing system a breeze. This equaliser kit also features premium metal knobs.

Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

Features

• Channels: one
• Equaliser bands: seven (63Hz, 160Hz, 410Hz, 1kHz, 2.5kHz, 6.2kHz, 16kHz)
• Boost/cut: approximately ±12.5dB (bands overlap; see Fig.1) Signal-to-noise ratio: 108dB (2V RMS), 102dB (1V RMS)
• Total harmonic distortion: <0.0005%, 20Hz-20kHz, 20Hz- 22kHz bandwidth (see Fig.2)
• Input impedance: 100kΩ
• 100pF Output impedance: 470Ω
• The power supply as supplied supports 18-24V for the DC option, not 12-24V.
• Other features: compact design, uses rotary pots for easy panel mounting
