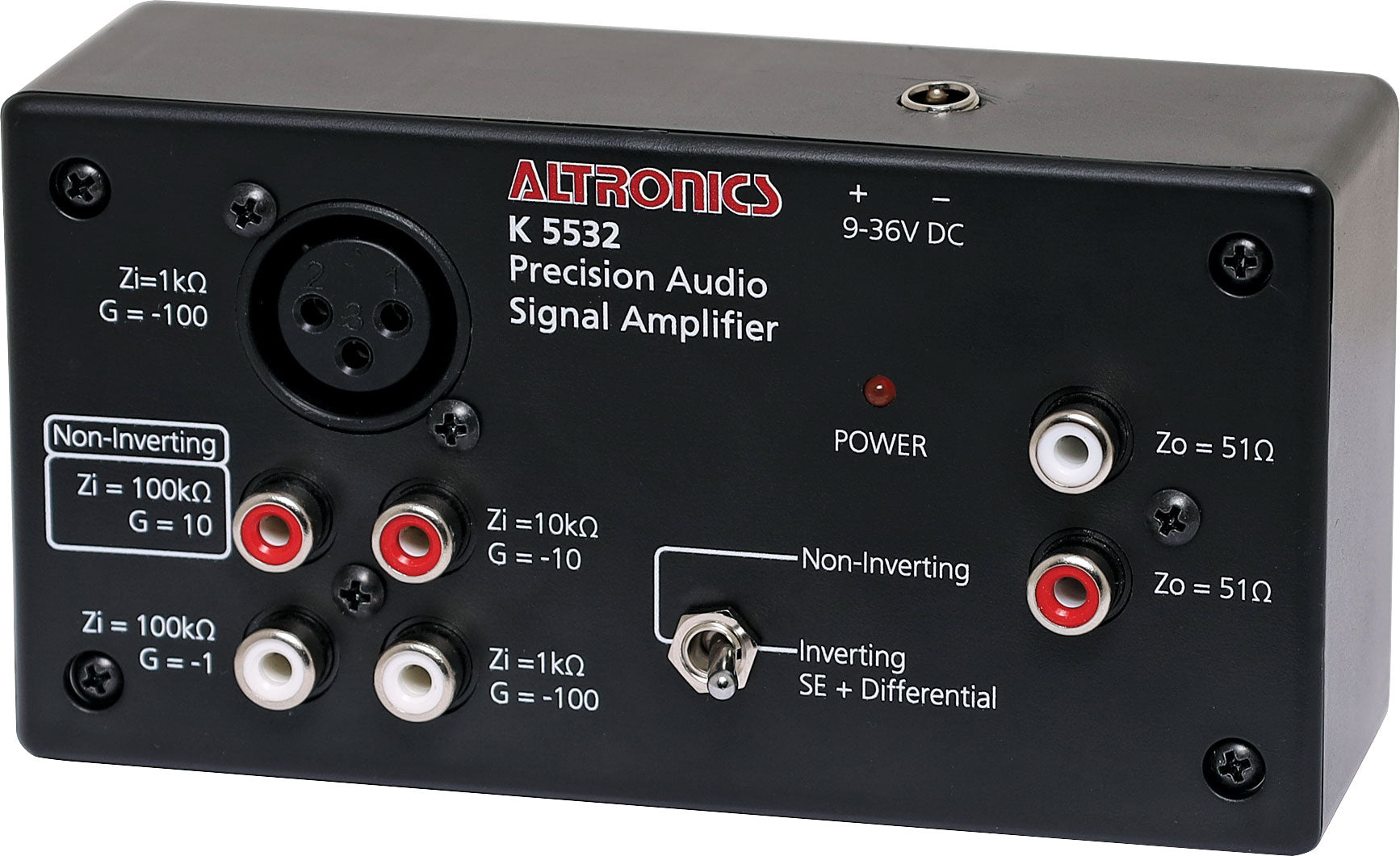

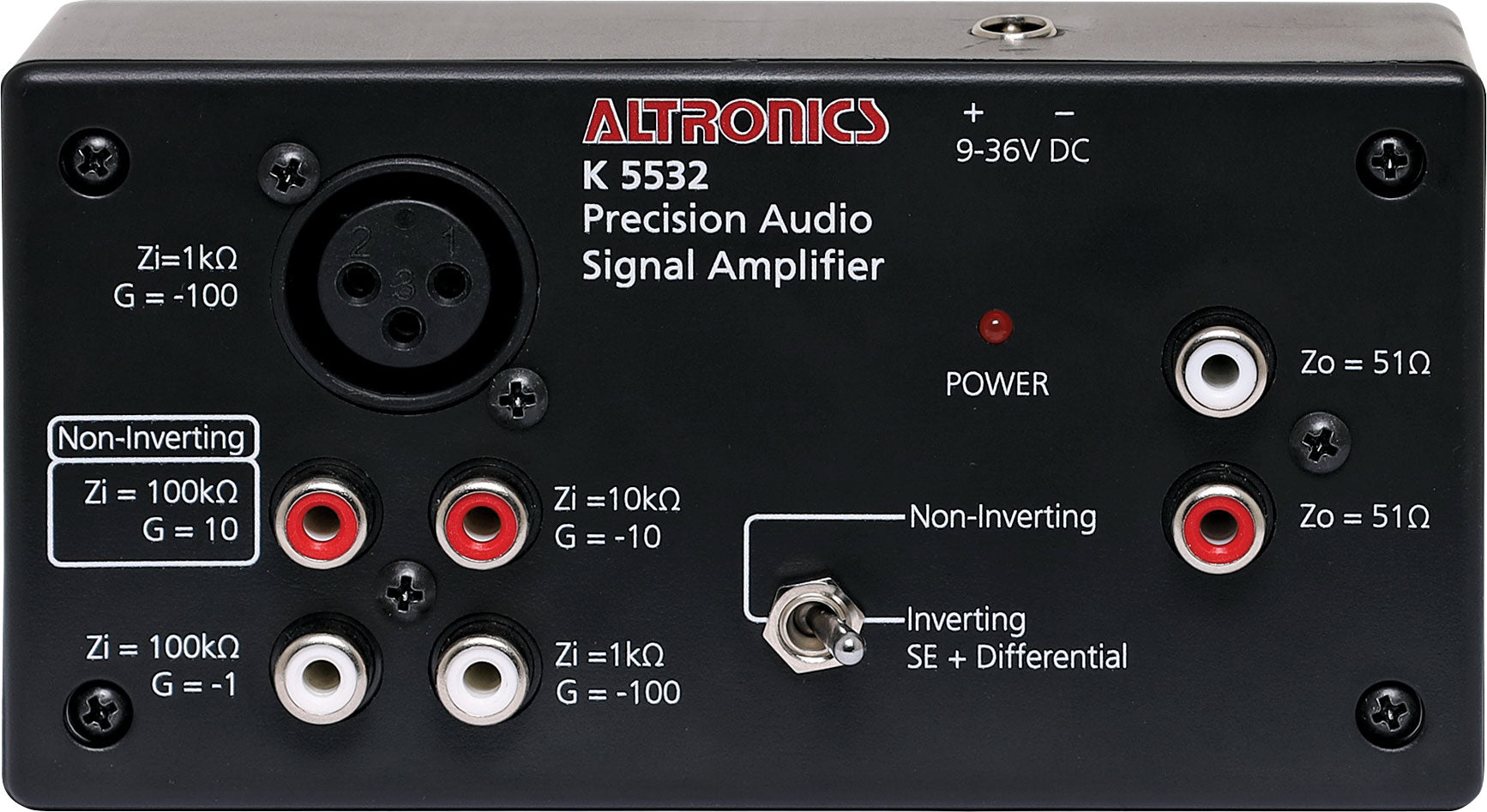

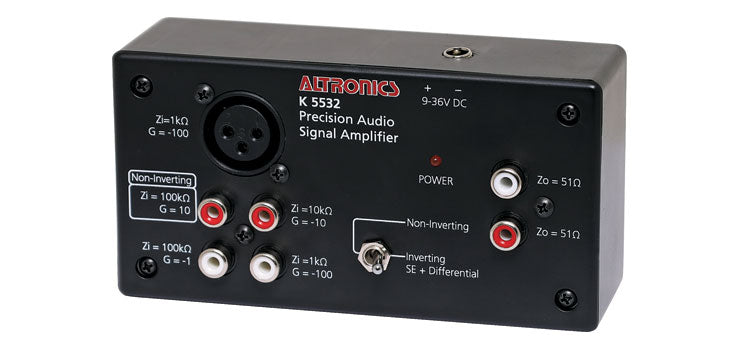

Audio Kits Precision Audio Signal Amplifier Kit K5532

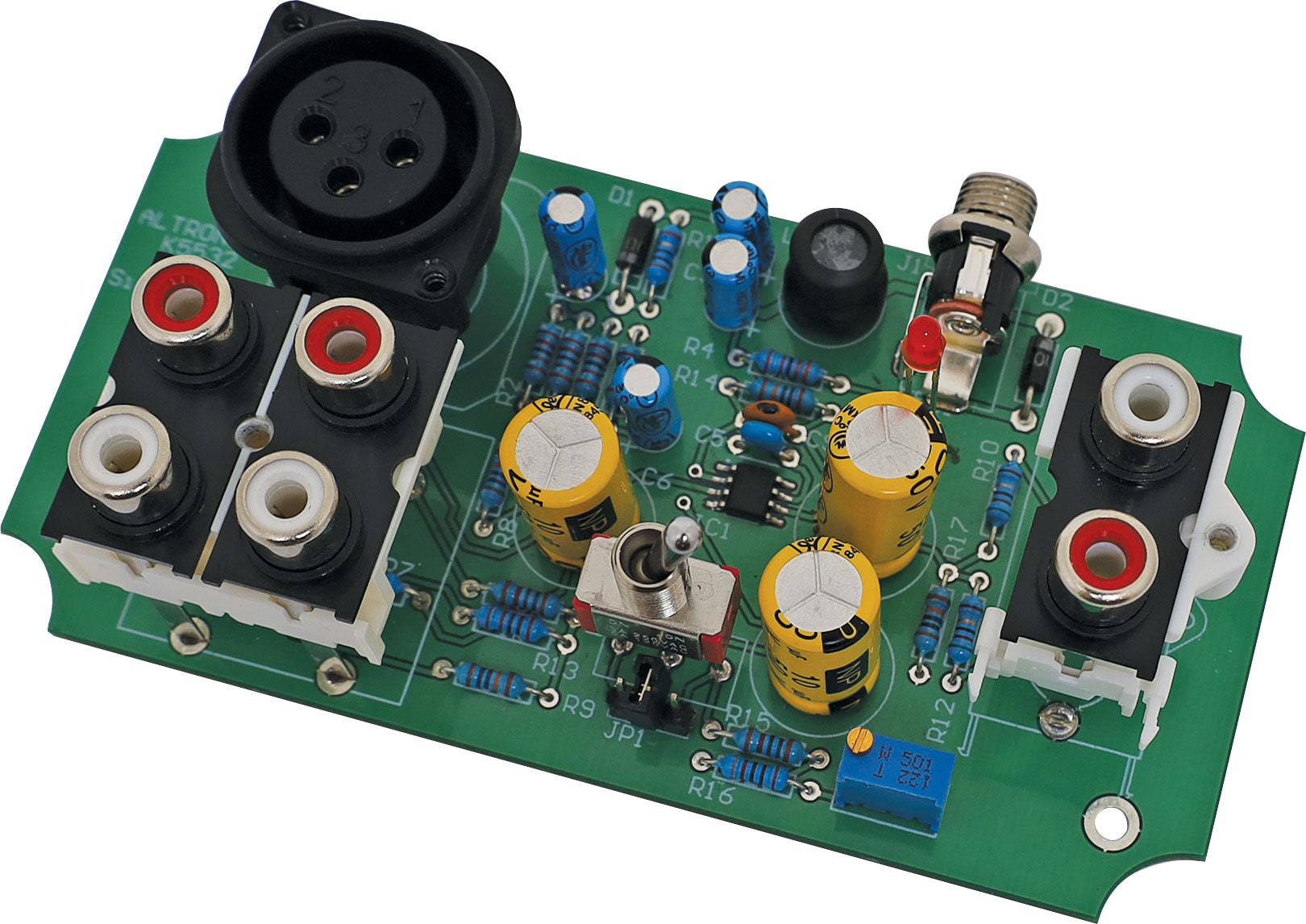

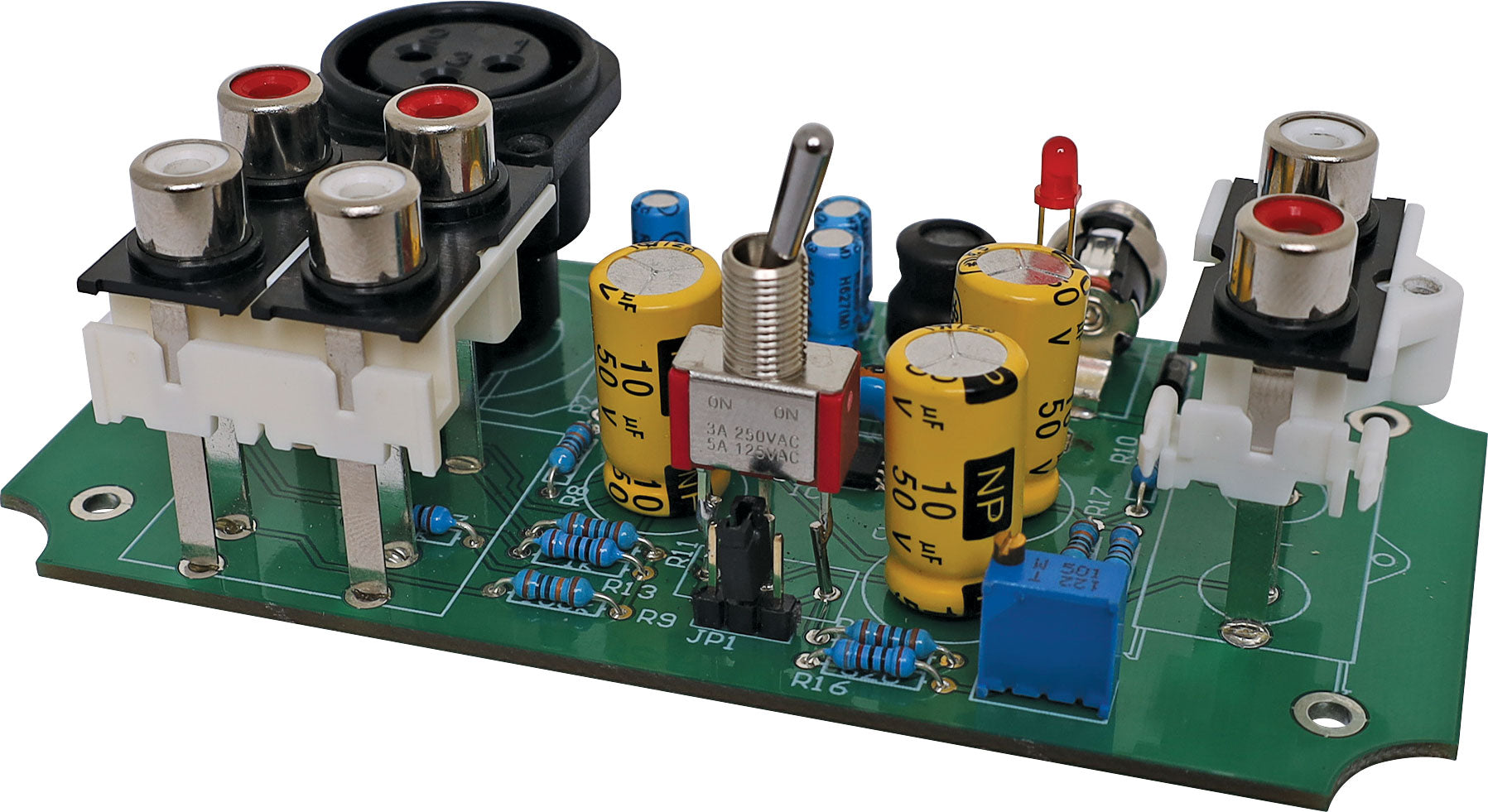

f you’ve ever tried to view a microphone signal on an oscilloscope and lost it in the noise, then you’ll know just how handy a signal amplifier can be. This kit provides a breakout for the high-performance AD4625-1 opamp with provision for a number of fixed gains, suitable for working with audio signals.

Features

• 9-36VDC power supply, with polarity protection.
• Fixed inverting gains of 1, 10 & 100 for single ended signals.
• Fixed gain of 100 for differential signal.
• Precision adjustable gain of 10±2%.
• 2 51Ω impedance outputs.
