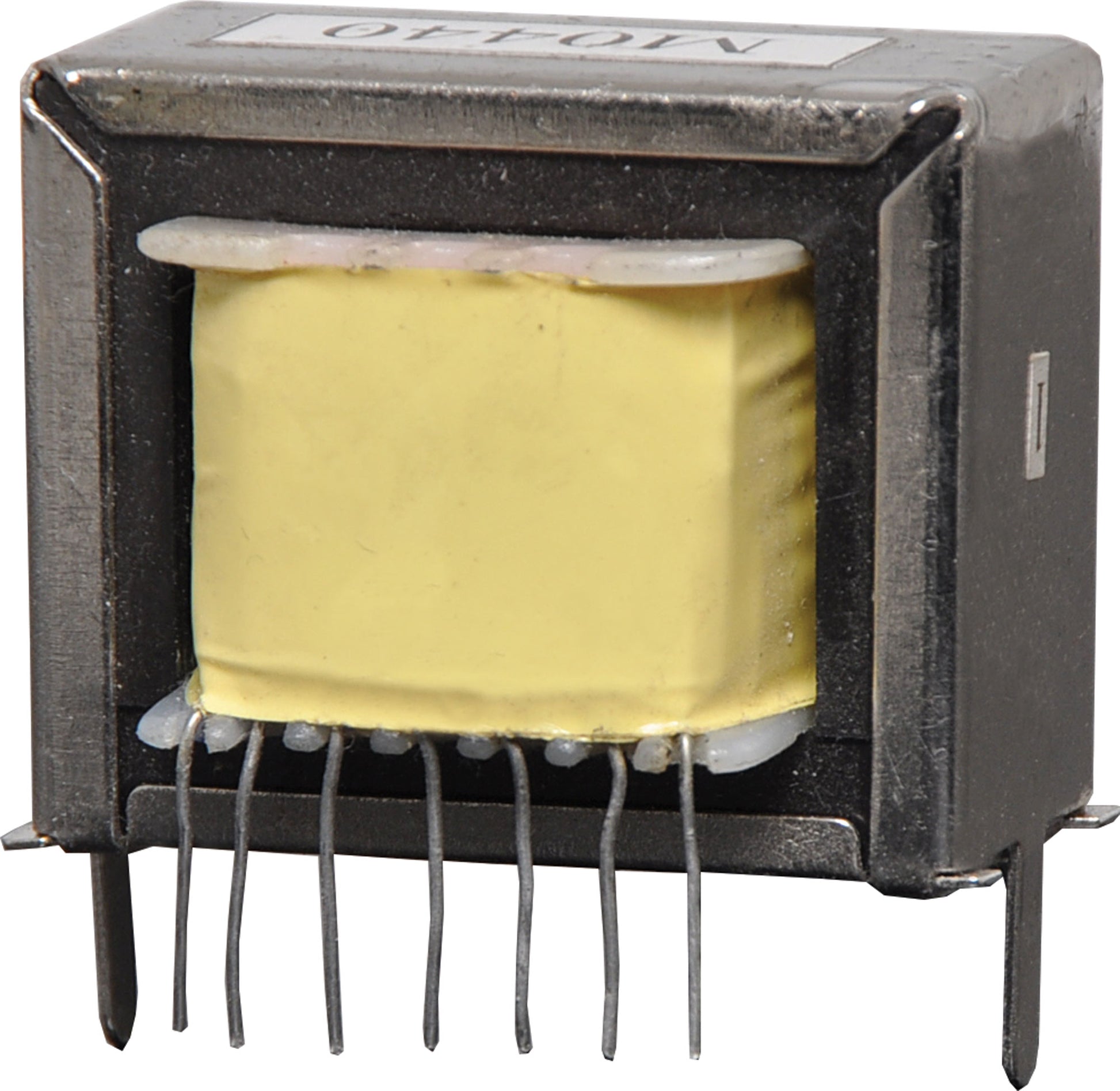

Audio Transformer 40W Attenuator 100V Line M0440

Audio Transformer 40W Attenuator 100V Line M0440

Regular price $16.75
Regular price Sale price $16.75
Sale Sold out
Taxes included.

A 6 step auto transformer designed for use with 100v or 70V line PA audio systems. This enables the user to tap from the line the required level. Taps are spaced in 4.5db steps.
Power rating 40 watts RMS.

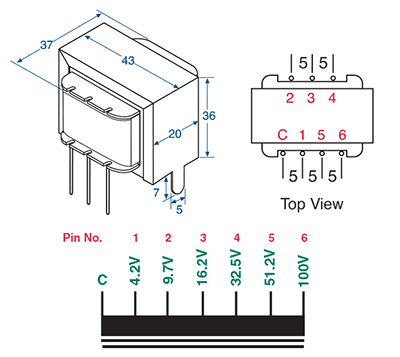

Dimensions

Specifications

  • Primary Taps: 0V, 4.2V, 9.7V, 16.2V, 32.5V, 51.2V, 100V.
  • Frequency Response: 70Hz - 18kHz
