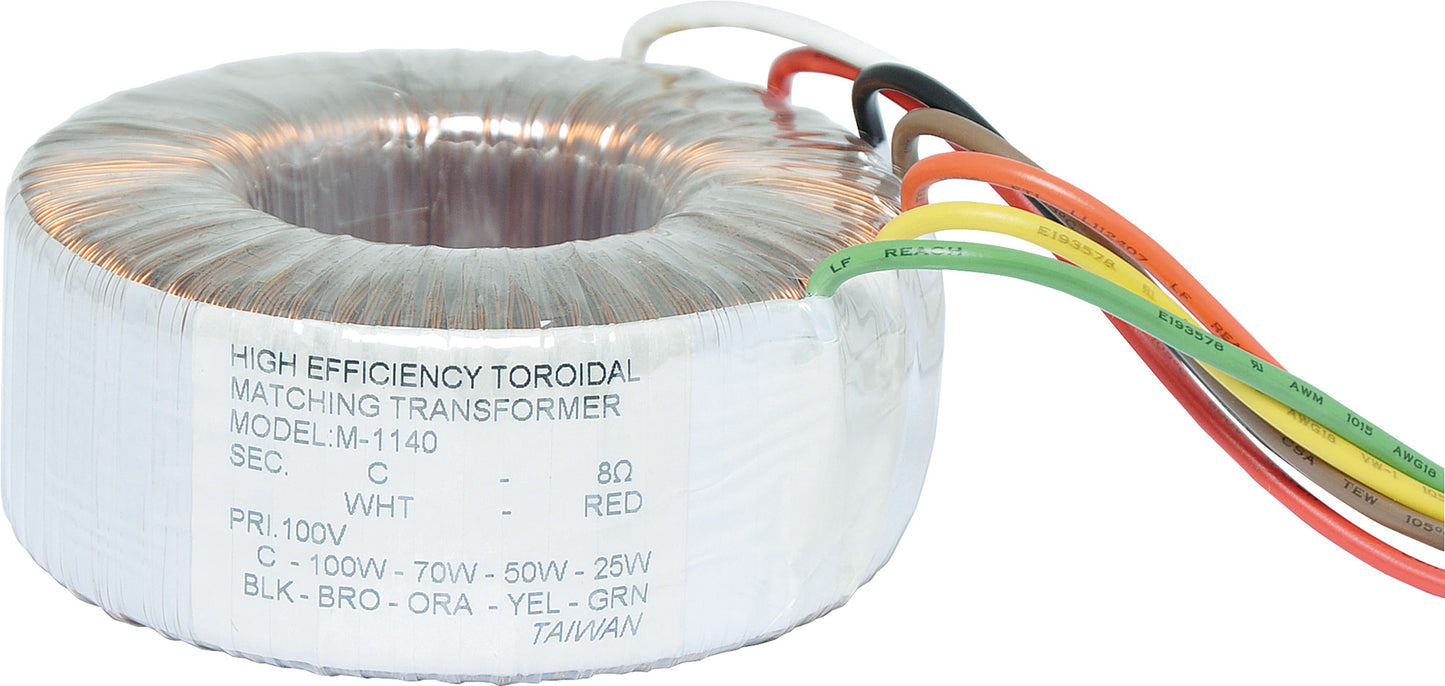

High efficiency 100V line toroidal audio transformers with high output power. Designed for matching 8 ohm speakers to 100V line amplifier systems.
Specifications
- Power taps: 25, 50, 70, 100W
- Dimensions: 103 x 45mm
- Frequency response: 40Hz - 20kHz ±3dB
- Fly lead length: 200mm
- Efficiency: 90%
- Insertion loss: 0.8dB max.
