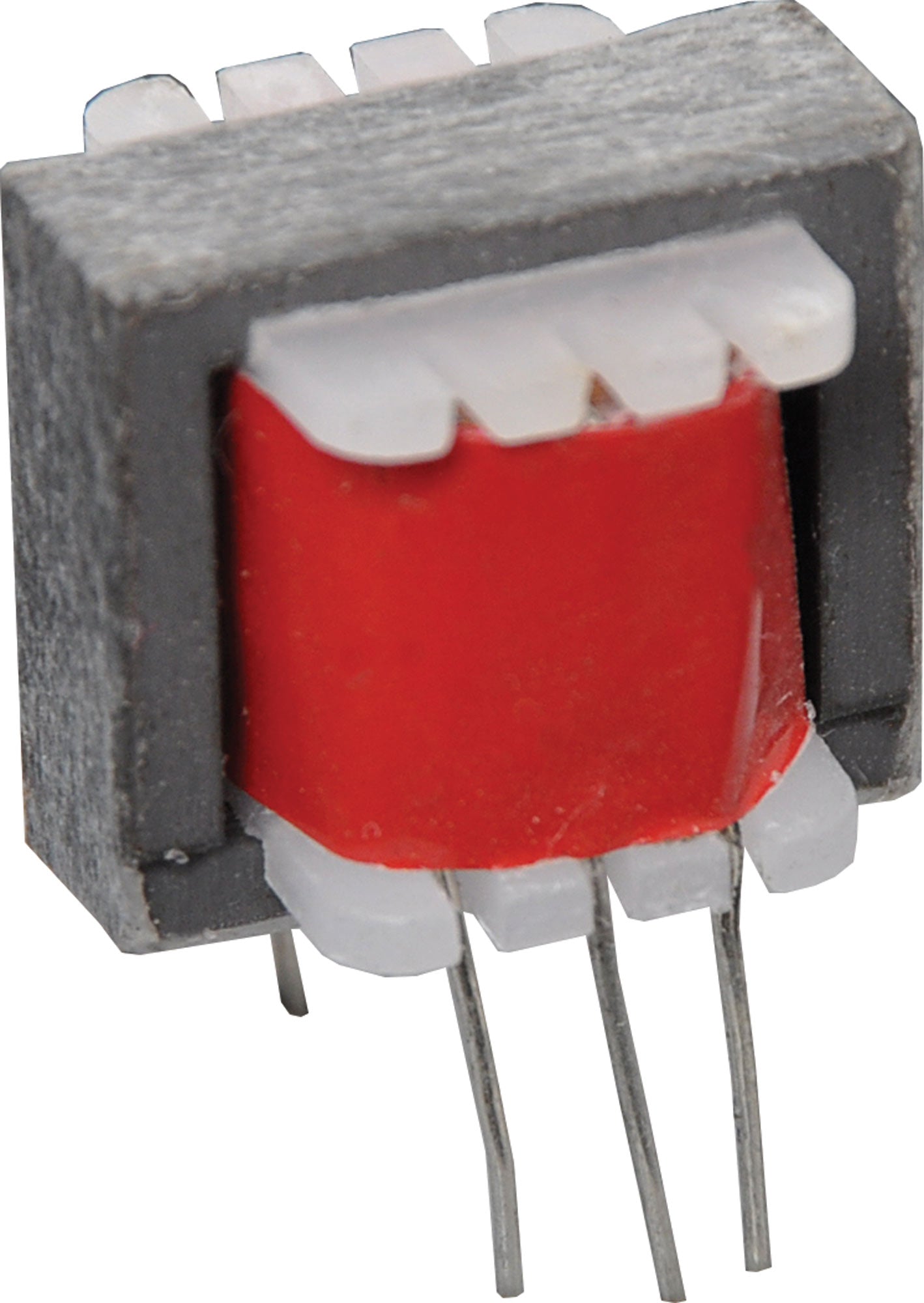

Audio Transformers 3k Ohm / 3k Ohm Audio Coupling Transformer M0222
Audio Transformers 3k Ohm / 3k Ohm Audio Coupling Transformer M0222
Regular price
$5.25
Regular price
Sale price
$5.25
Unit price
per
Taxes included.
Couldn't load pickup availability
An audio coupling transformer is a type of transformer designed for use in audio circuits. Its primary function is to transfer an audio signal from one circuit to another while providing electrical isolation between the input and output sides. M 0222 is rated to 3k Ohm / 3k Ohm.
Specifications
- Impedance: 3kΩ CT / 3kΩ
- Freq. Response: 300Hz-3kHz ±2.5dB
- Rated Power: 450mW
- Primary DC Resistance: 220Ω ±10%
- Secondary DC Resistance: 270Ω ±10%
- Fly Lead Length: 7mm
