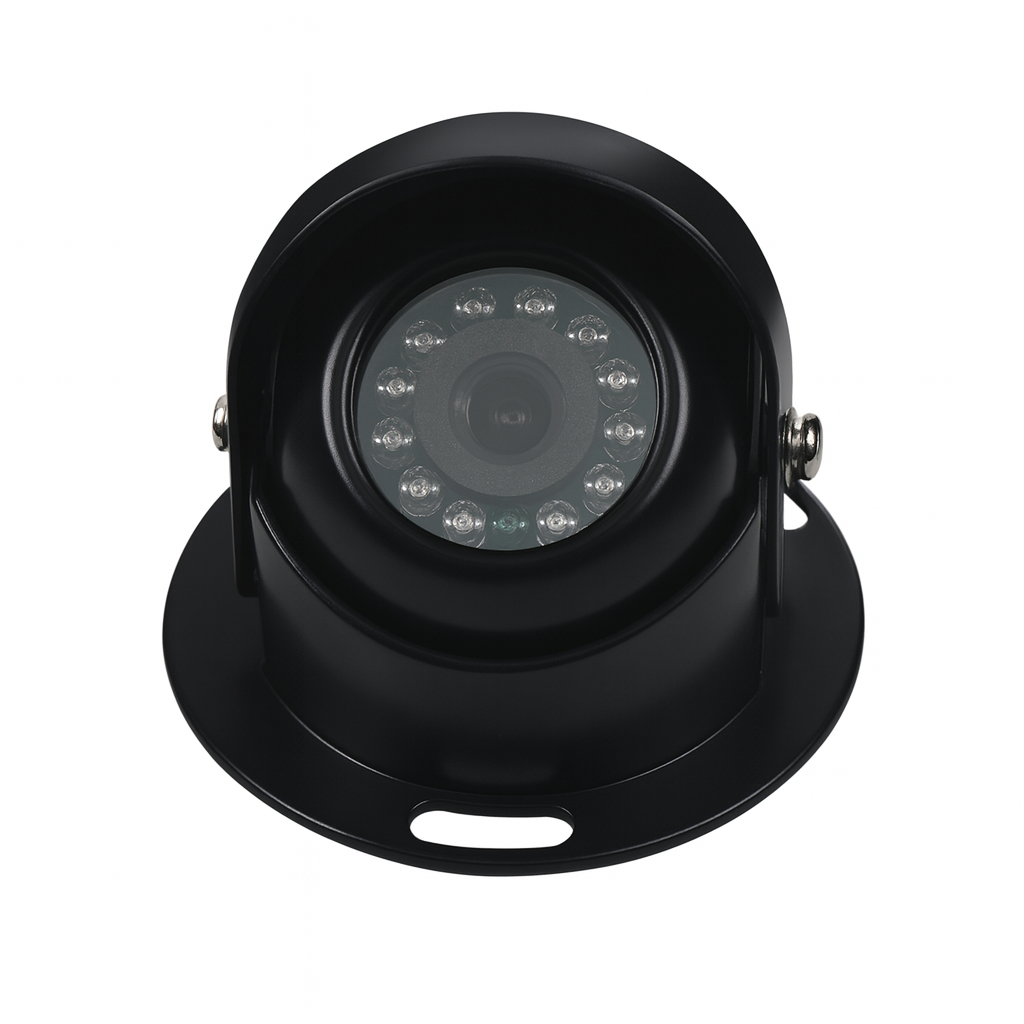

Autobacs Dome Camera Fhd 12v Ip67 Ir Night Vision Black FHD180B

High-definition black dome camera featuring 1920 x 1080 CMOS image sensor, 110° diagonal viewing angle, 12 infrared LEDs for night vision, IP67 waterproof rating, and 15-metre cable for caravan and RV monitoring applications.

Product Overview

The AUTOBACS FHD180B 1080P Dome Camera delivers reliable vehicle monitoring with clear full HD recording in a durable black dome-style design specifically engineered for caravan and RV applications. This professional-grade camera system features a CMOS image sensor providing crystal-clear 1920 x 1080 effective pixel resolution with PAL signal system compatibility for high-definition image quality. The comprehensive 110° diagonal viewing angle with 95° horizontal and 55° vertical viewing angles provides extensive coverage for interior or exterior monitoring requirements.

Engineered with IP67 ingress protection rating, this dome camera withstands dust ingress and water spray exposure for reliable performance in various Australian weather conditions. The integrated 12-piece infrared LED array delivers 0.1 Lux low-light performance with infrared night vision capability ensuring clear visibility during night-time or low-light monitoring situations. The black finish dome design provides discreet monitoring coverage suitable for exterior mounting or security-conscious applications where visible deterrence is preferred.

The 70mm x 63mm dimensions including mounting bracket enable straightforward installation on ceilings, walls, or overhead locations with the included 15-metre cable providing extensive routing flexibility for various vehicle layouts. Operating across -20°C to +70°C temperature range with 90% humidity tolerance and consuming less than 3W power with maximum 250mA current draw from 12V DC supply, this camera connects through standard 4-pin connector for reliable integration with compatible monitoring systems.

Key Features

Full HD 1080P Recording - Professional CMOS image sensor delivering 1920 x 1080 effective pixel resolution with PAL signal system compatibility, ensuring crystal-clear full HD image quality for reliable vehicle monitoring, security recording, and situational awareness in caravan, RV, and motorhome applications with clear detail capture for incident documentation.

Wide 110° Dome Coverage - Comprehensive 110° diagonal viewing angle with 95° horizontal and 55° vertical coverage providing extensive monitoring range from a single dome camera position, minimising blind spots and delivering complete visibility of interior spaces, entry points, or exterior perimeter areas with optimal positioning flexibility.

Advanced Infrared Night Vision - Integrated 12-piece infrared LED array providing 0.1 Lux low-light performance with infrared night vision capability, ensuring clear visibility during night-time monitoring, camping in remote locations without external lighting, or low-light interior conditions without disturbing occupants with visible illumination.

IP67 Weather Protection - Professional IP67 ingress protection rating ensuring complete protection against dust ingress and water spray exposure, delivering reliable performance throughout various Australian weather conditions including rain, humidity, dust storms, and temperature extremes for dependable outdoor or indoor monitoring applications.

Extended 15-Metre Cable - Generous 15-metre cable length providing extensive routing flexibility for various caravan and RV layouts, enabling installation from front to rear sections, through overhead channels, around furniture, or across exterior mounting positions without requiring cable extensions or additional junction boxes for clean professional installations.

Black Dome Design - Discreet black finish dome-style housing measuring 70mm x 63mm including mounting bracket, providing professional security monitoring coverage with visible deterrence effect suitable for exterior mounting or security-focused applications with 4-pin connector for straightforward installation compatibility and less than 3W power consumption with maximum 250mA current draw.

Technical Specifications

Image Performance

• Image Sensor: CMOS
• Effective Pixels: 1920 x 1080
• Image Quality: FHD (Full HD)
• Signal System: PAL
• Illuminance: 0.1 Lux
• IR Night Vision: Yes
• LED Light: 12 pieces

Viewing Angles

• Diagonal Viewing Angle: 110°
• Horizontal Viewing Angle: 95°
• Vertical Viewing Angle: 55°

Construction & Protection

• Ingress Protection: IP67
• Colour: Black
• Dimensions: 70mm x 63mm (Including Bracket)
• Cable Length: 15 metres

Environmental Specifications

• Operating Temperature: -20°C to +70°C
• Operating Humidity: 90%
• Storage Temperature: -30°C to +80°C
• Storage Humidity: 90%

Electrical Specifications

• Power Requirements: DC 12V
• Power Consumption: <3W
• Maximum Current: <250mA
• Connector: 4-PIN
