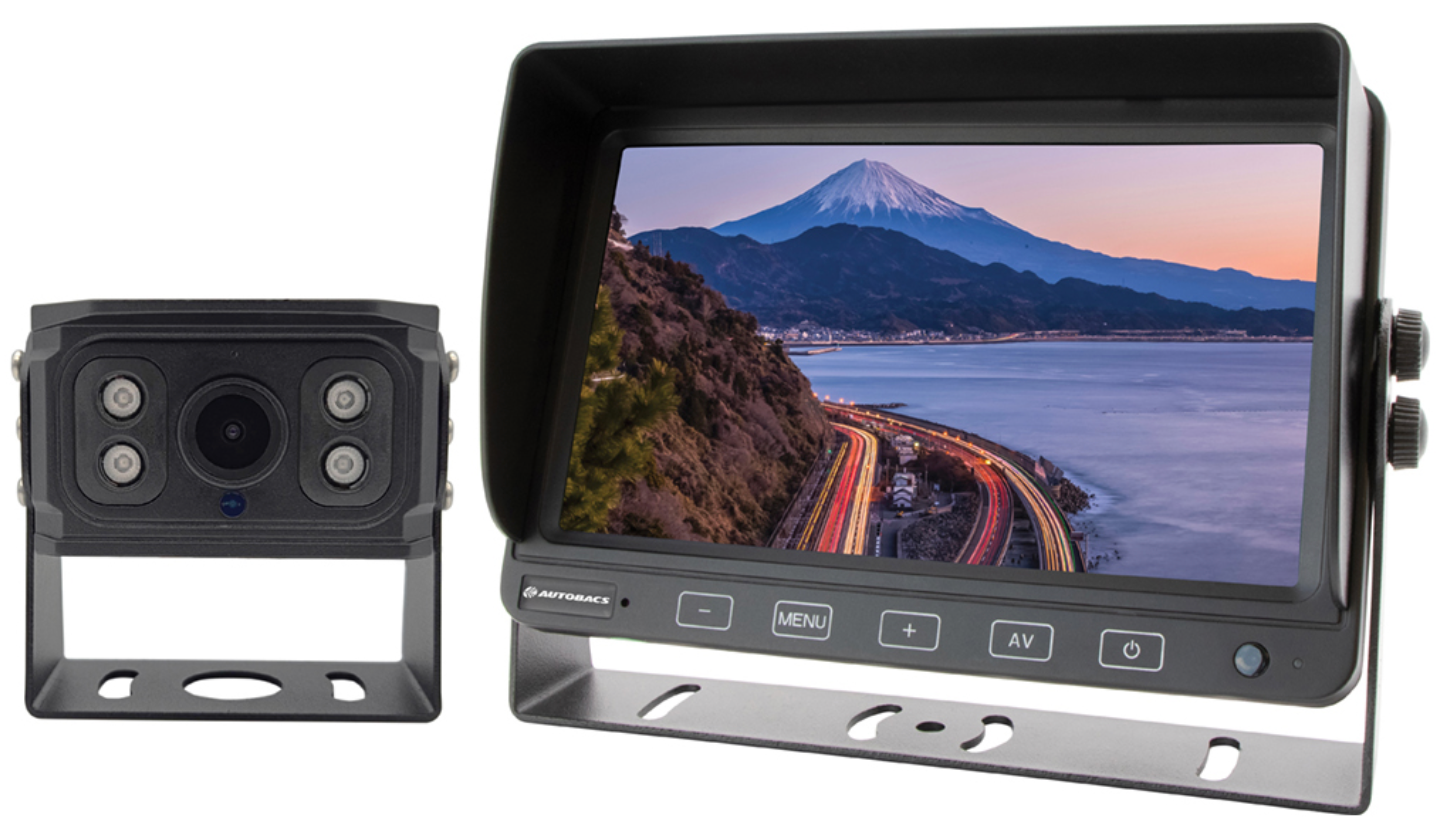

Autobacs Reverse Cam Kit 7in Hd7130k

A High Resolution 12/24V monitor kit that offers a clear image and enhanced view when reversing. Its Heavy-Duty construction makes it suitable for trucks, machinery and vehicles. The HD7130K also has the added flexibility of connecting up to 3 cameras. (1 camera included)

Specifications

7” MONITOR SPECIFICATIONS
– TFT Panel: New Grade A LCD
– LCD Size: 7-Inch Diagonal
– Display Format: 16:9
– Resolution: (1024 x 600)
– Brightness: < 500 CD/M2
– Viewing Angles: 70° Left/Right/Up/Down
– Video System: Auto PAL/NTSC Select
– Video Connect: (3 x 4-Pin Male)
– Camera Triggers: (3 – CAM 1, CAM 2 & CAM3)
– Monitor View: Normal/Mirror/Flip/Mirror-Flip Image Select
– Buttons: Touch Sensitive
– Guidelines: Selectable On/Off
– Audio: Built-in
– Operating Temp: -20°C to +70°C
– Power Input: 10-32V DC (Negative Ground)
– Dimensions: (179W x 122H x 28Dmm excluding bracket)
– Operating Temp: -20°C ~ +60°C
