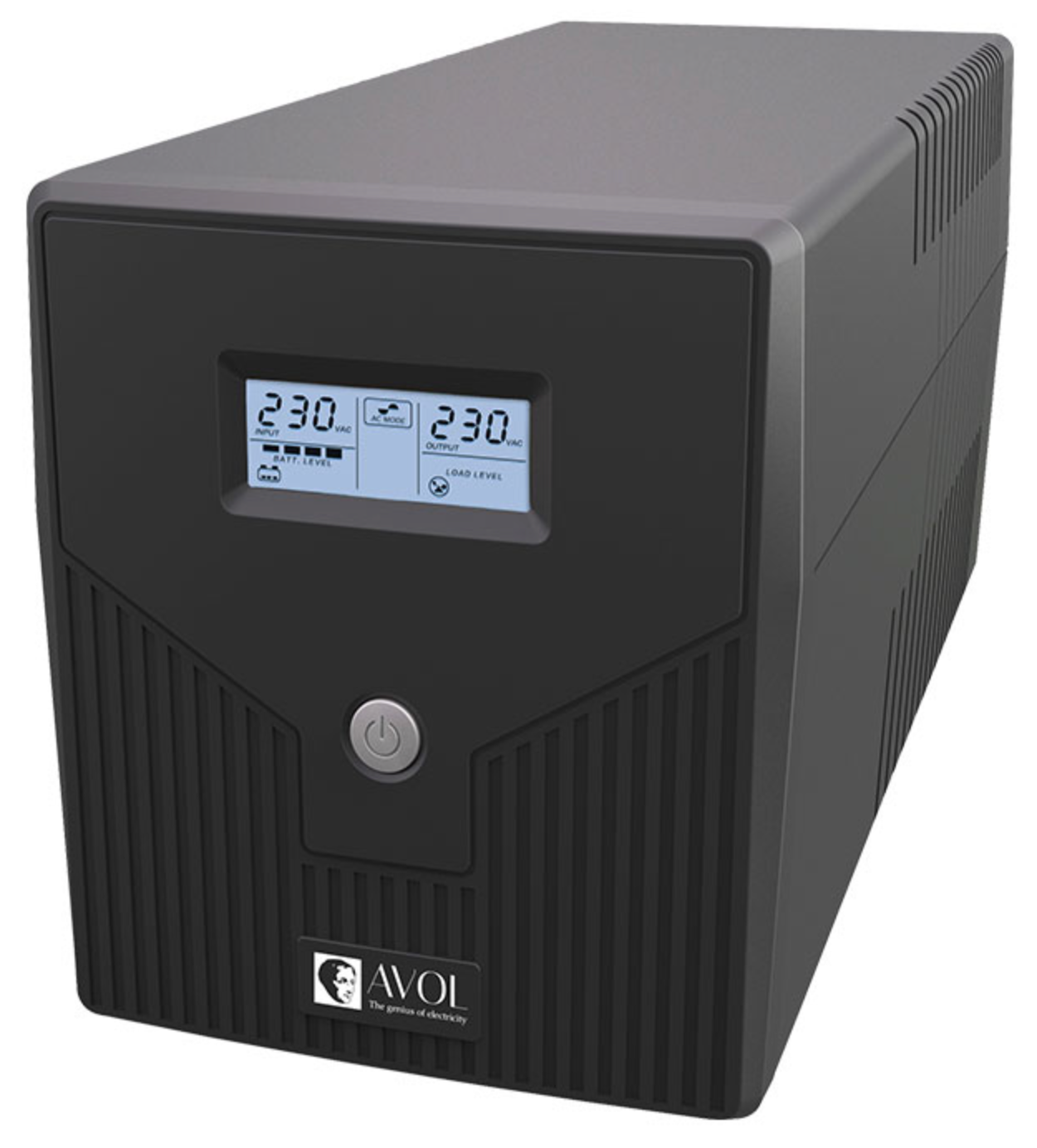

AVOL UPS Interactive 1000va 600w 2x12v Battery 3XGPO UPS-C1000-L
AVOL UPS Interactive 1000va 600w 2x12v Battery 3XGPO UPS-C1000-L
Couldn't load pickup availability
Provide short-term battery power for your security systems during power outages with the AVOL Uninterruptible Power Supply range. These UPSs protect electronics from overloads and overcharges, while also providing temporary backup power during outages. Manage the system via USB or RS232 connection to any PC, Mac or Linux computer.
This UPS range features mini-LCD displays, providing real-time info on AC mode, battery mode, battery level & power load.
Features:
• Line interactive UPS with simulated sinewave outputs
• Backup & protection for up to three Australian 3-Pin devices
• Overload and overcharge protection
• Prevent hardware damage from sudden power spikes
• Boost and buck AVR for voltage stabilisation
• Auto-restart when power is restored after outage
• Alarm alerts for battery mode, faults and low power
• LCD display with power and battery information
Links and Downloads
AVOL UPS-C Uninterruptible Power Supplies Datasheet (PDF)
Specifications
General
| Capacity | 1000VA / 600W |
| Operation | Line Interactive |
| Protection | Overload, Overcharge |
Input
| Input | 230VAC |
| Voltage Range | 170 ~ 280VAC |
| Frequency Range | 50/60Hz (auto sensing) |
Output
| Output Voltage Range | ±10% |
| Frequency Range (Battery Mode) | 50/60Hz ±1Hz |
| Transfer Time | 2-6ms |
| Waveform (Batt. Mode) | Simulated Sinewave |
| Output Sockets | 3 x AUS Power Sockets |
Battery
| Battery Voltage | 12VDC |
| Battery Type | 2 x 12V/7Ah |
| Recharge Time | 6-8 hours to 90% capacity (Average) |
Interface
| Indicators | AC Mode, Battery Mode, Load Level, Battery Level |
| Alarm | Overload - Tone every 0.5 seconds / Low battery - Tone every 1 second / Battery mode - Tone every 10 seconds / Battery replacement - Tone every 2 seconds / Fault - Continuous tone |
| Management | USB & RS232 (Windows 2000 to 10, Linux, Unix, MAC) |
Environment
| Noise Level | <45dB |
| Operating Environment | 0 ~ 40°C / 90%RH |
| Dimensions | 149 x 338 x 162mm |
| Weight | 7.8kg |
| Warranty (Years) | 2 |
Shipping Weight and Dimensions
Includes product packaging
| Width | 400 mm |
| Height | 190 mm |
| Depth | 230 mm |
| Weight | 7.80 kg |
