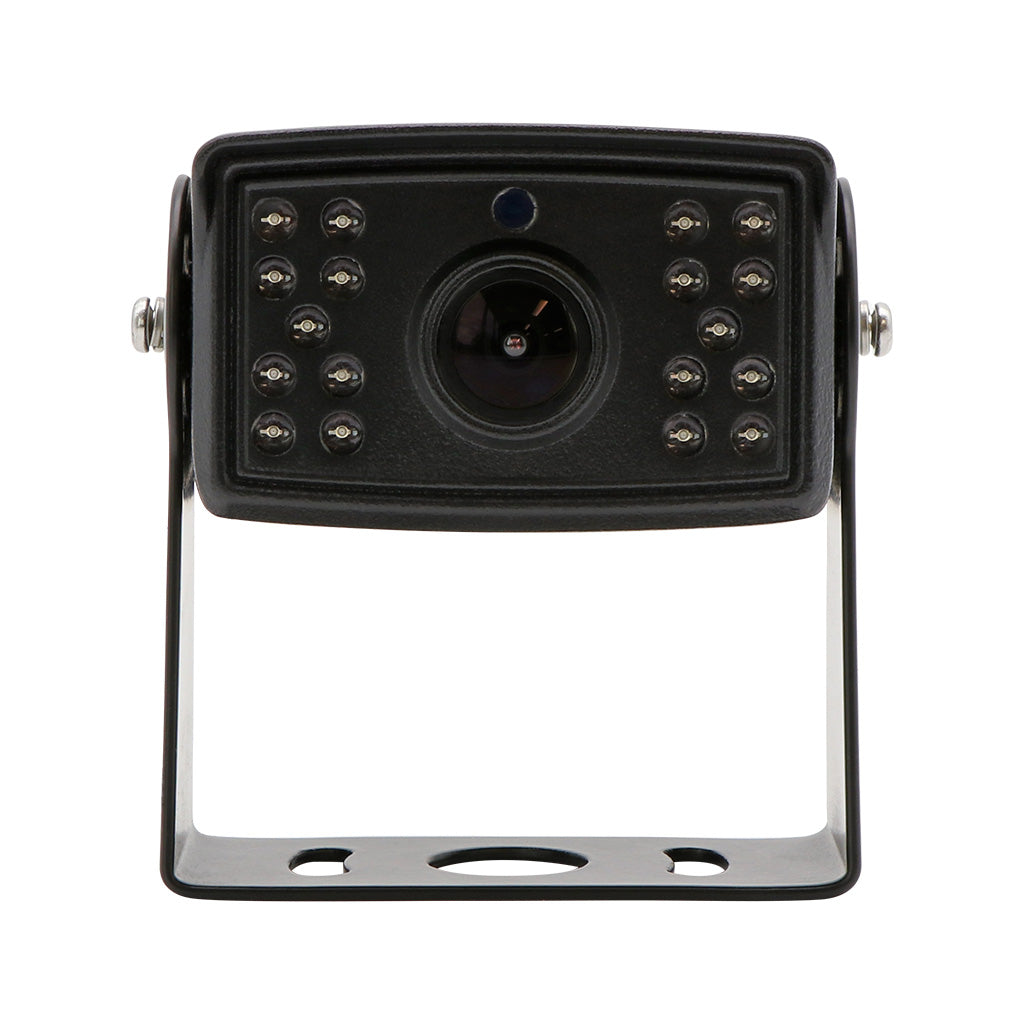

Axis Reverse Camera FHD 1080p 145deg AHD FHD20

The FHD20 camera is designed for heavy-duty use and offers a wide-view angle. With its IP69K high weatherproof rating, it is built to withstand harsh weather conditions. The camera features a universal 4-Pin connection, making it compatible with high-resolution monitors. Its crystal-clear image quality provides an enhanced view of your surroundings, allowing for better visibility and awareness.

Instruction Manual

FHD20_Product_Sheet

Specifications

• Image Device: CMOS 1/2.8” SONY IMX307
• Diagonal Viewing Angle: 145°
• Horizontal Viewing Angle: 125°
• Signal System: PAL
• Effective Pixels: 1920(H) x 1080(V)
• Resolution: 1080p
• Compatibility: High Resolution Monitors
• Sync System: Internal
• Orientation: Mirror Image
• Night Vision: 18 Infrared LED’s
• Illumination: 0.1 Lux with IR on
• Ingress Protection: IP69K
• Integrated Microphone: Yes
• Operating Temp: -20 to 70° C
• Power Consumption: 3W, 250mA
• Dimensions (Excl. Bracket): 76W x 47.2H x 72.2D mm
• Connection: Universal Standard 4-Pin Male
• Power Supply: 12V DC
• Power Consumption: <3W
• Max Current: <250mA
