Battery Charger 6A 24V Sealed Lead Acid (SLA) A4506

SKU: 9321758162620

Price:
$915

Ideal for PA systems & other applications requiring battery backup. This all new model incorporates a highly efficient, intelligent, multi stage switchmode battery charger ensuring optimum battery charging and performance.

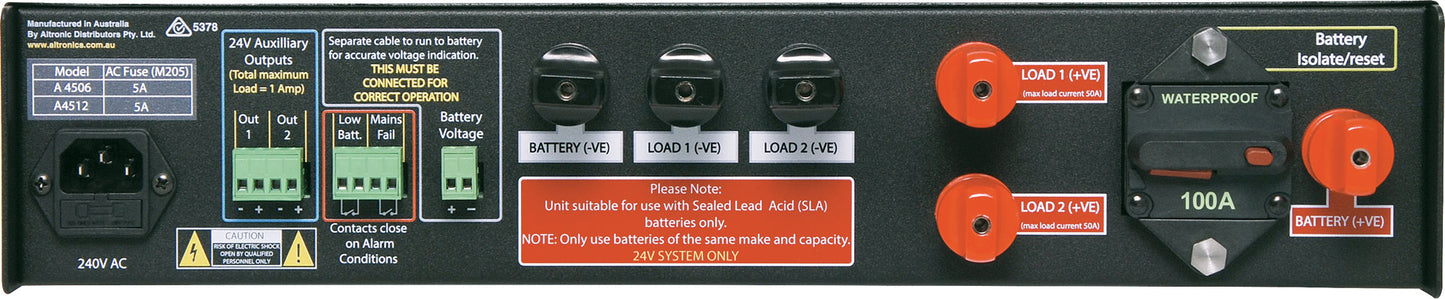

An auxiliary 24V DC 1 amp power supply is provided to run ancillary devices without interfering with the charging cycle. Connected loads to this circuit automatically switch to the battery when mains fails. The circuit includes a host of protection to protect both the charger and batteries.

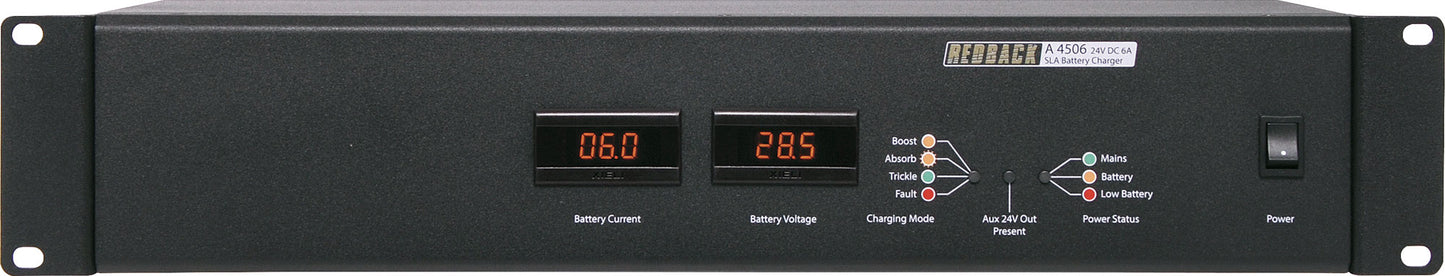

These include reverse polarity connection, low battery disconnect feature and battery isolator/circuit breaker. Large heavy duty binding posts are included for battery and load terminals. Individual panel meters are provided for battery voltage and charge current. In normal operation, the panel meters indicate battery charge current and battery voltage. When mains fails, the meters show the load current being drawn (indicated by a minus symbol) and actual battery voltage.

Features

  • 2RU 19" rack mount
  • Short circuit protection
  • Electronic reverse polarity protection
  • Multi stage charging
  • Automatic boost and float voltages
  • Precision control of boost and float voltage settings
  • Digital battery voltage and current meters
  • Charging indicator
  • End of charge (trickle) indicator
  • Suits sealed, vented lead acid and gel batteries
  • Low battery cut off
  • 2 switched 50A outputs
  • Australian designed & manufactured

Mains failure battery backup operation:
With mains power failure the connected batteries are relay switched to the load via two 50A terminals. A sensing circuit disconnects the load when the minimum permissible discharge voltage is reached, thus preventing permanent battery damage. This charger is specifically designed for use on sealed lead acid batteries, gel technology batteries and standard vented lead acid batteries.

Instructions

Specifications

  • Input voltage: 240V AC 50Hz
  • Boost voltage: 29.4V DC
  • Float voltage: 27.6V DC
  • Typical charge times: 24Ah 6Hrs, 40Ah 10Hrs
  • AC Load (max): 1A
  • Dimensions: 483W x 330D x 88H mm
  • Weight: 8kg
