Battery Charger Sealed Lead Acid (SLA) 12A 24V A4512

SKU: 9321758162637


Ideal for PA systems & other applications requiring battery backup. This all new model incorporates a highly efficient, intelligent, multi stage switchmode battery charger ensuring optimum battery charging and performance.

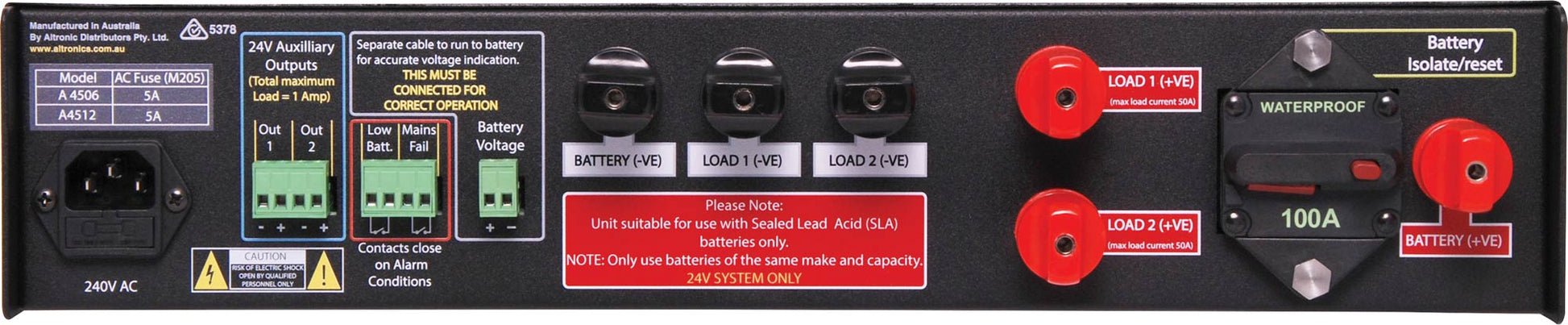

An auxiliary 24V DC 1 amp power supply is provided to run ancillary devices without interfering with the charging cycle. Connected loads to this circuit automatically switch to the battery when mains fails. The circuit includes a host of protection to protect both the charger and batteries. These include reverse polarity connection, low battery disconnect feature and battery isolator/circuit breaker. Large heavy duty binding posts are included for battery and load terminals.


  • 2RU 19" rack mount
  • Short circuit protection
  • Electronic reverse polarity protection
  • Multi stage charging
  • Automatic boost and float voltages
  • Precision control of boost and float voltage settings

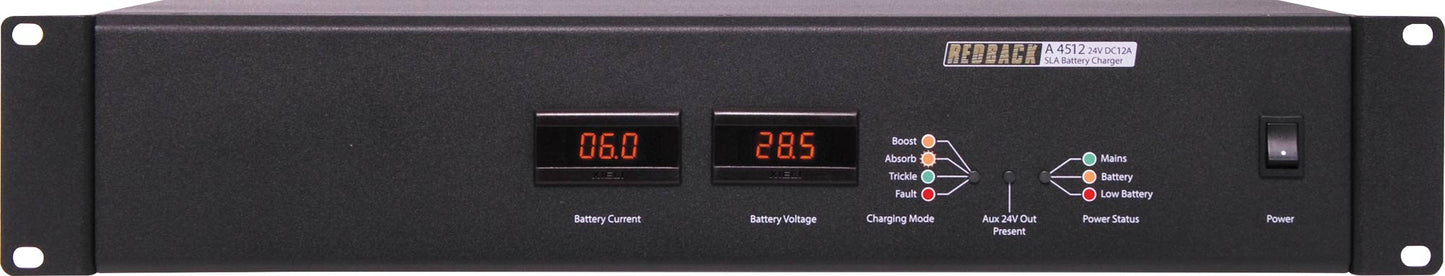

  • Digital battery voltage display
  • Charging indicator
  • End of charge (trickle) indicator
  • Suits sealed, vented lead acid and gel batteries
  • Low battery cut off
  • 2 switched 50A outputs
  • Australian designed & manufactured


Mains failure battery backup operation: With mains power failure the connected batteries are relay switched to the load via two 50A terminals. A sensing circuit disconnects the load when the minimum permissible discharge voltage is reached, thus preventing permanent battery damage. This charger is specifically designed for use on sealed lead acid batteries, gel technology batteries and standard vented lead acid batteries.


  • Input voltage: 240V AC 50Hz
  • Boost voltage: 29.4V DC
  • Float voltage: 27.6V DC
  • ac Load (max): 2A
  • Dimensions: 483W x 330D x 88H mm
  • Weight: 9kg
