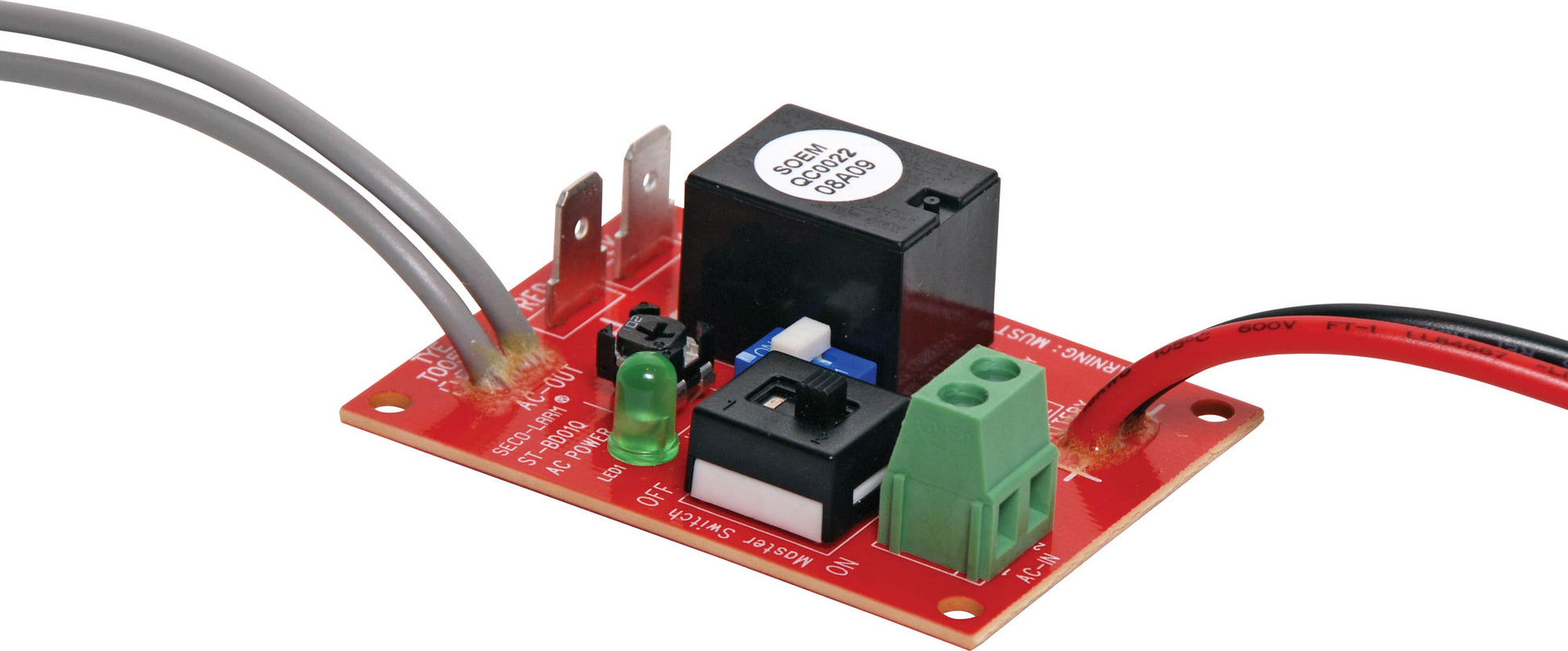

Battery Chargers Low Battery Cut Off Module M8550

Battery Chargers Low Battery Cut Off Module M8550

$37.95
$37.95
Sale Sold out
Taxes included.

Compatible with both 12 and 24V batteries, this cut off module prevents deep discharge of SLA backup batteries in security & UPS backup systems. This ensures longer battery service life. Simple in-line connection between battery and control panel. Cut off point is adjustable between 9-10V in a 12V system or 19.2-20.3V in a 24V system. A master on/off switch is also provided for disconnecting the battery from the control panel.

Instructions

Specifications

  • 12V cut off point: 9-10V
  • 24V cut off point: 19.2-20.3V
  • Relay contact rating: 7A @ 30VDC
  • LED indicators:
  • Green: AC
  • Red: 12VDC
  • Blue: 24VDC
  • Connections:
  • AC input: Terminal block
  • AC output: Grey wire leads
  • DC Quick-connect terminal (battery side)
  • On-board male spade terminal
  • Dimensions 60 x 45 x 22 mm.
