Battery Isolator Key Switch 12v 100a Continuous S2690A

Name: Battery Isolator Key Switch 12v 100a Continuous S2690A
Brand: Altronics
SKU: 9321758245712
Price: 19.95 AUD
Availability: InStock

$19.95

Sale Sold out

Taxes included.

Quantity

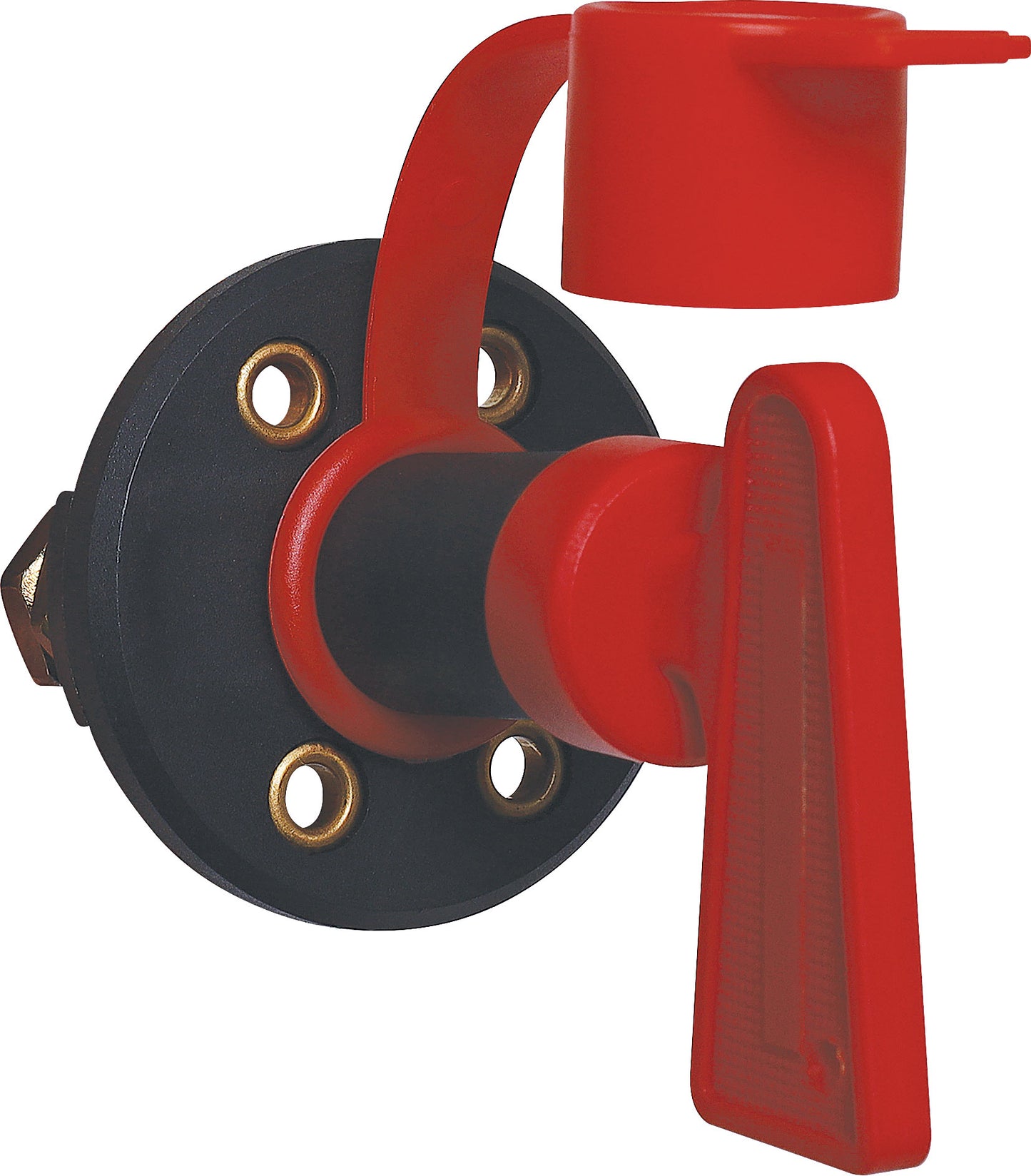

This waterproof battery disconnect switch is made up of 1 x battery switch, 1 x key and 1 x waterproof cover. The key can be tightly fitted to prevent battery depletion and theft. The waterproof cover can prevent dust and water and extend service life. Key is removable. Rubber cap prevents dust and debris building up.

Features

Sturdy construction
Great compatibility
Safety protection
Wide range of applications

Data Sheet

Specifications

Performance

Circuit: 2P, ON/OFF
Rated Voltage: 60V
Rated Current: 300A
Insulation Resistance: ≥100MΩ
Contact Resistance: ≤50MΩ
Dielectric Strength: ≥1500V AC (min)
Cycle Life: ≤10,000 cycles

Material

Spring: Spring steel wire
Nut: Brass H59
Shaft Terminals: Brass H59 M10
Contact Plate: Manganese steel
Base/Housing/Bracket/Insert/Handle: PA66+10%GF

View full details
