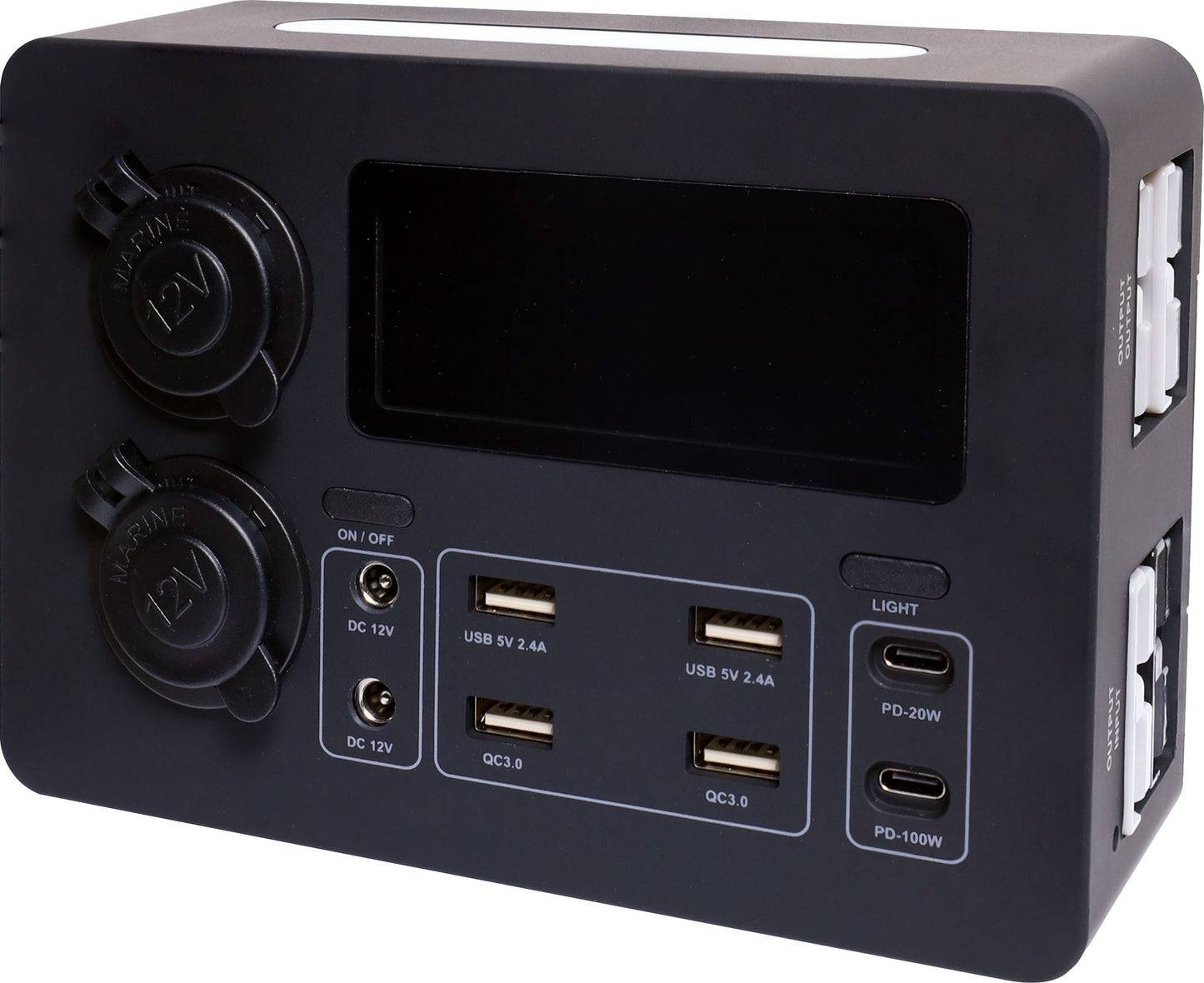

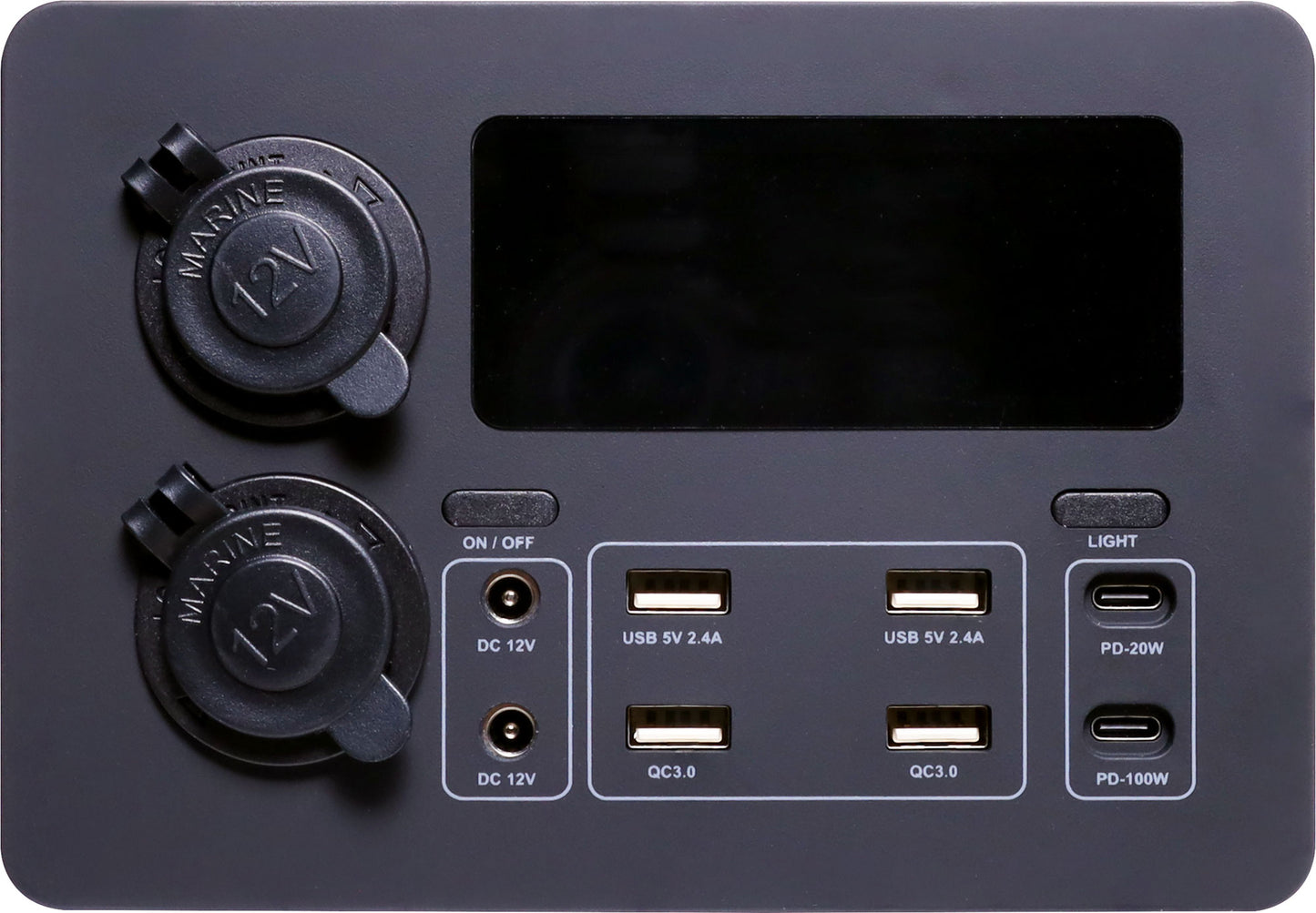

This compact DC power control hub allows you to easily distribute power to appliances and devices from your 12/24V auxiliary power battery. It’s capable of connecting up to 13 appliances simultaneously, including via car accessory sockets, DC jack outputs, USB type A QC3.0 ports and two USB C power delivery ports. Plus three 50A Anderson style output connections for powering other appliances such as camping fridges, site lighting and more. It can be used with all deep cycle battery types including AGM, LiFePO4 (lithium), Wet, Gel and Calcium types. The housing is constructed from durable UL94V-0 ABS plastic for a high level of durability.

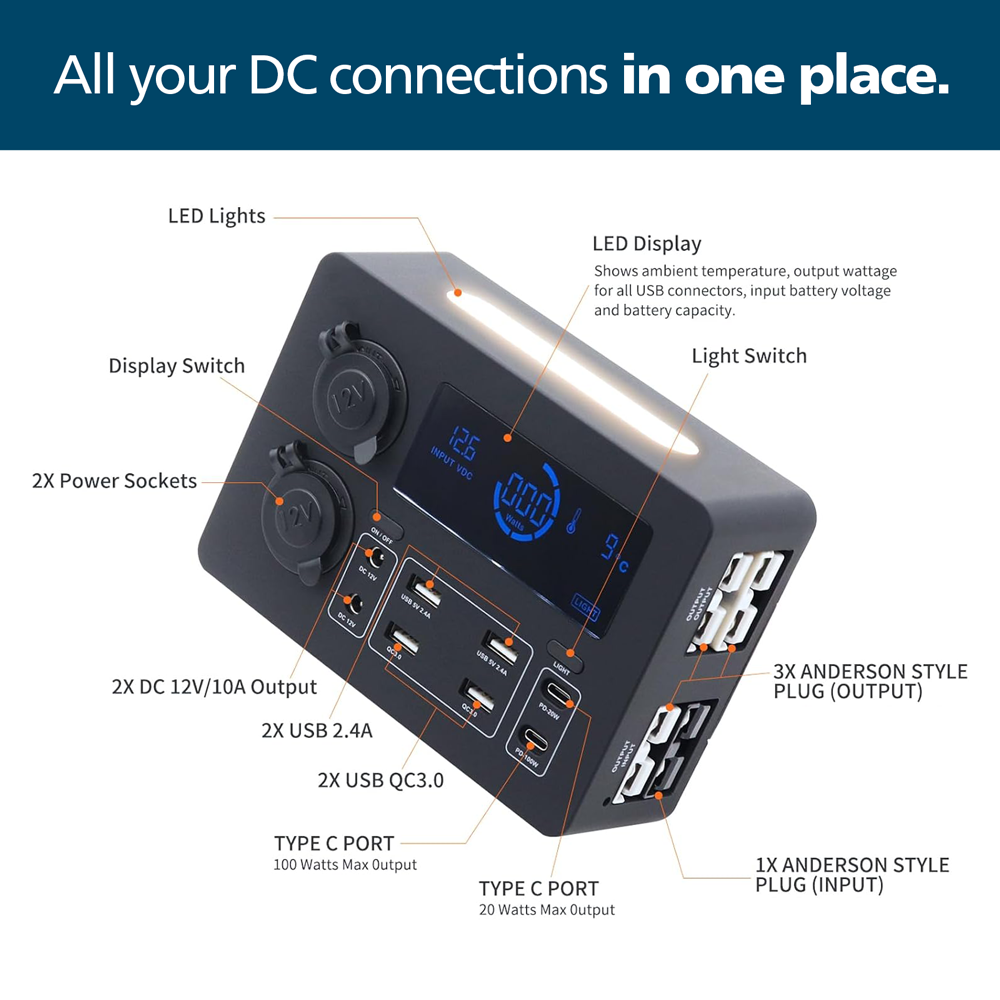

Features
- A complete pre-wired DC connection solution for your auxiliary battery.
- Ideal for caravans, 4WDs and motorhomes.

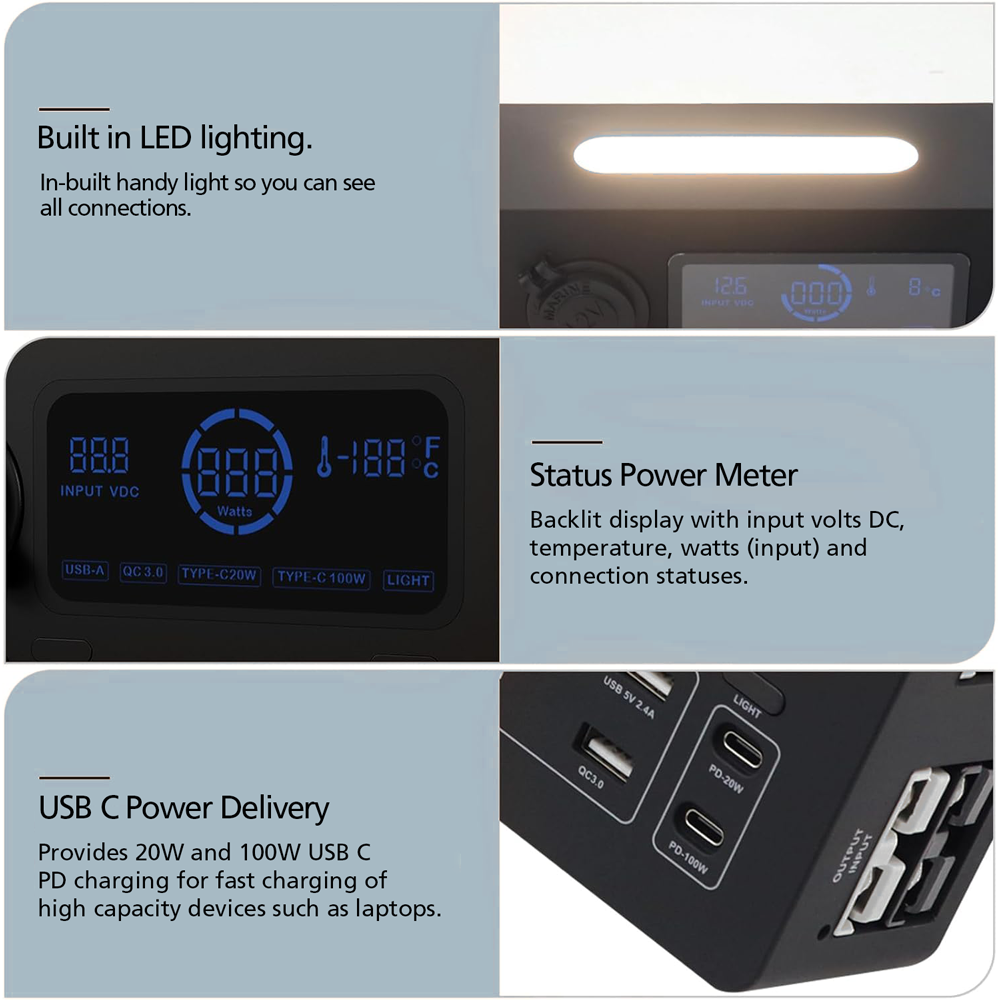

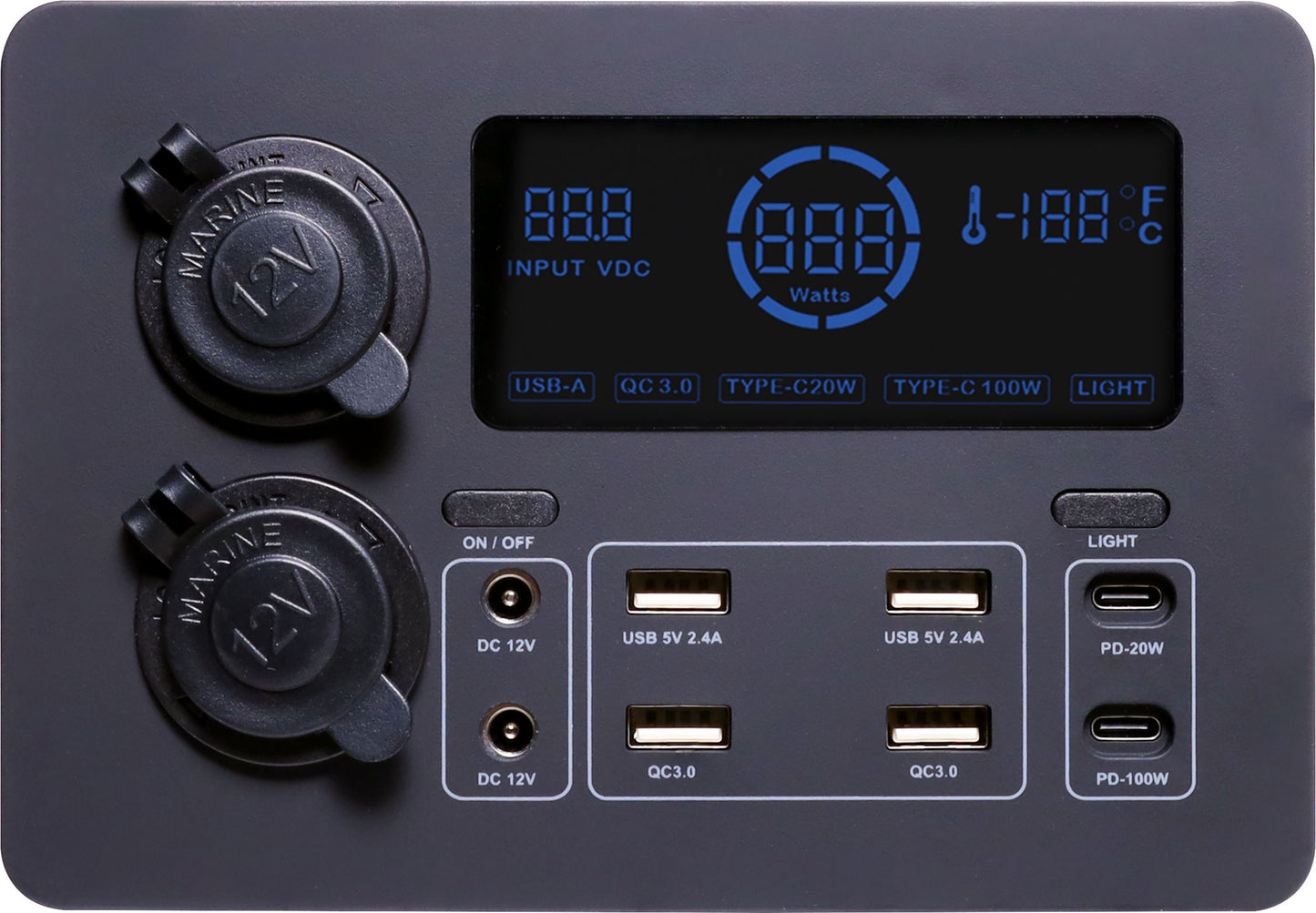

- Backlit display readout with input volts DC, temperature, watts (input) and connection statuses.
- Power up to 13 different devices/appliances at once!
- USB charging: 2 x 2.4A USB-A outputs, 2 x QC3.0 USB-A outputs, 1 x USB-C PD 20W output, 1 x USB-C PD 100W output.

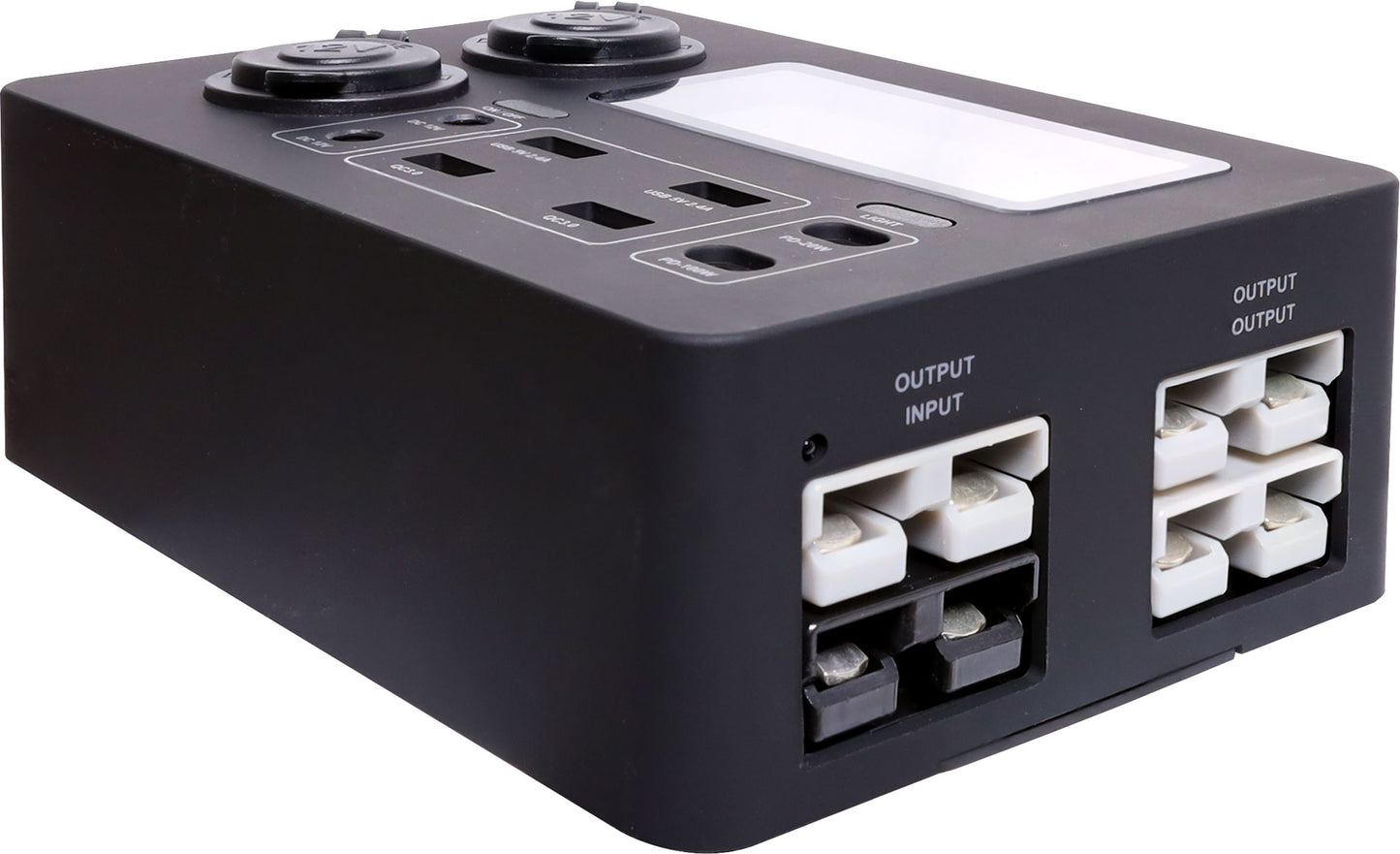

- Four 50A Anderson style connections (1 input, 3 output).
- Appliance power: 2 x car accessory sockets, 2x DC coaxial barrel outputs (5.5 x 2.1mm).
- Top mount LED torch light.
- Includes brackets for surface mounting.
Specifications
- Materials: ABS plastic
- Size: 170mm L x 120mm W x 64mm H
- Battery types: LiFePo4 (lithium), AGM, Calcium, Wet, Gel
- USB port: 5V 2.4A each
- USB port (QC3.0): 5V/3A, 9V/2A, 12V 1.5A (18W)

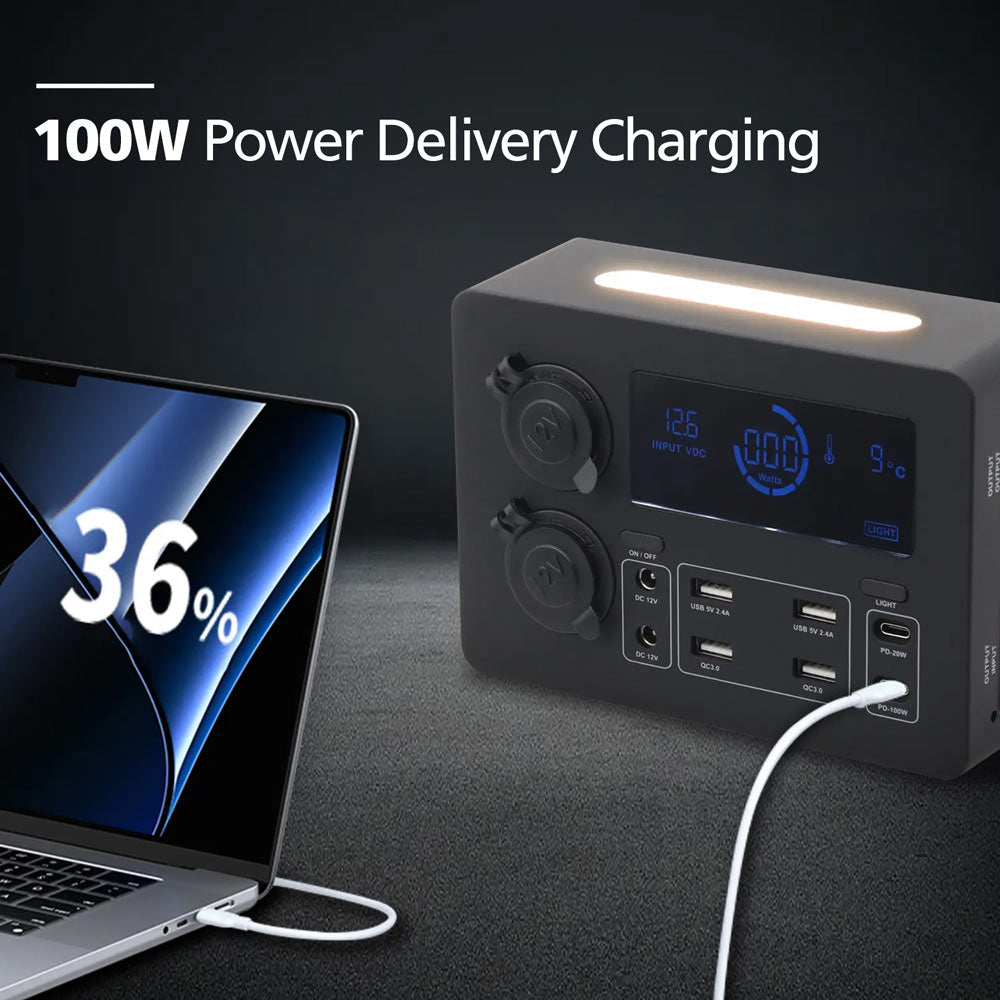

- USB port (100W power delivery): PD 3.0, 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A
- USB port (20W power delivery): PD 3.0, 5V/3A, 9V/2.22A, 12V/1.67A, PPS 3.3-11V/2A
- Car accessory socket: DC 12V 20A / DC 24V 10A
- DC jack: DC 12V 10A (2.1mm x 5.5mm)
- Anderson style plugs: 50A total
- Circuit breaker for Anderson style plugs: Auto reset 50A total
- Operating temperature: -5°C to 55°C
- Weight: 600g
