Bluestream Digital To Analogue Convertor - DAC12AU DAC12AU

Digital to Analogue Converter (DAC) - Simultaneous Analogue and Digital Output

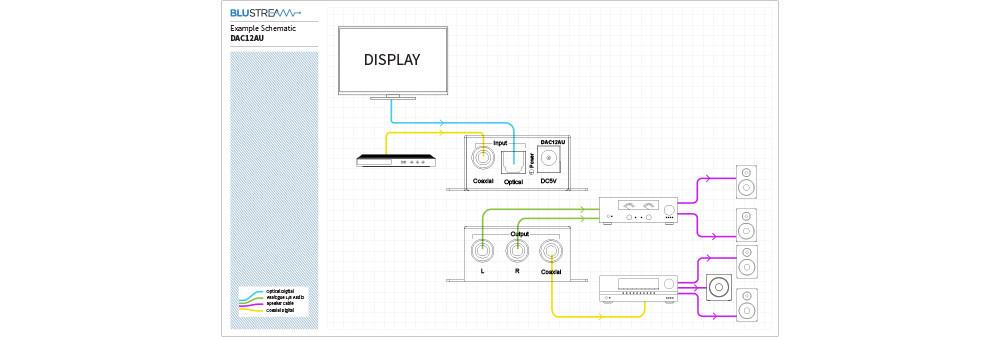

Our DAC12AU is designed to convert either Coaxial or Optical signals from a digital  signal to analogue stereo audio. The DAC12AU also includes a digital converter which converts Optical audio in to a Coaxial digital output. This provides the perfect cost effective solution when connecting the digital audio output from a TV display to an analogue input on an amplifier. The DAC12AU utilises 192kHz sample rates for enhanced sound reproduction.

• DAC (Digital to Analogue audio Converter) converts either Optical or Coaxial digital to analogue stereo Left/Right audio output
• Converts Optical digital audio input to Coaxial digital audio output
• Auto-detects digital connection in use
• Optical digital input has priority over Coaxial digital input
• Outputs Coaxial digital and analogue L/R audio concurrently
• Supports sample rates 32 kHz, 44.1kHz, 48 kHz, 96 kHz & 192 kHz up to 24-bit resolution
• Plug-and-pla

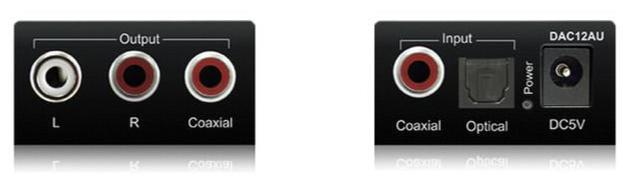

• Audio Input Connectors: 1x Optical digital & 1x Coaxial RCA (SPDIF)
• Audio Output Connectors: 2x Analogue stereo left/right & 1x Coaxial RCA (SPDIF)
• Dimensions (W x H x D): 50mm x 26mm x 42mm
• Dimensions including connections (W x H x D): 68mm x 26mm x 42mm
• Shipping Weight: 0.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)
• Power Supply: 5V/1A DC

Box Contents

1 x DAC12AU

1 x 5V/1A DC power supply

1 x Mounting kit

1 x User manual
