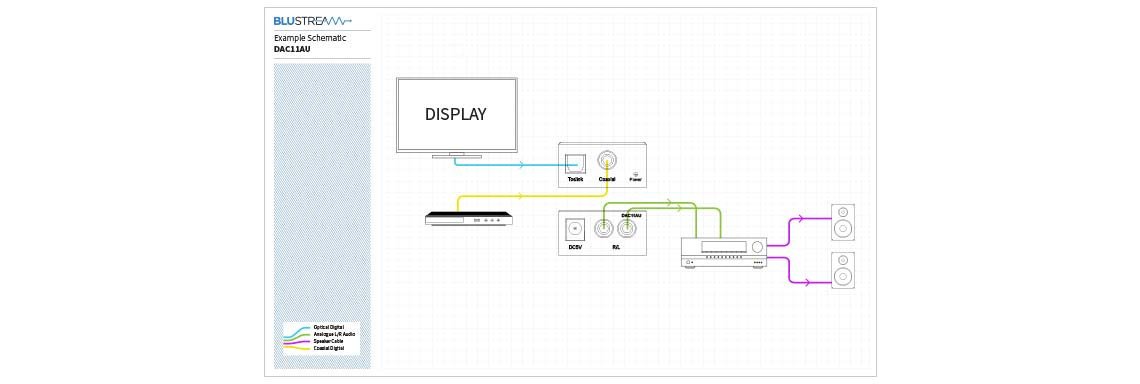

Our DAC11AU is designed to convert either Coaxial or Optical signals from a digital signal to analogue stereo audio. This provides the perfect cost-effective solution when connecting the digital audio output from a TV display to an analogue input on an amplifier. The DAC11AU utilises 192kHz sample rates for enhanced sound reproduction.
- DAC (Digital to Analogue Audio Converter) converts either digital optical or coaxial to analogue stereo left/right audio output
- Auto-detects digital connection in use
- Optical digital input has priority over coaxial digital input
- Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
- Plug-and-play solution

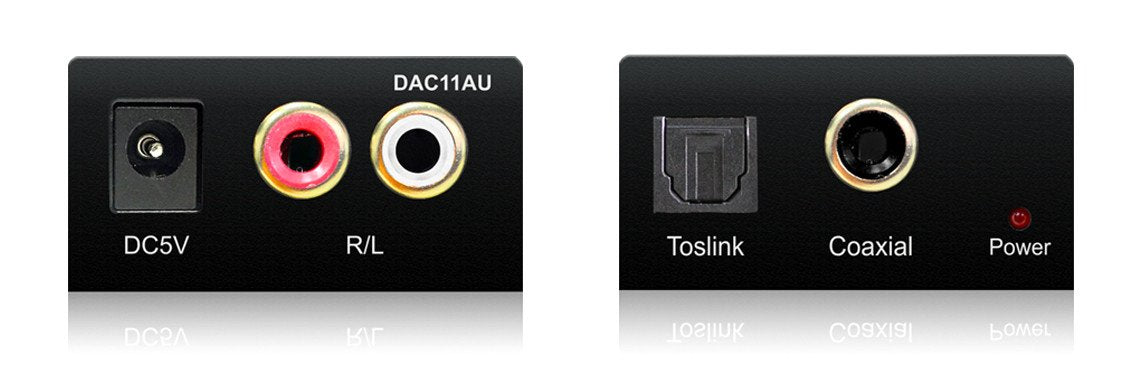

- Audio Input Connectors: 1x Optical (SPDIF) & 1x RCA (SPDIF)
- Audio Output Connectors: 2x Analogue stereo left/right (RCA)
- Product Dimensions (WxDxH): 45 x 65 x 25mm (with connections)
- Product Dimensions (WxDxH): 45 x 55 x 25mm (without connections)
- Product Weight: 0.1kg (excluding accessories)
- Carton / Box Dimensions (WxDxH): 95 x 135 x 55mm
- Shipping Weight: 0.3kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V / 1A DC, barrel type connection
- Mounting kit includedEndFragment
Box Contents
1x DAC11AU
1x 5V / 1A DC power supply
1x Mounting kit
1x User manual
