Blustream OPT41AU 4-way Optical Switch with DAC is suitable for integrating multiple audio sources with a soundbar. The OPT41AU takes four optical inputs and converts to stereo analogue and digital signals with support of 192kHz sample rates up to 24-bit resolution.
Specifications

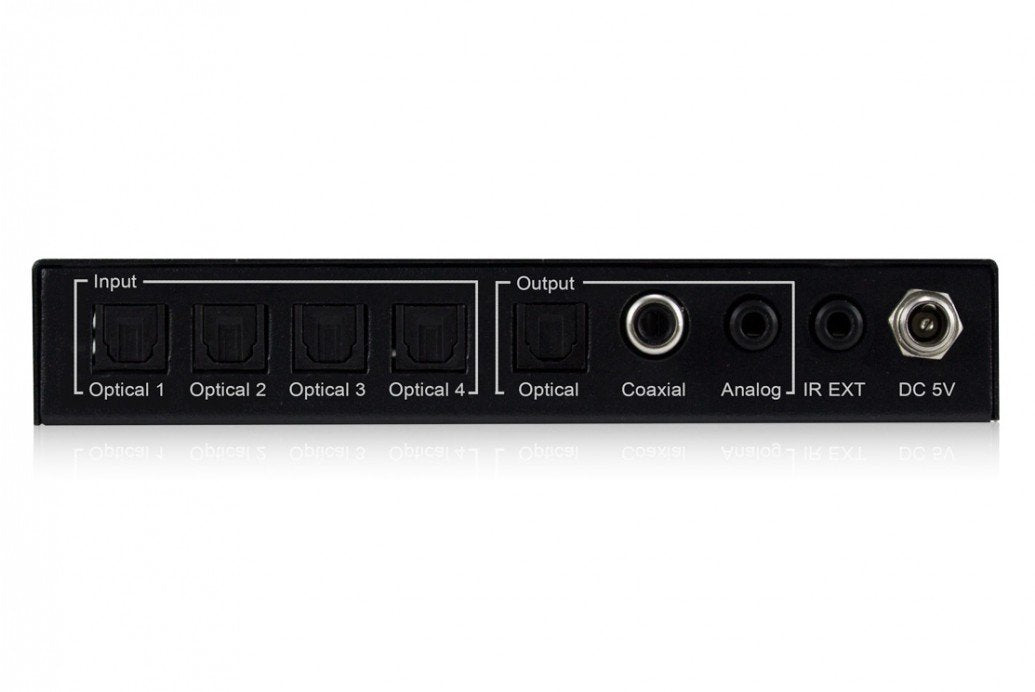

- Audio Input Connectors: 4x Optical (SPDIF)
- Output Connectors: 1x Optical (SPDIF), 1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)
- IR Input Ports: 1x 3.5mm stereo Jack
- Product Dimensions (WxDxH): 140 x 80 x 25mm (with connections)
- Product Dimensions (WxDxH): 140 x 70 x 25mm (without connections)
- Product Weight: 0.25kg (excluding accessories)
- Carton / Box Dimensions (WxDxH): 210 x 125 x 90mm
- Shipping Weight: 0.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V / 1A DC, screw type connector
- Mounting kit included
Box Contents
- 1x OPT41AU
- 1x IR Remote control
- 1x 5V / 1A DC power supply
- 1x Mounting kit
- 1x User manual
Key Features
- Features 4x optical SPDIF digital inputs which can be switched to single optical output
- DAC (Digital to Analogue Audio Converter) converts selected optical digital to analogue left/right stereo audio output
- Built-in digital audio converter converts selected optical audio input to coaxial digital output
- Outputs optical digital, coaxial digital and analogue left/right stereo audio concurrently
- Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
- Supports LPCM, DTS, Dolby Digital and Dolby Digital plus when used as a straight digital in / digital out switcher
- Ultra low jitter and high fidelity design

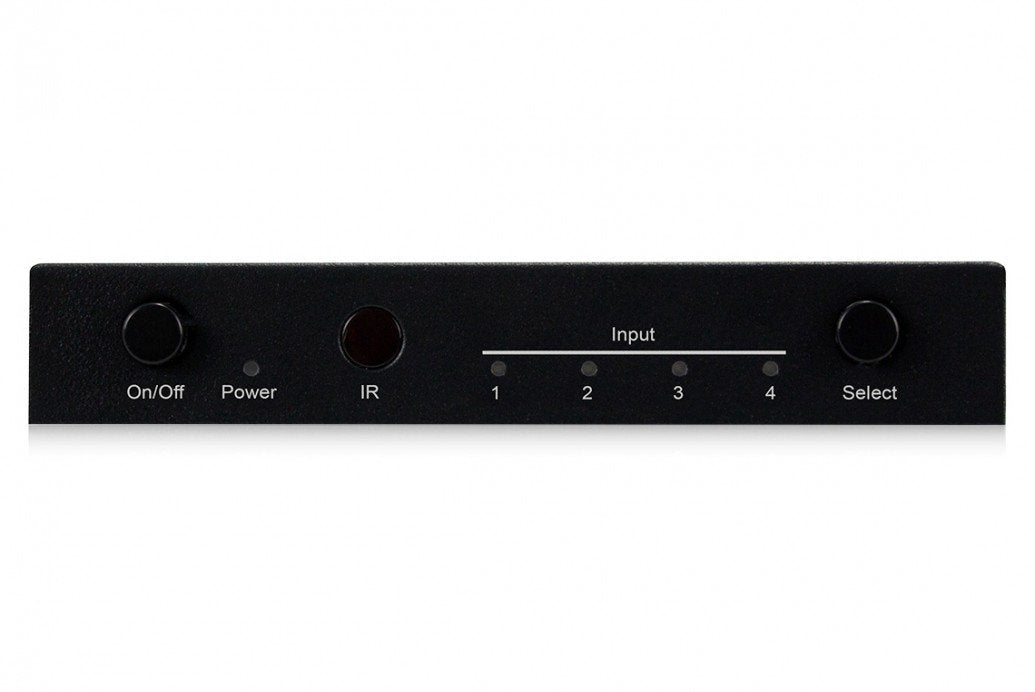

- Input selection button on front panel to toggle between optical inputs
- IR receiver on front panel to switch inputs and turn On / Off audio outputs using supplied IR remote
- External IR input can be used to extend IR with Blustream IR receiver cable
