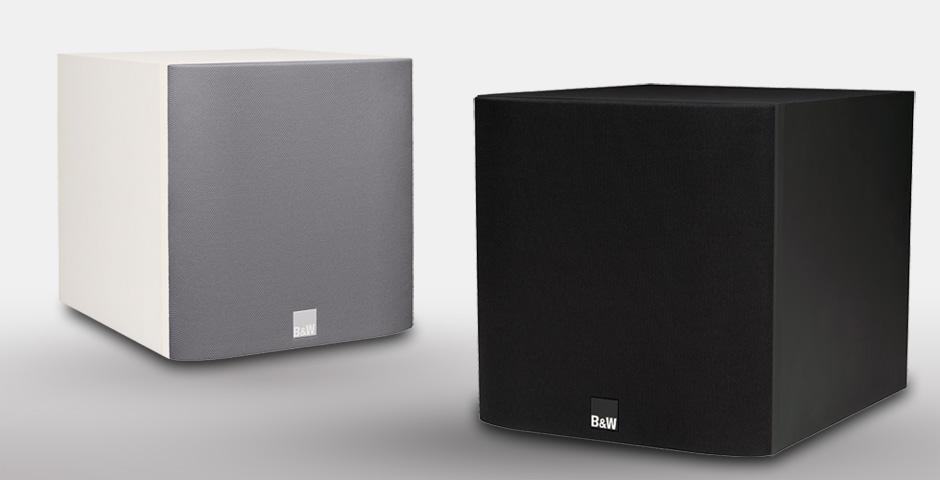

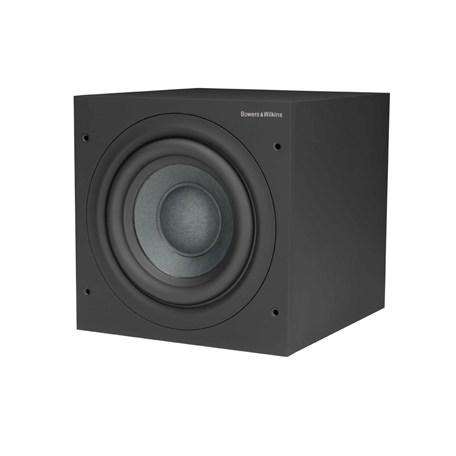

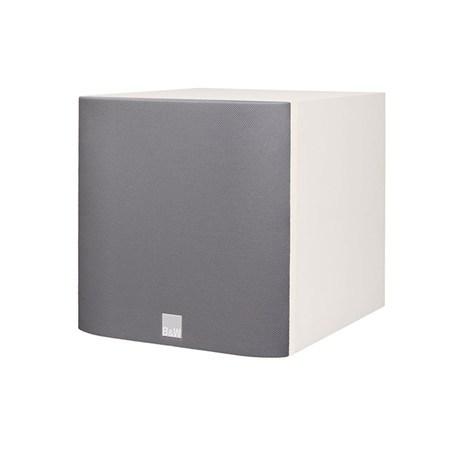

For big sound in smaller spaces, you can’t beat ASW608, the most compact of the 600 Series subwoofers.
Its long-throw 200mm driver allows the ASW608 to move the large volumes of air needed for high-quality low-frequency output, and its audiophile-standard 200W Class D amplifier keeps the unit running cool, even when the music or movie action is whipping up a storm.
In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar” fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.
Features
Volume level – line in
Volume level – speaker in
Low-pass filter frequency
Low-pass filter bypass (line in only)
Bass extension
Bass roll-off alignment
Auto sense on / standby
Phase switch
Model
ASW608
Drive unit
200mm (8in) paper / Aramid fibre cone long-throw
Power output
200W
Rated power consumption
40W
Standby power consumption
0.5W
Input impedance
33kΩ
Signal / noise
>90dB
Inputs
Stereo line in (RCA Phono)
Speaker in (Binding post)
12v trigger (3.5mm jack)
Dimensions
Height: 260mm (10.2in) not including feet or spikes
272mm (10.7in) including feet
288mm (11.3in) including spikes
Width: 260mm (10.2in)
Depth: 305mm (11.99in) not including grilles
330mm (13in) including grilles and controls
Net weight
8.85kg (19.5lb)
Cabinet finishes
Black
White
Grille finishes
Black
Grey
Shipping
10.95 kg 33.3 x 39 x 43 cm
