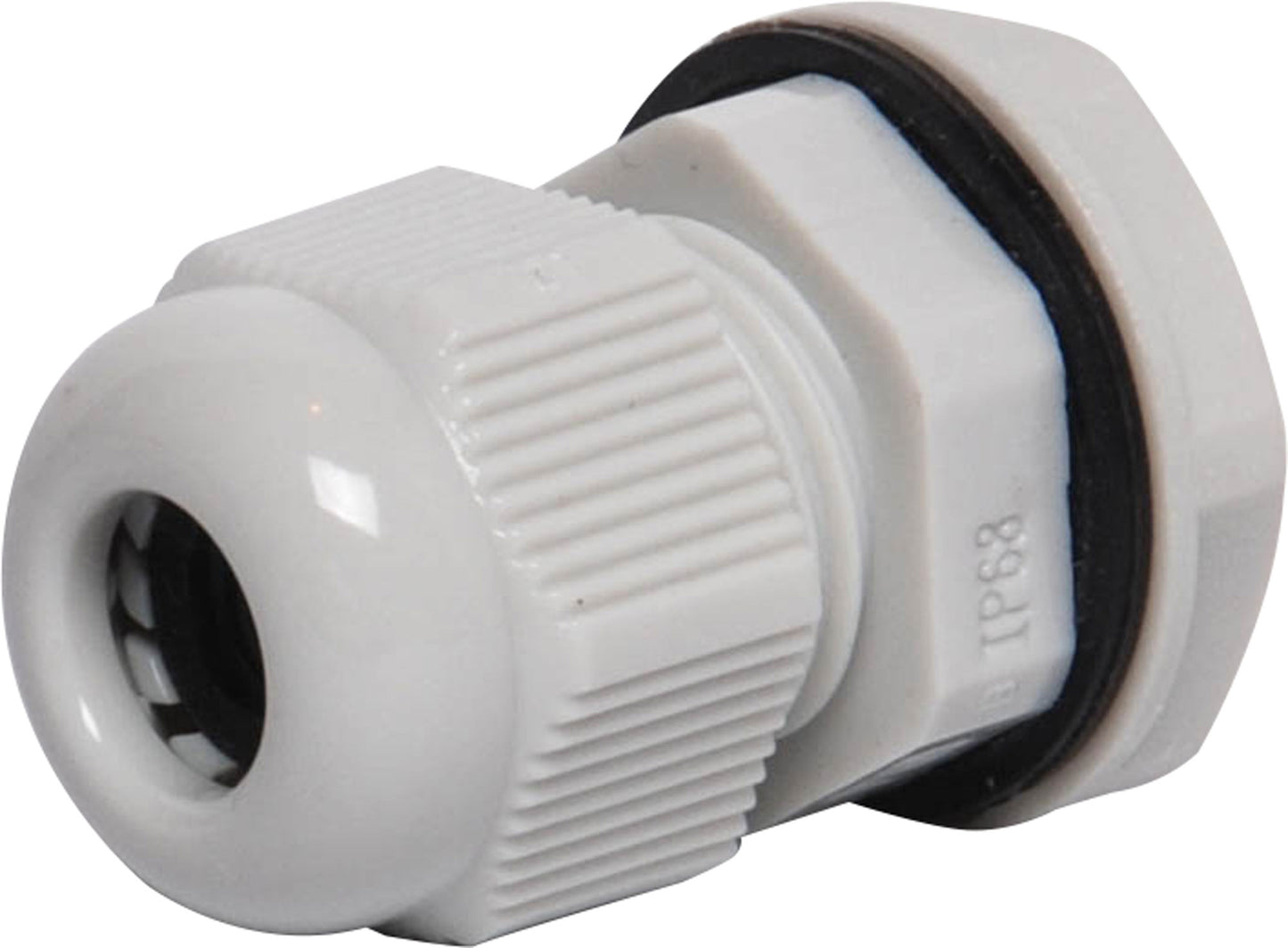

Cable Gland 3-6.5mm EG7/PG7 Grey IP68 Nylon H4305A
Cable Gland 3-6.5mm EG7/PG7 Grey IP68 Nylon H4305A
Regular price
$2.90
Regular price
Sale price
$2.90
Unit price
per
Taxes included.
Couldn't load pickup availability
PG7 size nylon cable gland with IP68 ingress protection rating. Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. Standard gland suits cable diameter 3mm to 6.5mm. Mounting hole Ø 12.5mm.
Specifications
- Cable Size: 3 - 6.5mm
- Chassis Hole: 12.5mm
- Spanner Size: 15mm
- Colour: Grey
- Material:PA (NYLON), UL 94
- Hermetic seal: NBR, EPDM
- O-Ring: EPDM
- Working temperature:
- - 40℃ to100℃ in static state
- Instantaneous heat resistance up to 120℃
- -20℃ to 80℃ in dynamic state
- Instantaneous heat resistance up to 100℃
