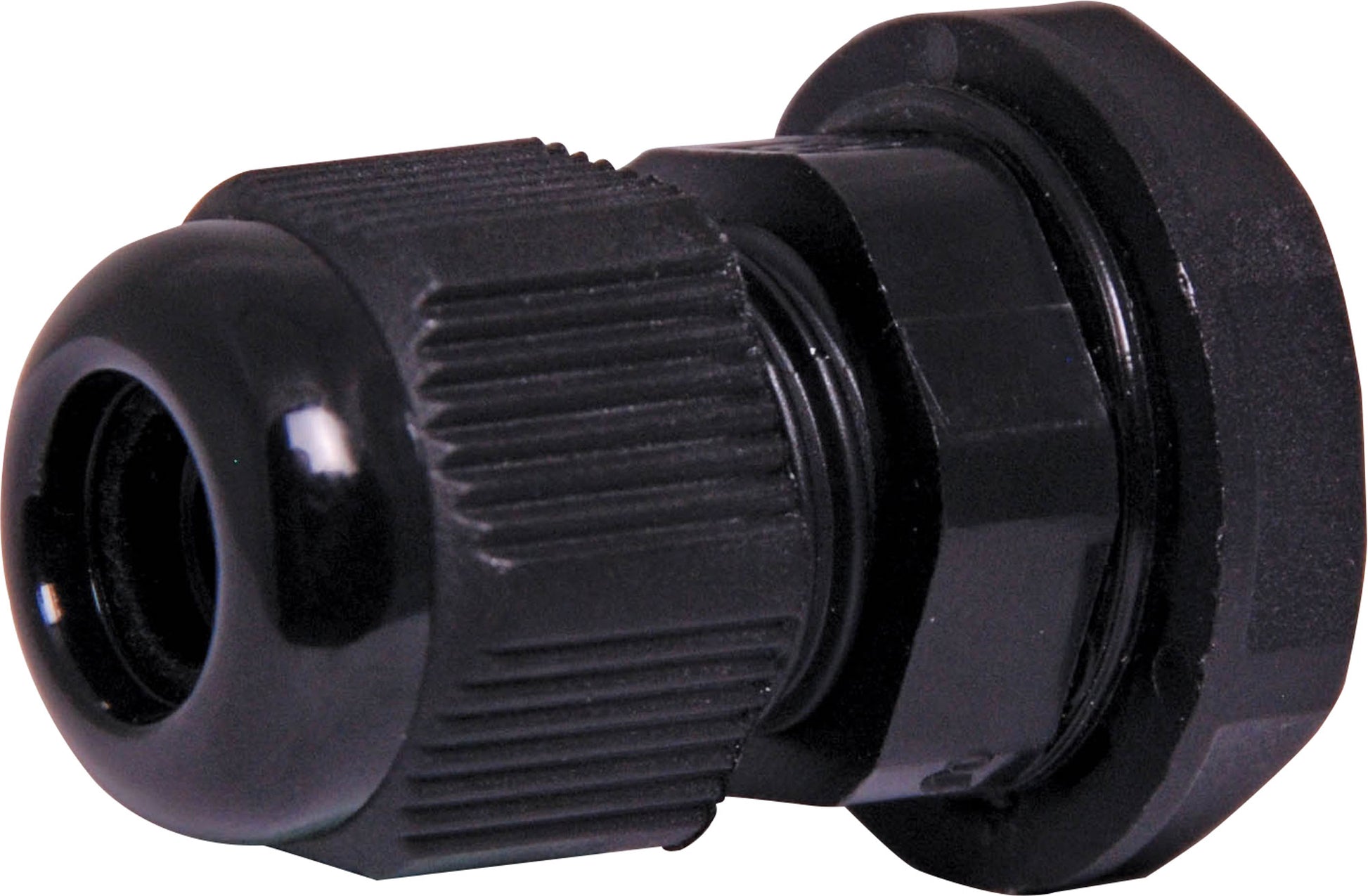

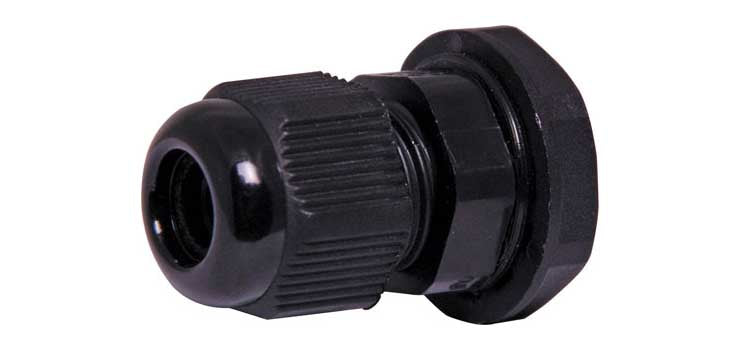

Cable Gland 6-12mm EG13.5/PG13.5 Black IP68 Nylon H4318A
Cable Gland 6-12mm EG13.5/PG13.5 Black IP68 Nylon H4318A
Regular price
$3.30
Regular price
Sale price
$3.30
Unit price
per
Taxes included.
Couldn't load pickup availability
PG13.5 size nylon cable gland with IP68 ingress protection rating. Multi-piece cable glands with rubber clamping ring for sealing cable apertures in weatherproof equipment or speaker enclosures. Standard gland suits cable diameter 6mm to 12mm. Mounting hole Ø 20mm.
Specifications
- Cable Size: 6 - 12mm
- Chassis Hole: 20mm
- Spanner Size: 24mm
- Colour: Black
- Material:PA (NYLON), UL 94
- Hermetic seal: NBR, EPDM
- O-Ring: EPDM
- Working temperature:
- - 40℃ to100℃ in static state
- Instantaneous heat resistance up to 120℃
- -20℃ to 80℃ in dynamic state
- Instantaneous heat resistance up to 100℃
