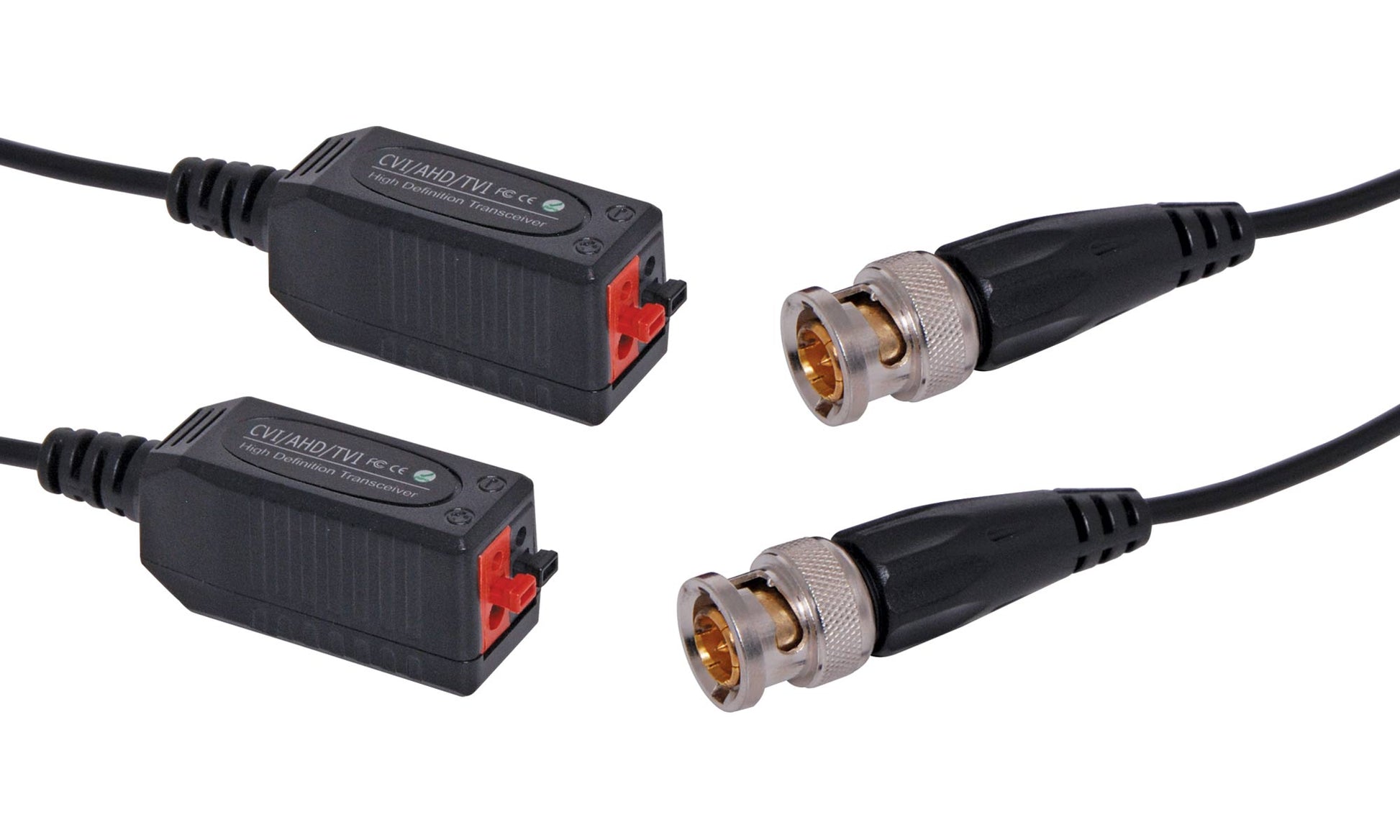

Camera Accessories Extender Composite UTP Pair S9244B
Camera Accessories Extender Composite UTP Pair S9244B
Regular price
$22.95
Regular price
Sale price
$22.95
Unit price
per
Taxes included.
Couldn't load pickup availability
Allows the transmission of a signal from a camera for up to 250m over standard Cat 5e UTP cable. No power required. Video only transmission up to 1080p. Sold in a pair.
Suitable for use with S 9280 16 Channel UTP receiver
Features
- Compatible with all HD-CVI, HD-TVI, HD-AHD
- Up to 450m for 720P CVI Cameras
- Up to 250m for 1080P CVI Cameras
- Up to 250m for 720P/1080P TVI Cameras
- Up to 350m for 720P/960P AHD Cameras
- Up to 250m for 1080P AHD Cameras
- NTSC, PAL and SECAM video formats
- No power required
- 60dB cross talk and noise immunity
- Compact size and easy installation
- Built-in transient suppression protection
Specifications
- Frequency Response: DC to 80Mhz
- Attenuation: 0.5dB
- CMRR: 60dB
- Surge Protection: 4KV, ESD: 8KV
- Connectors: Male BNC and "Press-Fit" terminal blocks
- Impedance: BNC 75ohms, Terminal 100ohms
- Working temperature: -10°C to 70°C
- Storage temperature: -30°C to 70°C
- Humidity: 0 to 95%
- Dimensions: 39 x 17 x 19mm (excluding connectors)
- Material: ABS Plastic
