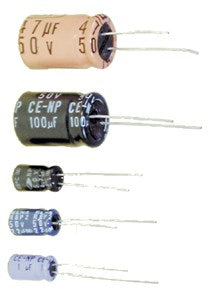

Capacitor Bipolar Electrolytic RB 2.2µf 50v RY6804
Capacitor Bipolar Electrolytic RB 2.2µf 50v RY6804
Regular price
$0.85
Regular price
Sale price
$0.85
Unit price
per
Taxes included.
Couldn't load pickup availability
Bipolar RB Electrolytic capacitors (non-polarised capactiors) which may be operated with either polarity are special constructions with two anodes connected in series. Ripple: 20mA
Specifications
| Capacitor type : Electrolytic |
| Polarised Capacitor : false |
| Item capacitance : 2.2µF |
| DC Voltage : 50V |
| Operating Temperature : 85°C |
| Height : 11mm |
| Diameter : 5mm |
| Packaged Volume : 0l |
| Packaged Weight : 0kg |
| Packaged Length : 0.5cm |
| Packaged Width : 0.5cm |
| Packaged Height : 3.8cm |
| Component Type : Electrolytic Capacitor |
| Pack Quantity : 1pc |
| Pitch : 2mm |
| Passive mount type : Through Hole |
| Passive connector type : Solder Legs |
| Component package : Radial |
| Passive number of legs : 2 count |
| Passive marking code : Printed |
