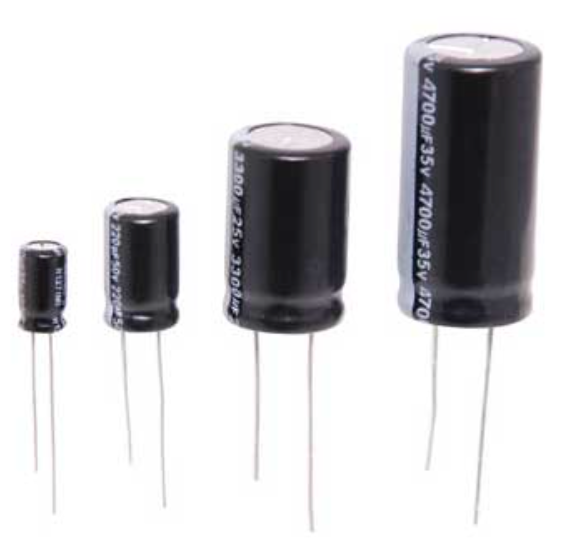

Capacitor Electrolytic 100uF 63V High Temp. PCB R4828

Capacitor Electrolytic 100uF 63V High Temp. PCB R4828

$0.90
$0.90
Sale Sold out
Taxes included.

High temperature rating (105°C ) for constant, reliable operation.
Sold individually.

Note: Sleeve colour may be black or green.

NOTE: Part numbers with a reel quantity listed can be ordered in both loose and "taped" packages. To order "taped" quantity, simply add a "T" to the part numbers provided eg: R4828 becomes RT4828.

Specifications

  • Tolerance: ±20%
  • Pitch: 5.0mm
  • Diameter: 10.0mm
  • Height: 12.0mm
  • Voltage: 63V DC
  • Surge Voltage: 79V DC
  • Ripple Current: 297mA
  • Temperature Range: -55°C to +105°C

    *Specifications are subject to change without notice.
