Capacitor Polyester MKT 100nF 100VDC RM7125
Capacitor Polyester MKT 100nF 100VDC RM7125
Regular price
$0.60
Regular price
Sale price
$0.60
Unit price
per
Taxes included.
Couldn't load pickup availability

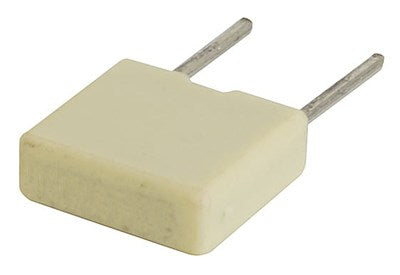

Miniature Polyester Capacitor
Metallised polyester capacitors are used in applications that require long term stability at a relatively low cost. These type offer good solidity, a large range of values at an economical price, and are the most widely used capacitor for general purpose.
Specifications
| Capacitor type : MKT |
| Polarised Capacitor : false |
| AC Voltage rating : 40V |
| Item capacitance : 100nF |
| Capacitance tolerance : 10% |
| DC Voltage : 100V |
| Width : 7.5mm |
| Height : 6.5mm |
| Depth : 2.5mm |
| Packaged Volume : 0l |
| Packaged Weight : 0kg |
| Packaged Length : 2.6cm |
| Packaged Width : 0.3cm |
| Packaged Height : 0.8cm |
| Component Type : Polyester Capacitor |
| Pack Quantity : 1pc |
| Pitch : 5mm |
| Passive mount type : Through Hole |
| Passive connector type : Solder Legs |
| Component package : MKT |
| Passive number of legs : 2 count |
| Passive marking code : Number code |
