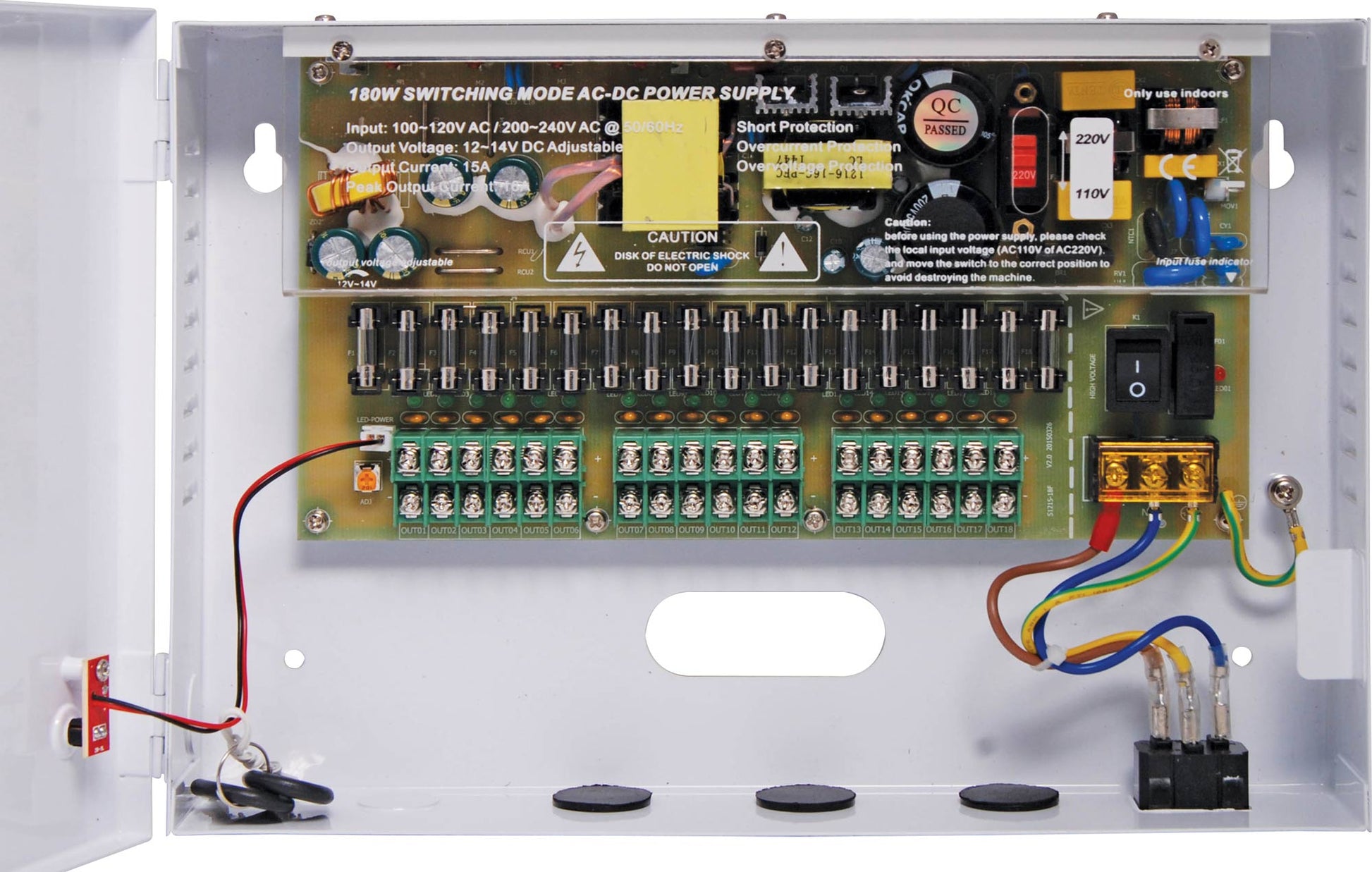

Designed for powering up to a maximum of 18 12V DC powered CCTV cameras. Each output is individually fused and can be set on or off via internal jumpers. Outputs are fuse protected at 1A and may be parallelled together if higher current is required for your chosen camera.
Each output is protected to prevent spikes and surges damaging connected cameras. Screw terminals are provided for each circuit. Output current limiting and over voltage protection is included. Overall total max load is 15A (max 1.2A per output). Includes power lead. Indoor use only. Dimensions: 290W x 210H x 55Dmm.
Features
- Short circuit protection
- Over current protection
- Over voltage protection
Specifications
- Input Voltage: AC 100~240V 50-60Hz
- Input fuse: 5A 250V
- Output Voltage: DC 12V ADJ 12-14V
- Output Current: 15A
- Ripple current: 100mV
- Dimensions: 290W x 210H x 55D mm
