Now supplied with 22uF capacitor for line monitoring, plus screw terminals for easy installation.

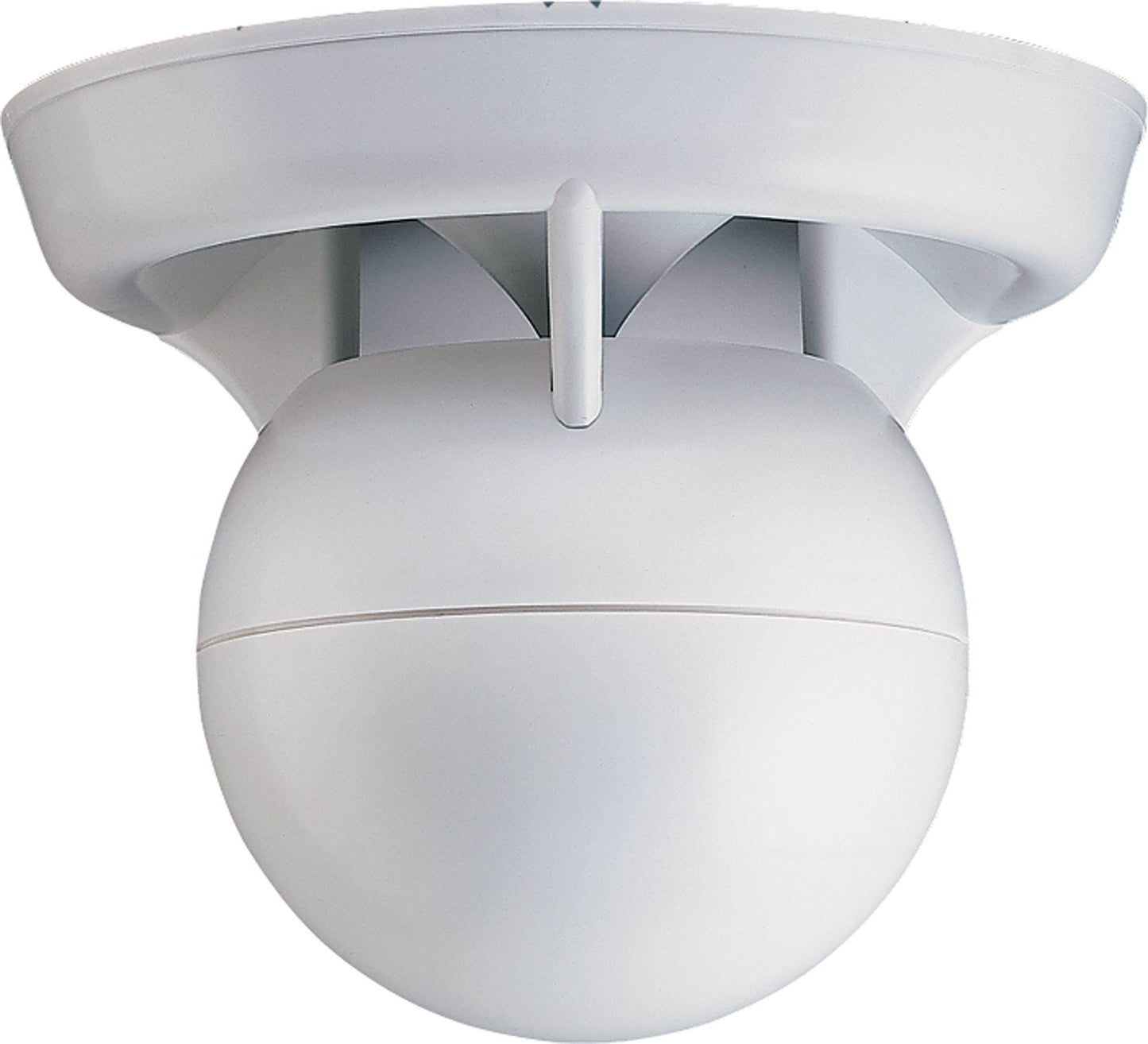

The spherical speaker enclosure and parabolic shaped reflector combine to create an omni-directional loud speaker, allowing 360° horizontal sound dispersion. With an unobtrusive modern design, these ball speakers are designed for use where traditional ceiling mounted speakers are difficult or impractical to install. Used in large open areas with very high raked, suspended, concrete, or exposed ceilings.
Typically these type of ceilings will be found in churches, gymnasiums, train stations, airports, factories, markets, shopping centres, indoor swimming pools etc. Fitted with high efficiency drivers, they are ideal for high ambient noise locations and offer extremely articulate reproduction making them ideal for both background music and paging applications. Supplied complete with stainless steel wire suspension kit allowing the speaker to be installed from 1 fixing point. This model is fitted with a high efficiency 100 volt line matching transformer.
This speaker requires a jack chain (sold separately see accessories below) to support its weight when installed.
Specifications
- Driver Size: 165mm (6.5") coaxial
- Power Taps: 7, 15 & 35W
- SPL 1W @ 1m: 92dB
- Frequency Resp.: 80Hz - 16kHz, ±6dB
- Coverage: 180° Vertical, 360° Horizontal
- Weight: 4kg
- Material: Structural Polystyrene
- Operating temperature: -25°C to 70°C
- Dimensions: 380W x 290H mm
