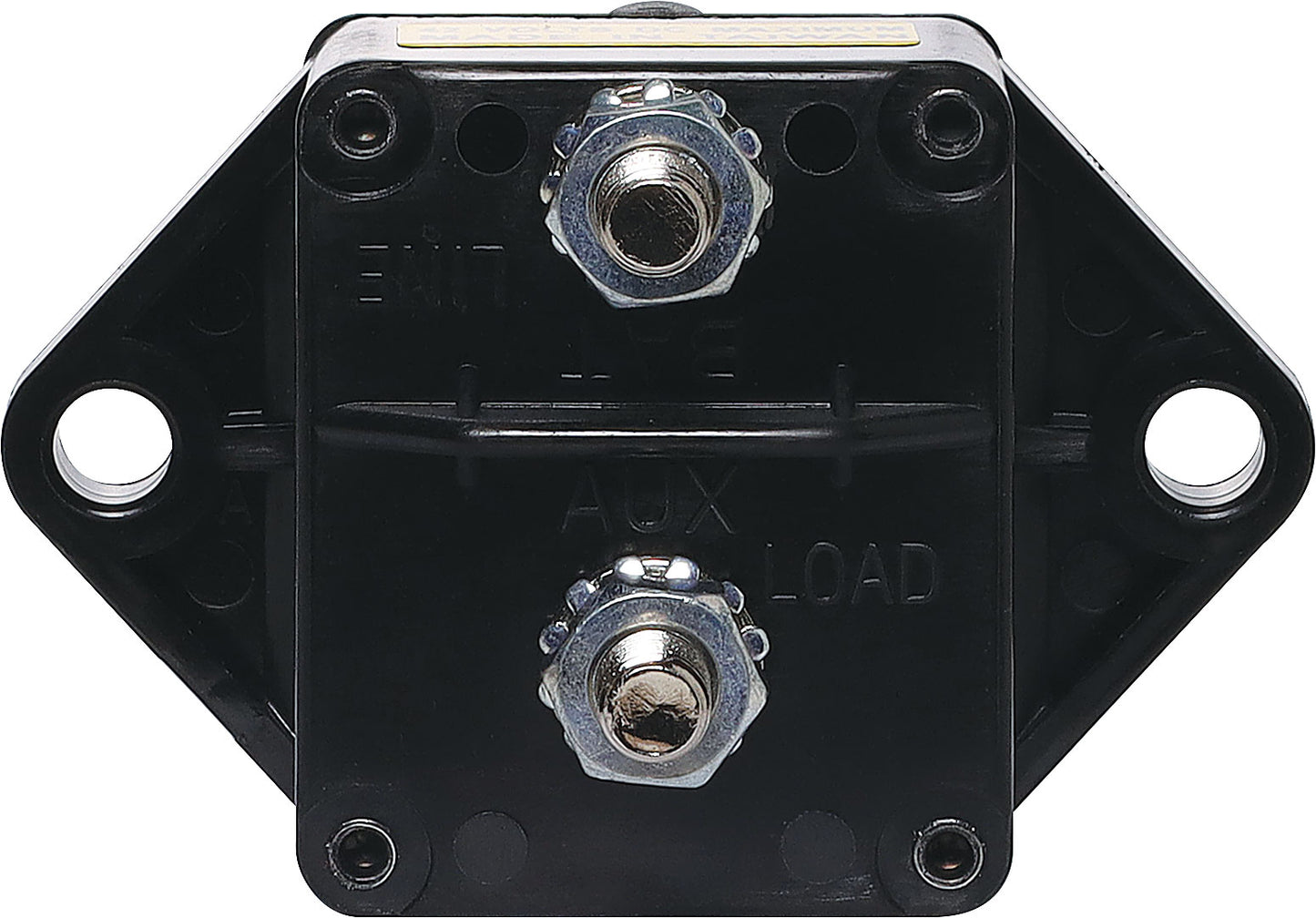

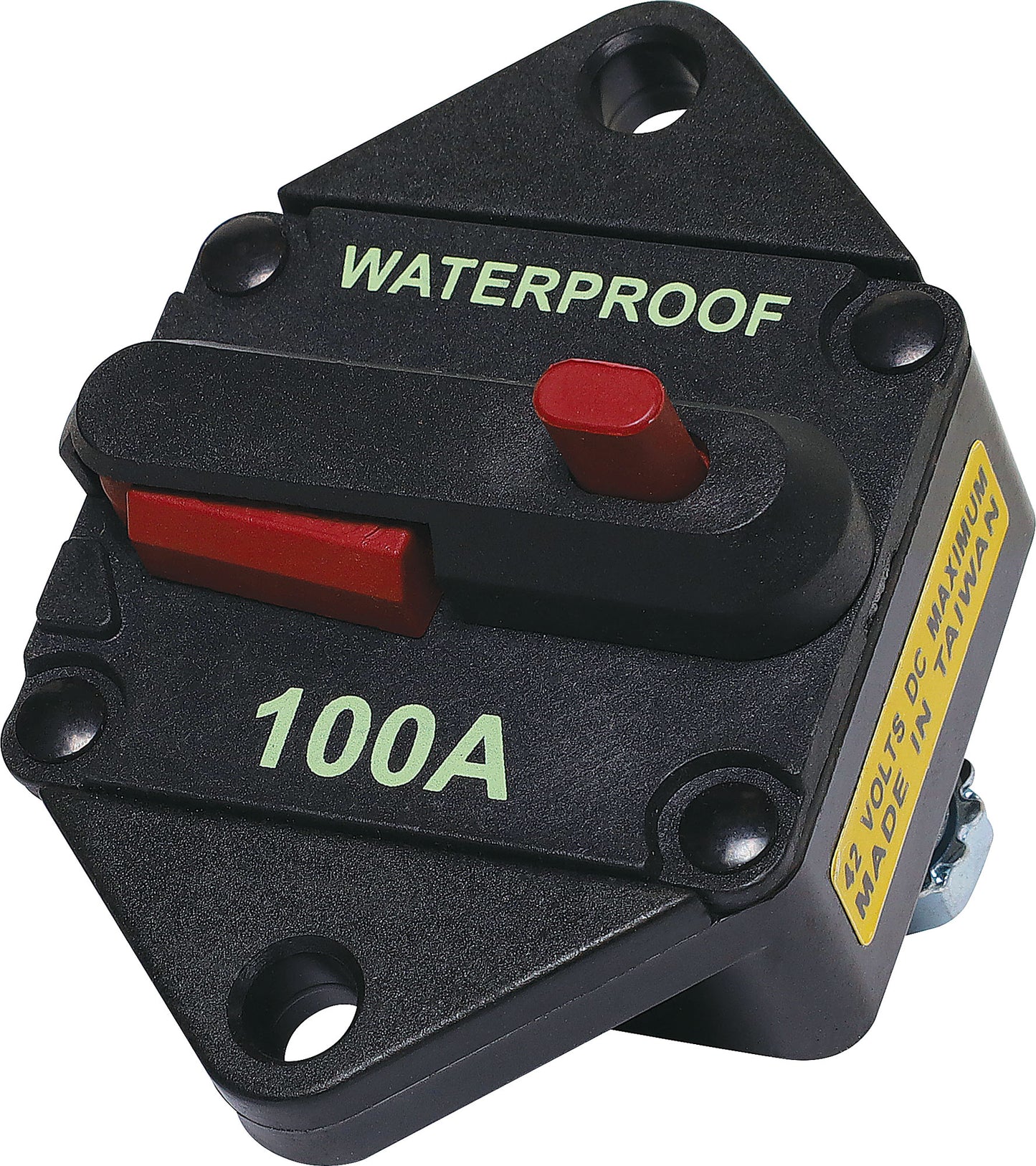

This 100A high current panel mount circuit breaker is ideal for use in 12V or 24V DC power systems. It features a IP67 weatherproof casing with M6 terminal bolts for connection to power cabling. The breaker can be easily reset using the red lever switch. Typically used in auxiliary and accessory circuits in automotive and marine applications. Also suitable for battery charger designs. Tested to SAE J1625 & SAE J1171 (ignition protected).
Specifications
- Max. Voltage: 42V DC
- Rating: 100A DC
- Interrupt Rating: 3000A @ 30V DC
- IP Rating: IP67
- Operating Temperature: -32°C to 92°C
- Testing: SAE J1625, SAE1171 (ignition protected)
- Material: UL94V-0
- RoHS approved.
- External Dimensions: 70 x 50 x 35mm
