Circuit Breaker 10A 12V Stud Type Surface Mount S5567
Circuit Breaker 10A 12V Stud Type Surface Mount S5567
Regular price
$9.95
Regular price
Sale price
$9.95
Unit price
per
Taxes included.
Couldn't load pickup availability

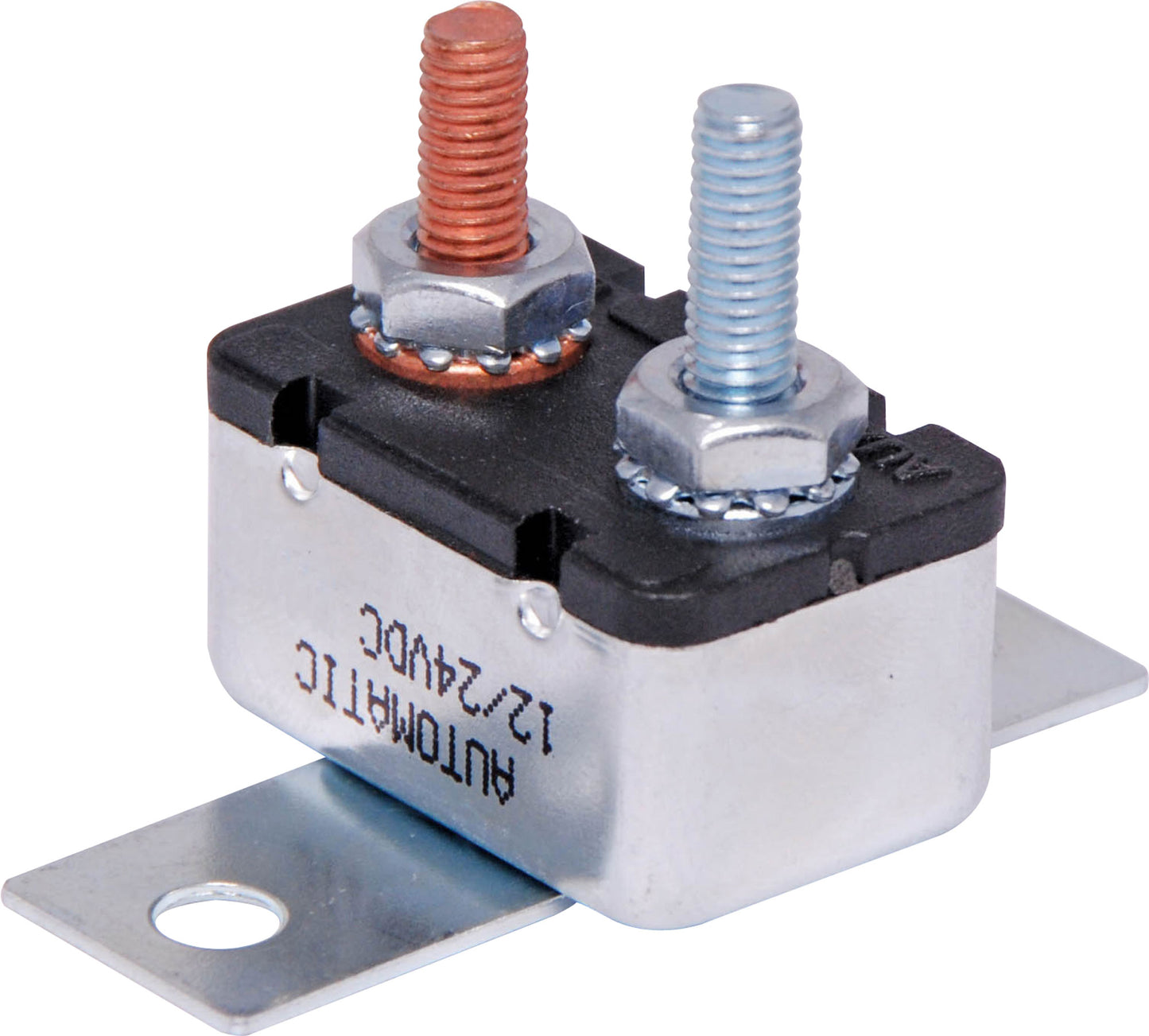

Single pole stud type 10A DC circuit breaker with surface mounting tabs. Ideal for use in vehicles. Auto reset. Current ratings at 12V/24V DC. Meets SAE J553 standard. #10 - 32 UNF stud connection (Approx 4.75mm diameter). Includes hardware.
Specifications
- Type: Automatic reset
- Terminals: 2 x #10 - 32 UNF stud.
- Rating: 10A @ 12/24V DC.
- Operating temperature: -23°C to 65°C
- Application: Battery chargers, vehicles.
- Test compliance: SAE standard J553 (type 1)
